Tplink EAP615-Wall Nigeria

Rating

Tplink EAP615-Wall Nigeria

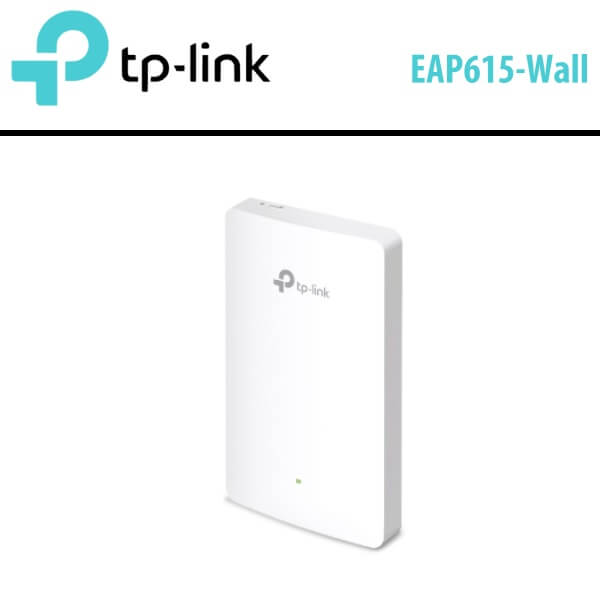

The Tplink EAP615-Wall Nigeria AX1800 Wireless Dual-Band Gigabit Wall Plate Access Point expands your business’s Wi-Fi coverage and cut through high-density spaces.

Description

Tplink EAP615-Wall Access Point Nigeria

The Tplink EAP615-Wall Nigeria AX1800 Wireless Dual-Band Gigabit Wall Plate Access Point expands your business’s Wi-Fi coverage and cut through high-density spaces. Designed to discreetly blend into most environments when mounted onto a wall junction box using the included kit, this dual-band 802.11ax Wi-Fi access point delivers up to 1775 Mb/s wireless speeds over the 2.4 GHz and 5 GHz frequencies. Both power and data are carried to the EAP615-Wall through a single cable by connecting its 802.3at PoE+ complaint Gigabit Ethernet port to a compatible network switch or router. Three Gigabit Ethernet ports are also available, one of which supports up to 12W PoE+ passthrough, to connect wired devices such as computers, VoIP phones, printers, and more. Your wireless network is protected with enterprise-class security and you can manage it from almost anywhere using the Omada cloud platform.

Features

Ceiling and Wall Mountable

The Tplink EAP615-Wall Nigeria features a design that blends into most environments when mounted on a wall junction box using the included kit.

Fast, Reliable Wi-Fi

This 802.11ax Wi-Fi access point includes powerful internal antennas that are designed to overcome high-density environments, using beamforming, MU-MIMO, load balancing, and band steering technologies to efficiently deliver up to 1775 Mb/s over the 2.4 GHz and 5 GHz wireless frequencies.

Omada Cloud

The Tplink EAP615-Wall Nigeria has cloud-based Omada platform allowing you to configure, manage, and monitor all your supported network devices from a single interface, which can be accessed virtually anywhere at any time.

Specifications

HARDWARE FEATURES

Interface
  • Uplink : 1× 10/100/1000 Mbps Ethernet Port
  • Downlink : 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input. The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/at PoE
Power Consumption
  • EU : 10W (802.3at PoE, PoE Out off)
  • US : 11.5W (802.3at PoE, PoE Out off)
Dimensions 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antenna 2 Dual-Band Antennas

  • 2.4 GHz : 2× 3 dBi
  • 5 GHz : 2× 4 dBi
Mounting Wall Plate Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate
  • 5 GHz : Up to 1201 Mbps
  • 2.4 GHz : Up to 574 Mbps
Wireless Functions
  • 16 SSIDs (Up to 8 SSIDs on each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • Seamless Roaming†
  • Beamforming
  • MU-MIMO
  • Rate Limit
  • Load Balance
  • Airtime Fairness
  • Band Steering
  • Reboot Schedule
  • Wireless Schedule
  • RADIUS Accounting
  • MAC Authentication
  • Wireless Statistics
  • Static IP/Dynamic IP
Wireless Security
  • Captive Portal Authentication†
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • VLAN
  • Rogue AP Detection
  • 802.1X Support
  • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power CE :

  • < 20 dBm (2.4 GHz, EIRP)
  • < 23 dBm (5 GHz, EIRP)FCC :
  • < 21 dBm (2.4 GHz)
  • < 21 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall
  • Installation Guide
  • Mounting Kits
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
