Tplink EAP610-Outdoor Nigeria

Rating

Tplink EAP610-Outdoor Nigeria

Tplink EAP610-Outdoor Nigeria features a superior WiFi 6 Speeds delivering delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology higher network efficiency.

Description

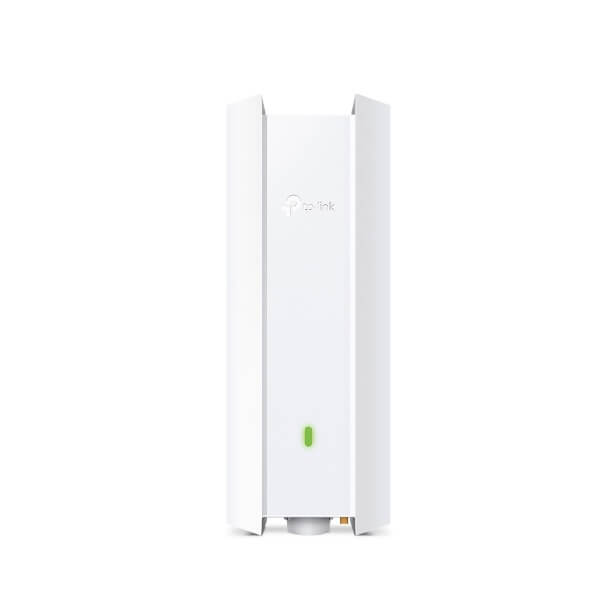

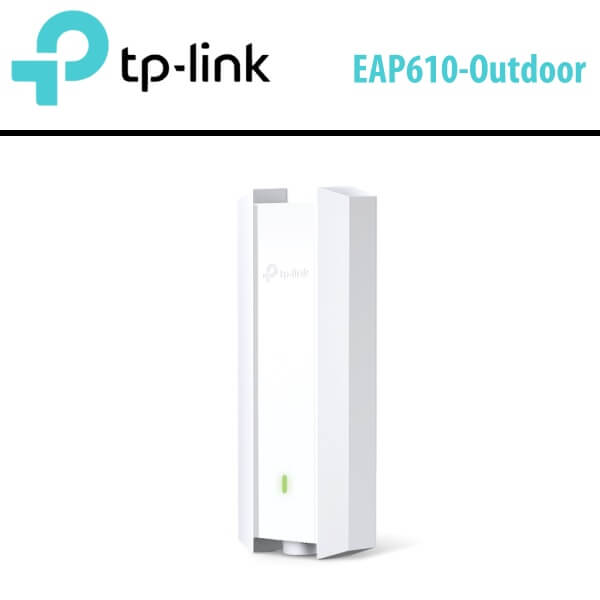

Tplink EAP610-Outdoor Access Point Nigeria

Tplink EAP610-Outdoor Nigeria features a superior WiFi 6 Speeds delivering delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology higher network efficiency. Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO Long-Range Coverage. The Tplink EAP610-Outdoor Nigeria has dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure Omada Mesh Technology. It enables wireless connectivity between access points for extended range and flexible deployment. Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points Tplink EAP610-Outdoor Nigeria integrates into Omada SDN for cloud access and remote management.

Features

  • Superior WiFi 6 Speeds: Delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology
  • Higher Network Efficiency: Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO
  • Long-Range Coverage: Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure
  • Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment
  • Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management

Dual-Band WiFi 6 Connectivity

Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps, providing higher data rates on both 5 GHz and 2.4 GHz bands for demanding multi-user scenarios, such as outdoor swimming pools, cafés, and amusement parks.

Long-Range Coverage

Tplink EAP610-Outdoor Nigeria professional antennas equipped with high-power amplifiers utilize WiFi 6 technology to provide strong and expansive wireless coverage to various outdoor environments.

Connect Numerous Devices

OFDMA and MU-MIMO greatly improve multi-user efficiency to provide simultaneous connections for dozens of clients in large open areas.

Seamless Integration into Omada SDN Platform

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Easy Deployment & Higher Performance by Omada Mesh

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance

Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming

Tplink EAP610-Outdoor Nigeria ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal

IP67 Weatherproof Enclosure for Outdoor Environments

Tplink EAP610-Outdoor Nigeria is totally resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments.

Multiple PoE Options for Easy Installation

The Tplink EAP610-Outdoor Nigeria AP supports both 802.3at PoE+ and Passive PoE power supply. It can be either powered by a PoE switch or the provided PoE adapter for convenient deployment.

Easy Management with the Omada App

Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Specifications

HARDWARE FEATURES

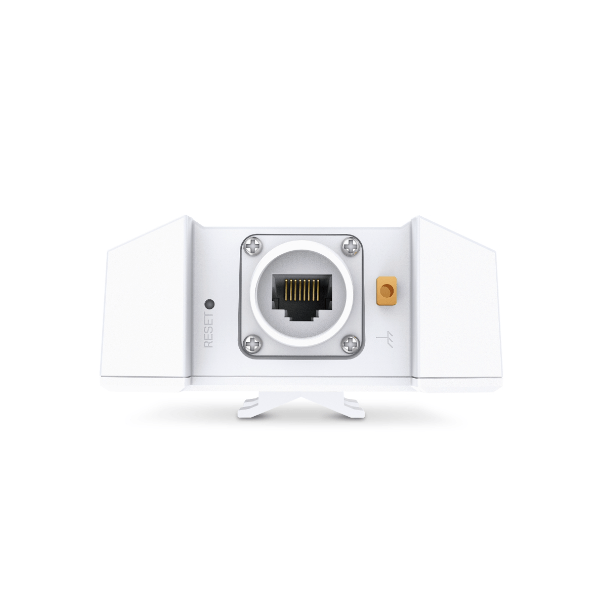

Interface 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Button Reset
Power Supply
  • 802.3at PoE
  • 48V/0.5A Passive PoE (PoE Adapter Included)
Power Consumption
  • EU : 12.5W (802.3at PoE or Passive PoE)
  • US : 14.7W (802.3at PoE or Passive PoE)
Dimensions ( W x D x H ) 280.4×106.5×56.8 mm (without antenna & mounting kit)
Antenna
  • 2.4 GHz : 2× 4 dBi
  • 5 GHz : 2× 5 dBi
Weatherproof Enclosure IP67

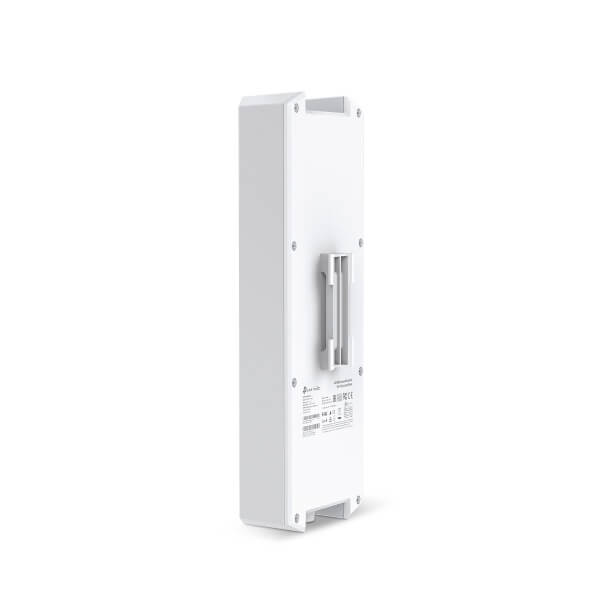

Mounting Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz, 5 GHz
Signal Rate
  • 802.11ax : 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
  • 802.11ac : 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
  • 802.11n : 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
  • 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11b : 1, 2, 5.5, 11 Mbps
  • 802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Transmit Power
  • CE : <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
  • FCC : <25 dBm (2.4 GHz), <25 dBm(5 GHz)
Wireless Functions
  • 1024-QAM
  • 4× Longer OFDM Symbol
  • OFDMA
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS (WMM)
  • MU-MIMO
  • Omada Mesh
  • Seamless Roaming
  • Band Steering
  • Load Balance
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • Access Point EAP610-Outdoor
  • Passive PoE Adapter
  • Power Cord
  • Mounting Kits
  • Waterproof Kits
  • Waterproof Antenna
  • Installation Guide
Environment
  • Operating Temperature : -30–70 ℃ (-22–158 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing



Datasheet Download
