Tplink EAP245 Nigeria

Rating

Tplink EAP245 Nigeria

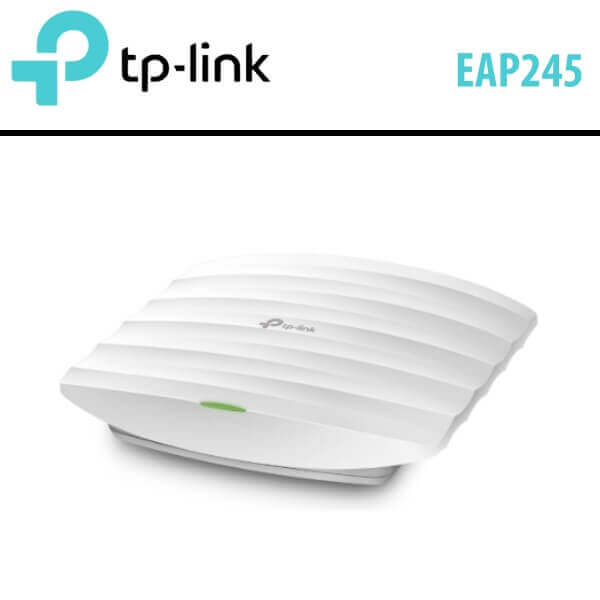

Tplink EAP245 Nigeria AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point TP-Link Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management.

Description

Tplink EAP245 Access Point Nigeria

Tplink EAP245 Nigeria AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point TP-Link Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

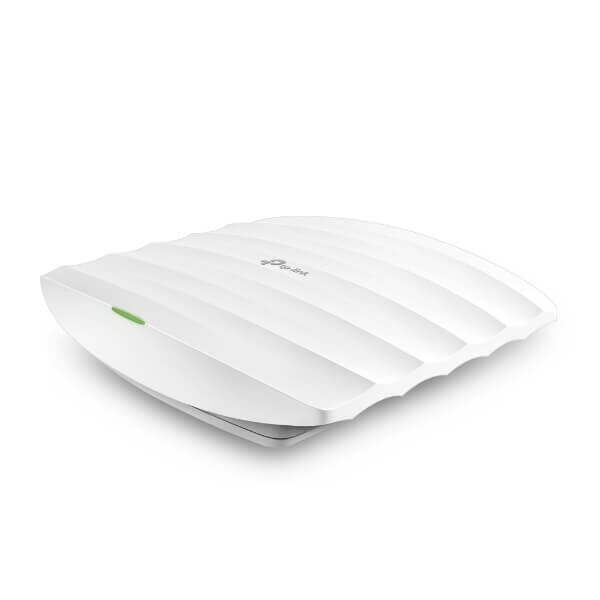

Tplink EAP245 Nigeria access point features a ceiling mount design making it aesthetically pleasing whether mounted to the wall or the ceiling. Installation has also been simplified as the EAP245 is PoE-compatible, eliminating the need to run additional power to this device. Once installed, you can take advantage of features like EAP controller software to manage hundreds of EAPs and the Captive portal to implement an authentication method for Wi-Fi guests.

Features

  • Fast Dual-Band Wi-Fi :  Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.
  • Integrated into Omada SDN : Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management : Cloud access and Omada app for ultra-convenience and easy management.
  • Seamless Roaming : Even video streams and voice calls are unaffected as users move between locations.
  • PoE Support : Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
  • Secure Guest Network : Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Advanced Wireless Tech : Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.

Superior Wi-Fi Speeds and Performance

Tplink EAP245 Nigeria is highly reliable with QCA enterprise-class chipsets, dedicated high-power amplifier, and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands.

Omada SDN—Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralized Cloud Management

Tplink EAP245 Nigeria is 100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Secure Guest Network with Facebook Wi-Fi and SMS Login

Tplink EAP245 Nigeria provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

 Multiple PoE Options for Easy Installation

Tplink EAP245 Nigeria supports both 802.3af PoE and Passive PoE power supply, which can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible.

Seamless Roaming

802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Specifications

HARDWARE FEATURES

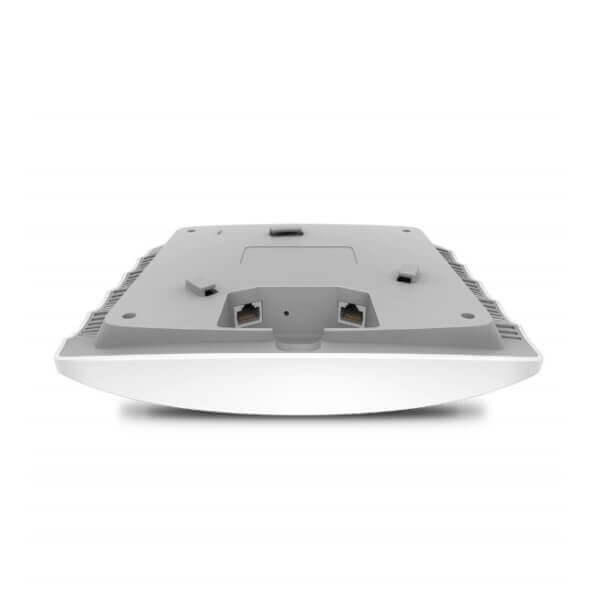

Interface 2 × Gigabit Ethernet (RJ-45) Ports
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/at PoE or
48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 12.3 W
Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in.
(206 × 182 × 37 mm)
Antenna Type Internal Omni

  • 2.4GHz : 3 × 4dBi
  • 5GHz : 3 × 4dBi
Mounting Ceiling or Wall Mount
(Mounting kit included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate
  • 5GHz : Up to 1300Mbps
  • 2.4GHz : Up to 450Mbps
Wireless Functions
  • Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • MU-MIMO (Wave 2)
  • Seamless Roaming
  • Band Steering
  • Load Balance
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • 64/128/152-bit WEP / WPA / WPA2-Enterprise,
  • WPA-PSK / WPA2-PSK
Transmission Power FCC :

  • ≤25dBm(2.4GHz)
  • ≤27dBm(5GHz)
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Cloud Access Yes
omada.tplinkcloud.com
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification FCC, RoHS
Package Contents
  • 5 EAP245 Access Points
  • 5 Mounting Kits
  • 1 Installation Guide
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing



Datasheet Download
