Tplink EAP230-Wall Nigeria

Rating

Tplink EAP230-Wall Nigeria

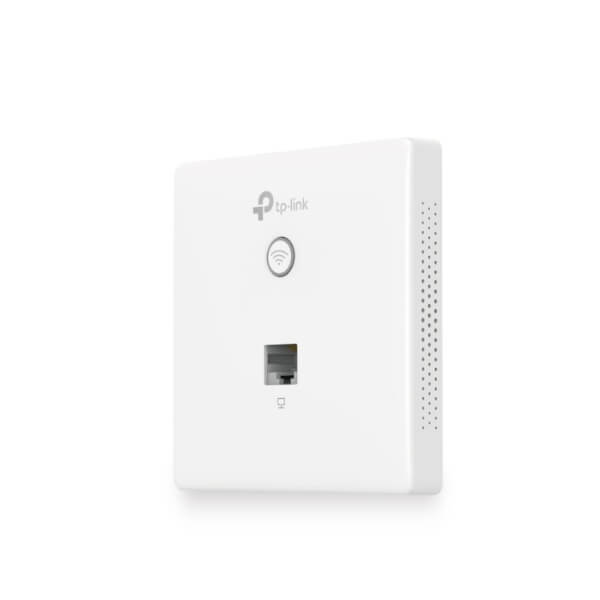

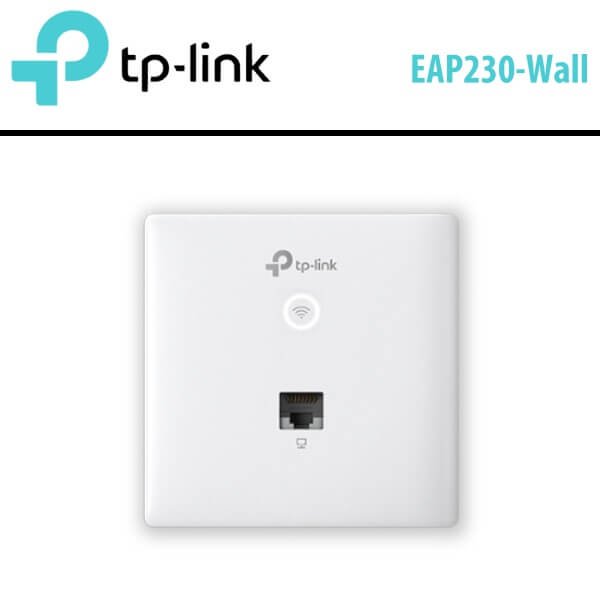

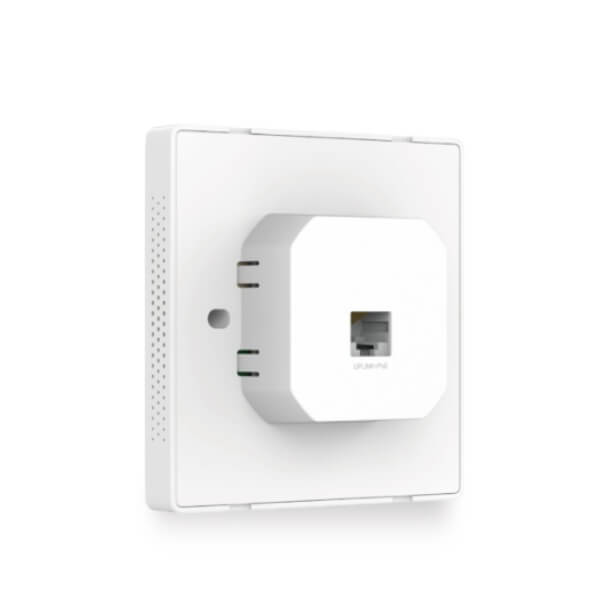

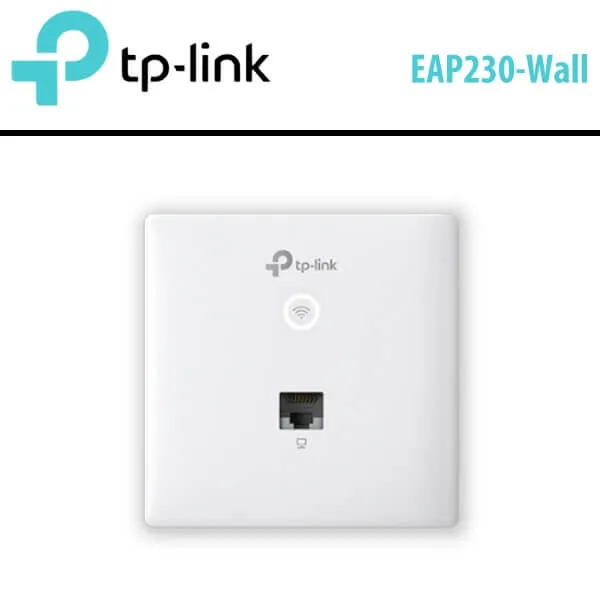

Tplink EAP230-Wall Nigeria Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.

Description

Tplink EAP230-Wall Access Point Nigeria

Tplink EAP230-Wall Nigeria Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. The device in each room provides a sophisticated, high-speed WI-FI connection for every user. With 802.111ac Wave technology Tplink EAP230-Wall Nigeria allow multiple users to access the Internet simultaneously. Speeds up to 1200 Mbps and 2.4GHz and 5GHz wireless bands provide simultaneous high-speed Internet access for multiple devices.

Features

  • Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.
  • Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra-convenience and easy management.
  • Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
  • Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.
  • Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

MU-MIMO + Dual-Band: faster connection for more devices

Tplink EAP230-Wall Nigeria boasts of 802.111ac Wave technology enables multiple users to access the Internet simultaneously. Speeds up to 1200 Mbps and 2.4GHz and 5GHz wireless bands provide simultaneous high-speed Internet access for multiple devices.

Versatile design that blends in with any decor

The size and shape of the Tplink EAP230-Wall Nigeria is reminiscent of a light switch or power socket, so that it fits perfectly into any room.

High speed gigabit port

The AP is equipped with a Gigabit port for the fastest possible wired transmission.

Hassle-free deployment with Power over Ethernet

PoE 802.3af / 802.3at support allows Tplink EAP230-Wall Nigeria to operate without additional cabling. Connect existing Ethernet cables to transmit both power and Internet to the access point.

Omada SDN – a smarter cloud solution for business networks

Omada ‘s Sofrtware Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways. Guaranteeing a powerful business network with higher performance, higher security and higher reliability.

Specifications

HARDWARE FEATURES
Interface
  • Uplink : 1× 10/100/1000 Mbps Ethernet Port
  • Downlink : 1× 10/100/1000 Mbps Ethernet Port
Physical Security Lock No
Button LED/Wi-Fi Button, RESET
Power Supply 802.3af/802.3at PoE
Power Consumption 7 W
Dimensions ( W x D x H ) 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)
Dimensions 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)
Antenna 2 Dual-Band Antennas

  • 2.4 GHz : 2× 4 dBi
  • 5 GHz : 2× 3.6 dBi
Mounting Wall Plate Mounting
Hardware Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11n/g/b/ac
Frequency 2.4 GHz and 5 GHz
Signal Rate
  • 5 GHz : Up to 867 Mbps
  • 2.4 GHz : Up to 300 Mbps
Wireless Functions
  • 16 SSIDs (Up to 8 SSIDs on each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • Load Balance
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
  • MU-MIMO
  • Band Steering
  • Beamforming
Wireless Security
  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Local LAN port based VLAN
  • Rogue AP Detection
  • 802.1X Support
  • 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Transmission Power CE :

  • ≤20 dBm (2.4 GHz, EIRP)
  • ≤23 dBm (5 GHz, EIRP)
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, RoHS
Package Contents
  • Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall
  • Installation Guide
  • Mounting Screw
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing



Datasheet Download
