Tplink EAP225-Outdoor Nigeria

Rating

Tplink EAP225-Outdoor Nigeria

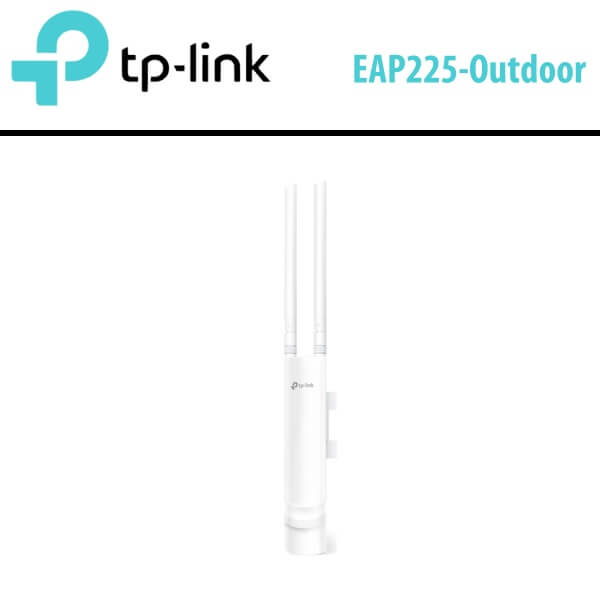

The Tplink EAP225-Outdoor Nigeria is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Categories: ,

Description

Tplink EAP225-Outdoor Access Point Nigeria

The Tplink EAP225-Outdoor Nigeria is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands. With high transmission power and high gain omnidirectional antennas, Tplink EAP225 Nigeria provides stable wireless coverage at a range up to 200m at 2.4GHz and 300m+ at 5GHz in outdoor settings.

Features

  • Durable, weatherproof enclosure for outdoor Wi-Fi applications Up to 1200Mbps with 2×2 MIMO technology
  • Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
  • Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
  • High transmission power and high gain antennas provide a long-range coverage area
  • Cloud centralized management and Omada app for ultra-convenience and easy management
  • Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
  • 3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation

Superior Wi-Fi Performance and Long-Range Coverage

The Tplink EAP225 Nigeria has dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO2 technology, ensure superior Wi-Fi performance and long-range coverage over 2.4GHz and 5GHz wireless bands.

Seamless Roaming

802.11k and 802.11v help client select access point automatically with the best signal to facilitate seamless transitions when move. This allows streaming communication like VoIP and video conferences uninterrupted.

Specially Designed Weatherproof Enclosure for Outdoor Environment

Tplink EAP225 Nigeria is rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against the harsh outdoor condition.

Excellent Hardware Designs

With special design of its antenna, appearance, power options and installation methods, Tplink EAP225 Nigeria Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas

Tplink EAP225 Nigeria is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Cloud Centralized Management

Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

Specifications

HARDWARE FEATURES

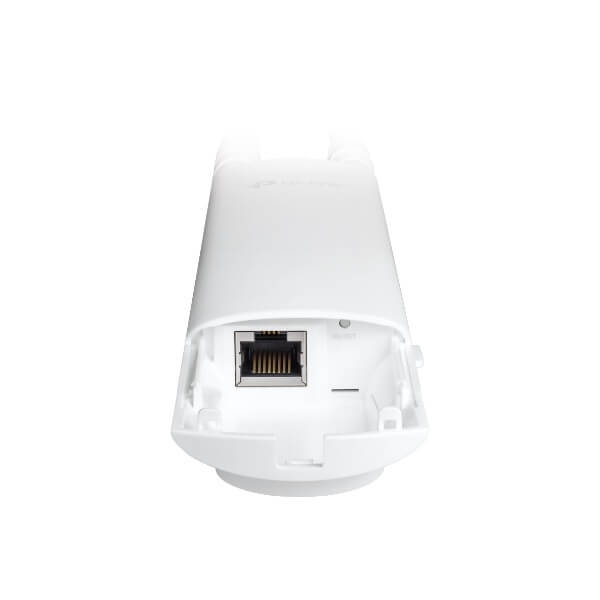

Interface Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE)
Button Reset
Power Supply 802.3af/A PoE
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 10.5W
Dimensions ( W x D x H ) 8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm)
Antenna 2.4GHz : 2 * 3dBi, 5GHz : 2 * 4dBi
Weatherproof Enclosure IP65

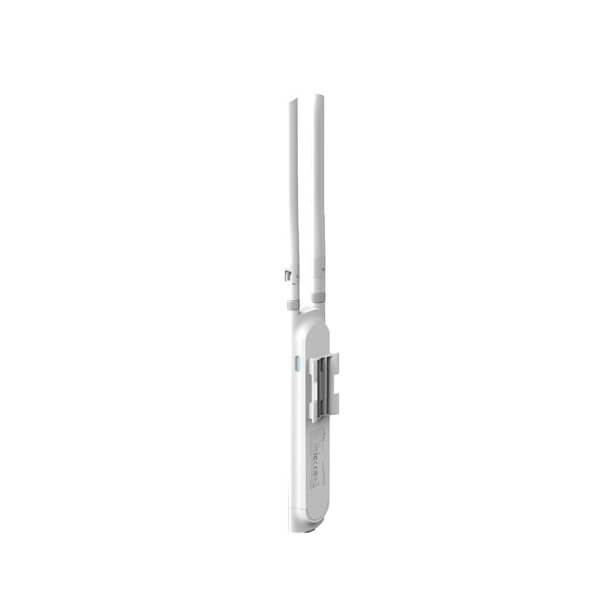

Mounting Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz, 5GHz
Signal Rate
  • 802.11ac :
    • 5G : 6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80)
    • 2.4G : 78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
  • 802.11n : 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
  • 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11b : 1, 5.5, 11Mbps
  • 802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions
  • Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control （Adjust Transmit Power on dBm）
  • QoS(WMM)
  • MU-MIMO
  • Airtime Fairness
  • Beamforming
  • Band Steering
  • Load Balance
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
Transmission Power
  • CE : <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
  • FCC : <23 dBm (2.4 GHz), <22 dBm(5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Omada Controller Software Yes
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE、FCC、RoHS
Package Contents
  • AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
  • EAP225-Outdoor
  • Power Adapter
  • Mounting Kits
  • Installation Guide
Environment
  • Operating Temperature : -30℃~70℃ (-22℉~158℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing



Datasheet Download
