Tplink EAP225 Nigeria

Rating

Tplink EAP225 Nigeria

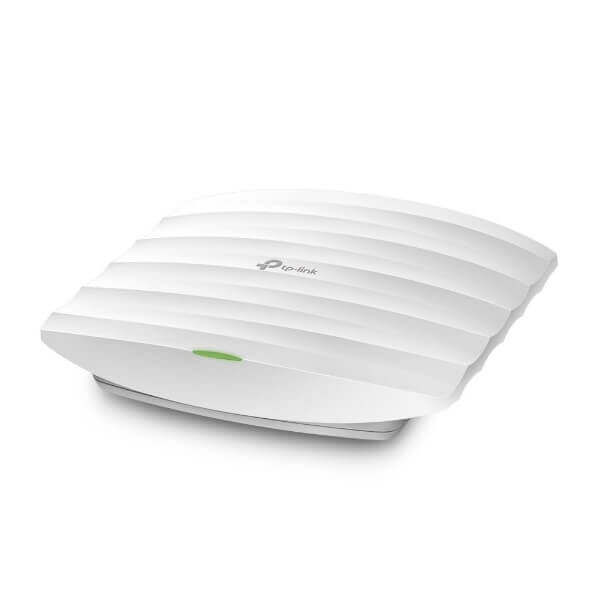

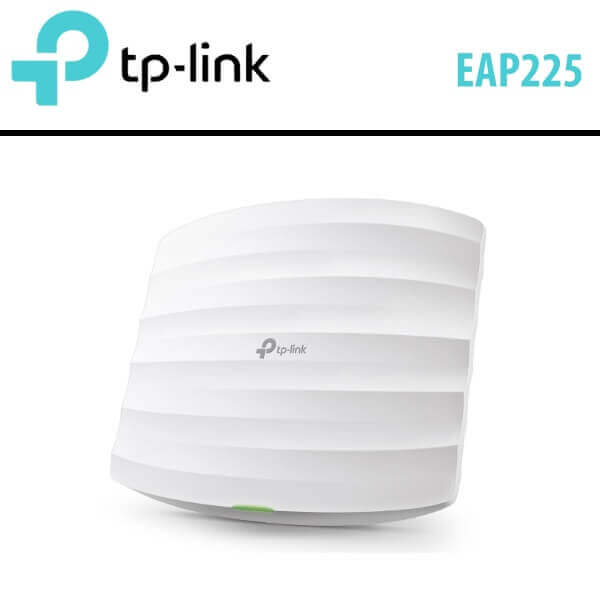

The Tplink EAP225 Nigeria is a AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point providing an affordable Business-Class 802.11ac MU-MIMO Wi-Fi Solution.

Description

Tplink EAP225 Ceiling Mount Access Point Nigeria

The Tplink EAP225 Nigeria is a AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point providing an affordable Business-Class 802.11ac MU-MIMO Wi-Fi Solution. Tplink EAP225 Nigeria supports both 802.3af/at PoE and Passive PoE power supply, which can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

Features

  • Fast Dual-Band Wi-Fi : Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.
  • Integrated into Omada SDN : Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management : Cloud access and Omada app for ultra-convenience and easy management.
  • Seamless Roaming : Even video streams and voice calls are unaffected as users move between locations.
  • PoE Support : Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
  • Secure Guest Network : Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Advanced Wireless Tech : Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies

Omada SDN—Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralized Cloud Management

Tplink EAP225 Nigeria is 100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Secure Guest Network with Facebook Wi-Fi and SMS Authentication

The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business

Multiple PoE Options for Easy Installation

Tplink EAP225 Nigeria supports both 802.3af/at PoE and Passive PoE power supply, which can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

Specifications

HARDWARE FEATURES

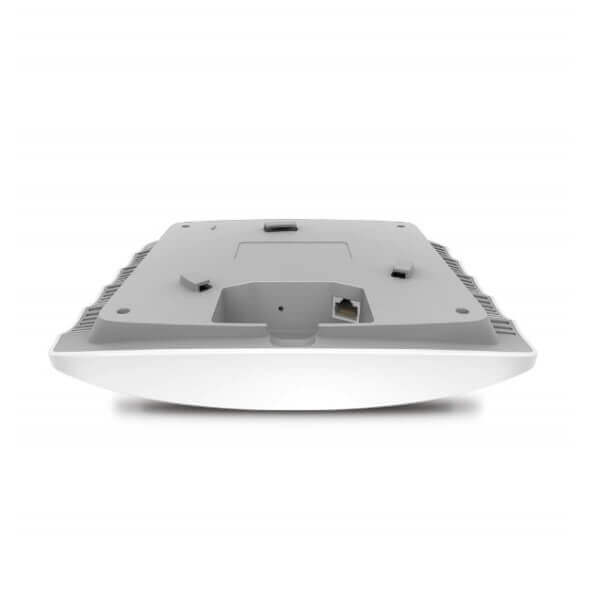

Interface Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)
Physical Security Lock Yes
Button Reset
Power Supply
  • 802.3af/at PoE
  • 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption
  • EU : 10.5 W
  • US : 12.6 W
Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Antenna Type 3 Internal Omni

  • 2.4 GHz : 4 dBi
  • 5 GHz : 5 dBi
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate
  • 5 GHz : Up to 867 Mbps
  • 2.4 GHz : Up to 450 Mbps
Wireless Functions
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • Seamless Roaming*
  • Omada Mesh*
  • Band Steering
  • Load Balance
  • MU-MIMO
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authentication*
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
Transmission Power CE :

  • ≤20 dBm(2.4 GHz, EIRP)
  • ≤23 dBm(5 GHz, EIRP)

FCC :

  • ≤24 dBm(2.4 GHz)
  • ≤22 dBm(5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
  • Passive PoE Adapter
  • Power Cord
  • Mounting Kits
  • Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing



Datasheet Download
