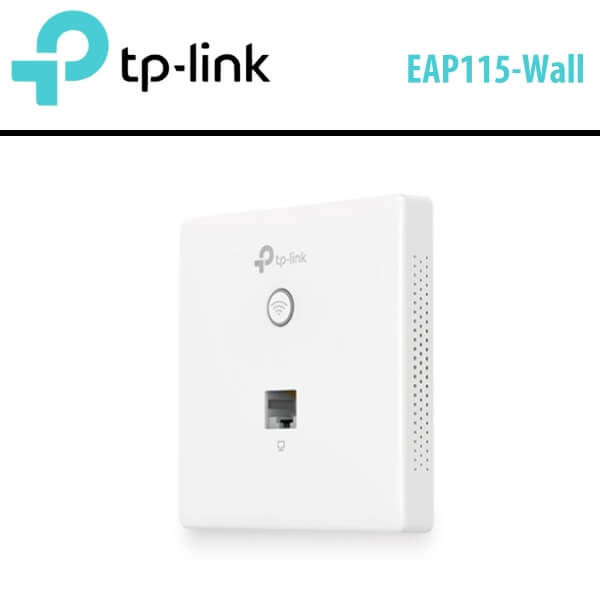

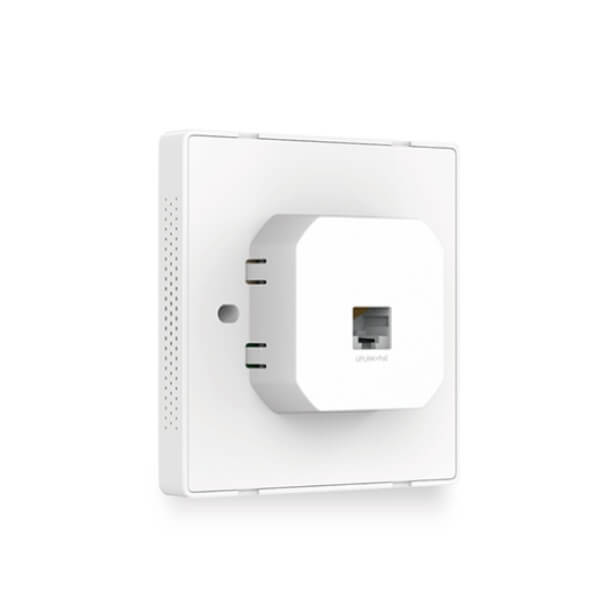

Tplink EAP115-Wall Nigeria

Rating

Tplink EAP115-Wall Nigeria

Tplink EAP115-Wall Nigeria is a 300Mbps Wireless N Wall-Plate Access Point. The Tplink EAP115-Wall blend seamlessly into any business setting with a refined, minimalist appearance. It slim design includes casing that is just 11 mm in thickness.

Description

Tplink EAP115-Wall Access Point Nigeria

Tplink EAP115-Wall Nigeria is a 300Mbps Wireless N Wall-Plate Access Point. The Tplink EAP115-Wall blend seamlessly into any business setting with a refined, minimalist appearance. It slim design includes casing that is just 11 mm in thickness. This Access Point supports PoE 802.3af, 300Mbps Wi-Fi Speed, Simply Managed by Cloud Access and Omada app

Features

  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra-convenience and easy management.
  • Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.
  • Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af PoE support.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Perfect Design

The Tplink EAP115-Wall Nigeria blends seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that’s just 11 mm in thickness.

Effortless Deployment

With 802.3af Power over Ethernet supported there’s no need for additional wiring. Simply plug in existing Ethernet cables and you’re ready to go.

Complete Wireless Coverage

An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.

Omada SDN—Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Specifications

HARDWARE FEATURES
INTERFACE 10/100Mbps Ethernet (RJ-45) Port *2
PHYSICAL SECURITY LOCK
BUTTON LED/Wi-Fi Button、RESET
POWER SUPPLY PoE(IEEE 802.3af)
POWER CONSUMPTION 2.8 W
DIMENSIONS ( W X D X H ) 3.4×3.4×1.2 in. (86.8*86.8*30.2 mm)
ANTENNA TYPE Internal 2*1.8dBi Omni
MOUNTING Wall Plate Mounting
HARDWARE WATCH DOG Yes
WIRELESS FEATURES
WIRELESS STANDARDS IEEE 802.11n/g/b/a
FREQUENCY 2.4GHz
SIGNAL RATE
  • 11n : Up to 300Mbps(dynamic)
  • 11g : Up to 54Mbps(dynamic)
  • 11b : Up to 11Mbps(dynamic)
TRANSMIT POWER CE:
<15dBm(2.4GHz)
WIRELESS FUNCTIONS
  • Multiple SSIDs(Up to 8 SSIDs)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • Load Balance
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
WIRELESS SECURITY
  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Local LAN port based VLAN
  • Rogue AP Detection
  • 802.1X Support
  • 64/128/152-bit WEP / WPA / WPA2-Enterprise,
  • WPA-PSK / WPA2-PSK
MANAGEMENT
OMADA APP Yes
CENTRALIZED MANAGEMENT
  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
CLOUD ACCESS Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
EMAIL ALERTS Yes
LED ON/OFF CONTROL Yes
MANAGEMENT MAC ACCESS CONTROL Yes
SNMP v1,v2c
SYSTEM LOGGING LOCAL/REMOTE SYSLOG Local/Remote Syslog
SSH Yes
WEB-BASED MANAGEMENT HTTP/HTTPS
L3 MANAGEMENT Yes
MULTI-SITE MANAGEMENT Yes
MANAGEMENT VLAN Yes
OTHERS
CERTIFICATION CE, RoHS
PACKAGE CONTENTS
  • 300Mbps Wireless N Wall-Plate Access Point EAP115-Wall
  • Installation Guide
  • Mounting Screw
SYSTEM REQUIREMENTS Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
ENVIRONMENT
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing



Datasheet Download
