Tplink EAP115 Nigeria

Rating

Tplink EAP115 Nigeria

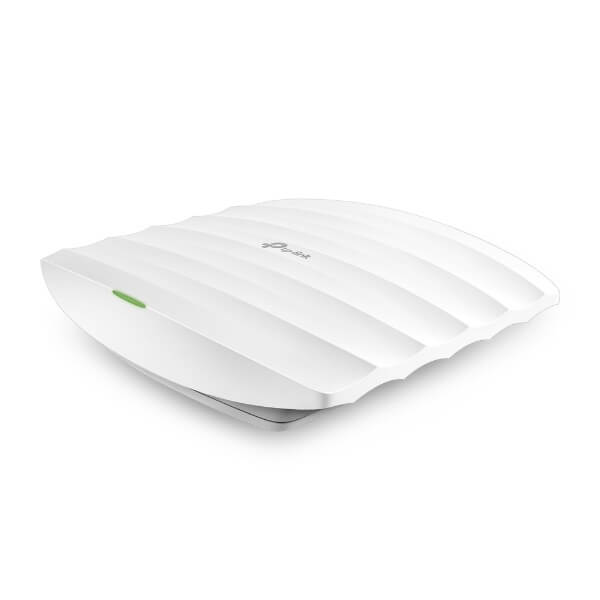

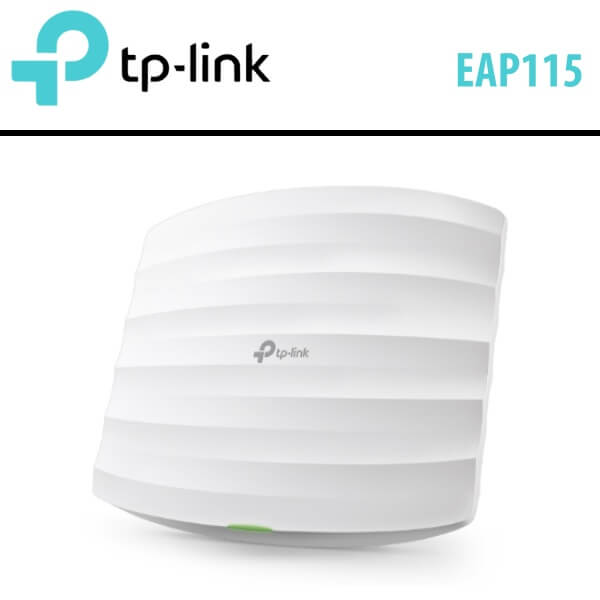

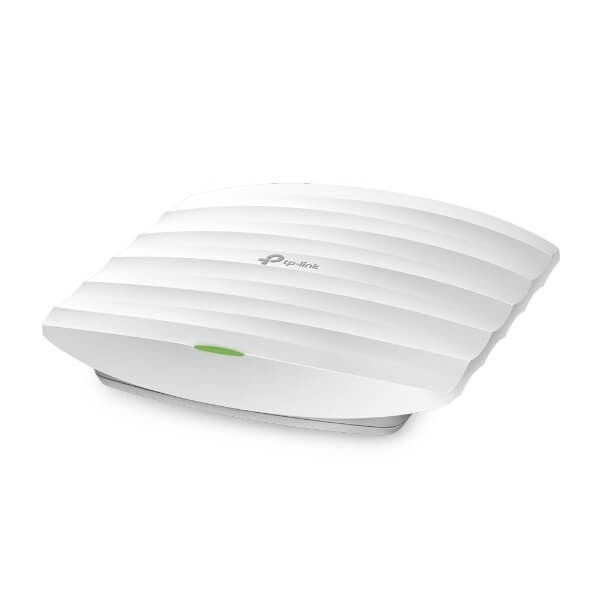

The Tplink EAP115 Nigeria is an affordable, scalable business Wi-Fi solution featuring easy installation on any wall or ceiling Access Point. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter.

Description

Tplink EAP115 Access Point Nigeria

The Tplink EAP115 Nigeria is an affordable, scalable business Wi-Fi solution featuring easy installation on any wall or ceiling Access Point. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system. Tplink EAP115 Nigeria allow you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

Features

  • Integrated into Omada SDN : Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management : Cloud access and Omada app for ultra-convenience and easy management.
  • PoE Support :  Supports Power over Ethernet (802.3af/at) for convenient deployment.
  • Easy Installation :  Simple mounting design for easy attachment to a wall or ceiling.
  • Secure Guest Network : Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Load Balancing : Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.
  • Scheduling : Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.

Omada SDN—Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralized Cloud Management

Tplink EAP115 Nigeria is 100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Guest Network with Facebook and SMS Support

The Tplink EAP115 Nigeria captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Timesaving and Flexible Deployment

The Tplink EAP115 Nigeria is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Tplink EAP115 Nigeria allow you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

Specifications

HARDWARE FEATURES
Interface Fast Ethernet (RJ-45) Port *1(Support IEEE802.3af PoE)
Button Reset
Power Supply PoE or external 9VDC/0.6A power supply
Power Consumption 2.8W
Dimensions ( W x D x H ) 7.5×6.8×1.2 in (189.4×172.3×29.5mm)
Dimensions 7.5×6.8×1.2 in. (189.4×172.3×29.5mm)
Antenna Type Internal 2* 4dBi Omni
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4-2.4835GHz
Signal Rate
  • 11n : Up to 300Mbps(dynamic)
  • 11g : Up to 54Mbps(dynamic)
  • 11b : Up to 11Mbps(dynamic)
Reception Sensitivity
  • 300M : -71dBm@10% PER
  • 150M : -75dBm@10% PER
  • 54M : -78dBm@10% PER
  • 11M : -93dBm@8% PER
  • 6M : -92dBm@10% PER
  • 1M : -96dBm@8% PER
Wireless Functions
  • Multiple SSIDs (Up to 8 SSIDs)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power CE :
≤19dBm
FCC :
≤26dBm
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
EAP Controller Software
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • 300Mbps Wireless N Ceiling Mount Access Point EAP115
  • Power Adapter
  • Mounting Kits,
  • Installation Guide
System Requirements Microsoft Windows 10/8/7/Vista/XP
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing



Datasheet Download
