Tplink EAP110 Nigeria

Rating

Tplink EAP110 Nigeria

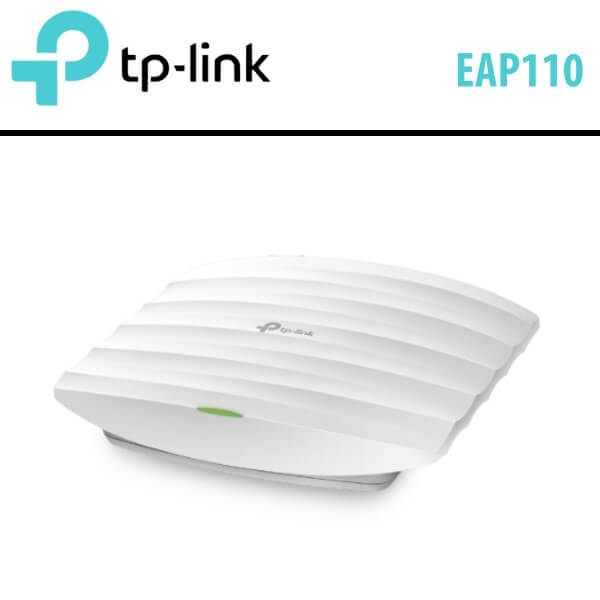

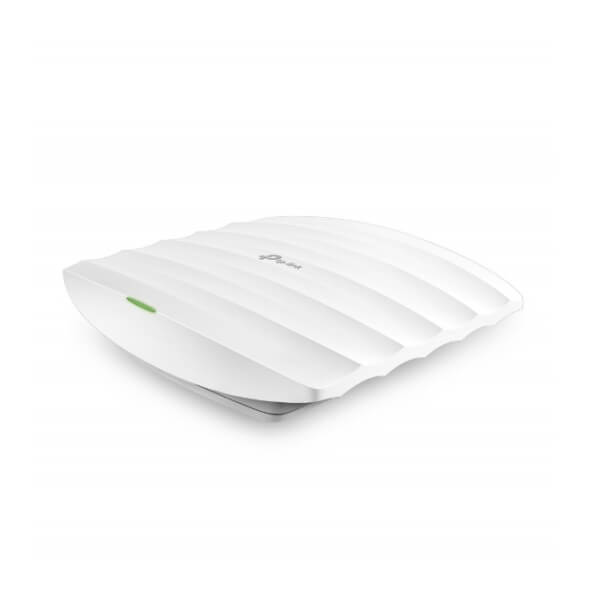

Tplink EAP110 Nigeria is a 300Mbps Wireless N Ceiling Mount Access Point that provides a business-class wireless network solution that’s flexible, manageable, secure, easy-to-deploy.

Description

Tplink EAP110 Access Point Nigeria

Tplink EAP110 Nigeria is a 300Mbps Wireless N Ceiling Mount Access Point that provides a business-class wireless network solution that’s flexible, manageable, secure, easy-to-deploy. Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Features

  • Cloud centralized management and Omada app for ultra-convenience and easy management
  • Supports passive PoE for convenient installation up to 100meters
  • Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
  • Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
  • Multi-SSID divides multiple wireless networks for different users
  • Enterprise class Wi-Fi security help to decrease network security threats
  • Supports management vlan for an enhanced network management

Flexible Placement – Easy mounting design & PoE

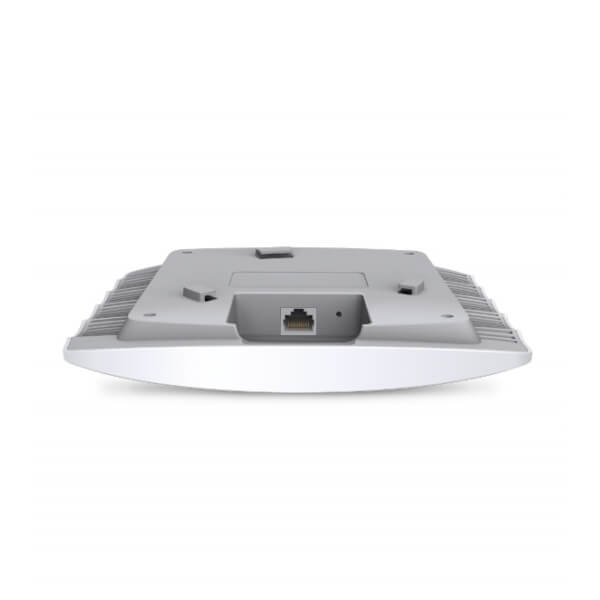

The Tplink EAP110 Nigeria features an elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.

Free Cloud Centralized Management

Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Captive Portal – Guest Network with Facebook and SMS Support

Tplink EAP110 Nigeria boasts of captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Easy Management with the Omada App

Setting up Tplink EAP110 Nigeria is easy. Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Specifications

HARDWARE FEATURES
Interface Fast Ethernet (RJ-45) Port x 1(Support Passive PoE)
Physical Security Lock Kensington Lock Slot
Button Reset
Power Supply 24V Passive PoE
(+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 2.8 W
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.5×6.8×1.2 in (189.4×172.3×29.5mm)
Dimensions 7.5×6.8×1.2 in.
(189.4×172.3×29.5mm)
Antenna Type Internal 2 x 4dBi omni-directional
Mounting Ceiling /Wall Mounting
(mounting kit included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4-2.4835GHz
Signal Rate
  • 11n : Up to 300Mbps(dynamic)
  • 11g : Up to 54Mbps(dynamic)
  • 11b : Up to 11Mbps(dynamic)
Reception Sensitivity
  • 300M : -71dBm@10% PER
  • 150M : -75dBm@10% PER
  • 54M : -78dBm@10% PER
  • 11M : -93dBm@8% PER
  • 6M : -92dBm@10% PER
  • 1M : -96dBm@8% PER
Wireless Functions
  • Multiple SSIDs (Up to 8 SSIDs)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (adjustable in 1 dBm step)
  • QoS(WMM)
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power 21dBm max.
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Omada Controller Software Yes
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification FCC, RoHS
Package Contents
  • 300Mbps Wireless N Ceiling Mount Access Point EAP110
  • Passive PoE Adapter
  • Power Cord
  • Mounting Kit
  • Installation Guide
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing



Datasheet Download
