Tplink CPE610 Nigeria

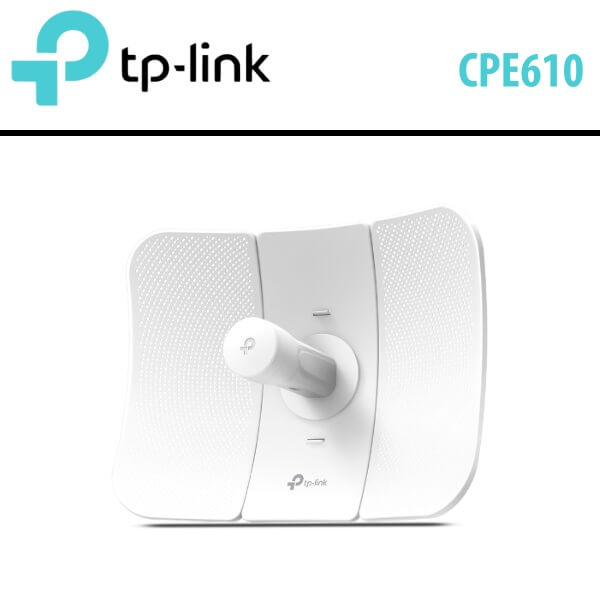

The Tplink CPE610 Nigeria Access Point is the ideal device for long-distance outdoor Wi-Fi network transmission to let you access the internet even outside your home.

Category:

Description

Tplink CPE610 Outdoor Wi-Fi Nigeria

The Tplink CPE610 Nigeria Access Point is the ideal device for long-distance outdoor Wi-Fi network transmission to let you access the internet even outside your home. This access point features a 23 dBi high-gain directional 2×2 MIMO Cassegrain antenna and the dedicated metal reflector for impressive network extension, a Stable Structural Design to withstand windy conditions, and a Pharos Control Centralized Management System to manage various functions through one PC.

Features

  • 5GHz 300Mbps 23dBi Outdoor CPE
  • Up to 300Mbps on 5GHz wireless data rates
  • 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance wireless transmission up to 30km
  • Excellent beam directivity, improved latency and noise cancellation
  • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
  • Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
  • TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
  • Pharos Control gives administrators a free, centralized management system
  • Passive PoE supports to allow flexible deployment and convenient installation

Professional-standard 23dBi Directional Antenna for Long-range Wireless Transmission

With 23dBi high-gain directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector, Tplink CPE610 Nigeria provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps 23dBi Outdoor CPE610 an ideal choice and cost effective solution for outdoor wireless networking transmission up to 30 km*2.

Stable Structural Design and Flexible Installation

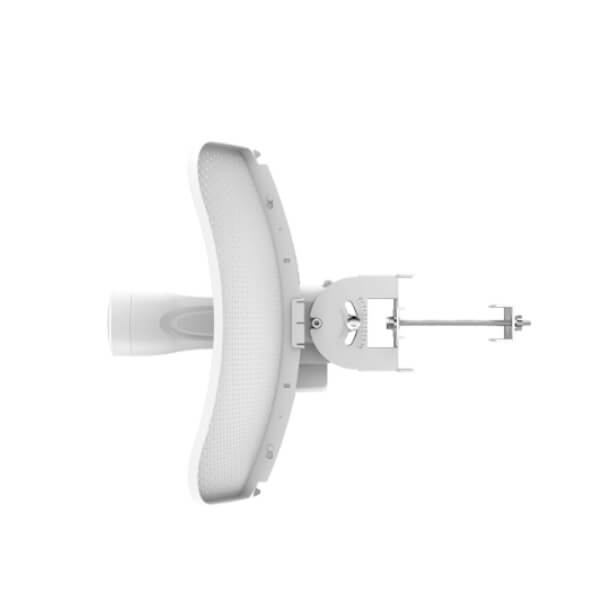

Tplink CPE610 Nigeria comes with Snap-lock parts making assembly simple and convenient. Included also is pole mount kits and the freedom of three-axis alignment facilitate flexible installation and also, Sturdy design ensures stability in windy conditions

Compact and Lightweight Packaging

Tplink CPE610 Nigeria features small and lightweight boxes that benefit shipping, logistics and retail.

Pharos Control – Centralized Management System

Tplink CPE610 Nigeria comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS – provides an alternative management method, and allows professionals to access more detailed configurations.

Specifications

HARDWARE FEATURES
Processor Qualcomm 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM,8MB Flash
Interface
  • 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
  • 1 Reset Button
Power Supply
  • Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
  • Voltage range: 16-27VDC
Power Consumption 7.41 W
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain 23dBi
Antenna Beamwidth 9°(Azimuth), 7°(Elevation)
Protection
  • 15KV ESD Protection
  • 6KV Lightning Protection
Enclosure
  • Material: Outdoor PC stabilized plastic
  • Weatherproof: IP65 water and dust proof design
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds
  • Up to 300Mbps (40MHz,Dynamic)
  • Up to 144.4Mbps (20MHz,Dynamic)
  • Up to 72.2Mbps (10MHz,Dynamic)
  • Up to 36.1Mbps (5MHz,Dynamic)
Frequency 5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmit Power Max. 25dBm (Adjustable power by 1dBm)
SOFTWARE FEATURES
Network Configuration
  • WAN: Static/Dynamic/PPPoE/L2TP/PPTP
  • LAN: Static/Dynamic/DHCP
  • Forwarding: ALG/UPnP/Virtual Server/Port Trigger
  • Security: SPI Firewall/ Ping Forbidden/DoS Protection
  • Access Control
  • Static Routing
  • Bandwidth Control
  • IP & MAC Binding
Wireless Configurations
  • Pharos MAXtream TDMA Technology
  • Selectable Channel Width: 5/10/20/40MHz
  • Auto Channel Selection
  • Transmit Power Control
  • Dynamic Frequency Selection(DFS)
  • WDS Enable/Disable
  • Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
  • 64/128/152-bit WEP Encryption
  • SSID Broadcast Enable/Disable
  • Multi-SSID with VLAN Tagging(AP Mode only)
  • Distance/ACK Timeout Setting
  • Wireless MAC Address Filter
  • Wireless Advanced:
  • Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management
  • Discovery and Remote Management via Pharos Control application
  • HTTP/HTTPS Web-based management
  • System log
  • SNMP Agent(v2c)
  • Ping Watch Dog
  • Dynamic DDNS
  • SSH Server
System Tools
  • Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory
  • Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
  • Spectrum Analyzer
  • Speed Test
  • Ping
  • Traceroute
System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
POE ADAPTER FEATURES
Dimensions(W x D x H) 85.8×43.9×29.7 mm
Interfaces
  • 1 AC Jack with Earth Ground
  • 1 10/100Mbps Shielded Ethernet Port (Power + Data)
  • 1 10/100Mbps Shielded Ethernet Port (Data)
Button Remote Reset Button
Power Status LEDs Green
Input 100-240VAC, 50/60Hz
Output 24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency >84.29%
Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTHERS
Certification CE, FCC, IC, RoHS, IP65
Package Contents
  • Outdoor Wireless CPE
  • 24V 0.5A Passive PoE Adapter
  • Pole Mounting Straps
  • AC Power Cord
  • Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment
  • Operating Temperature: -40℃~70℃ (-40℉~158℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~95% non-condensing
