Tplink Archer-C54 Nigeria

Rating

Tplink Archer-C54 Nigeria

Tplink Archer-C54 Nigeria features fast Dual-band Wi-Fi allows you to connect your demanding devices to the faster and clearer 5 GHz band, while a tradition 2.4 GHz band provides a far-reaching, stable connection to the rest of your devices.

Description

Tplink Archer-C54 Wi-Fi Router Nigeria

Tplink Archer-C54 Nigeria features fast Dual-band Wi-Fi allows you to connect your demanding devices to the faster and clearer 5 GHz band, while a tradition 2.4 GHz band provides a far-reaching, stable connection to the rest of your devices. Equipped with MU-MIMO technology Tplink Archer-C54 Nigeria connect more devices and maintain low latency. Concurrent streaming on 2 different MU-MIMO devices now will just be smooth as connecting only one, as long as you have enough bandwidth from your ISP.

Features

  • Faster AC Wi-Fi—AC1200 dual-band is ideal for 4K video streaming and high-speed downloading.
  • Far-Reaching Coverage—4× antennas and Beamforming delivers extensive Wi-Fi coverage and reliable connections.
  • Multi-Mode 3-in-1—Supports Router, Access Point, and Range Extender modes for added flexibility.
  • Parental Controls—Manages when and how connected devices can access the internet.
  • Guest Network—Provides separate access for guests in order to secure the host network.
  • Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming.
  • IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).
  • Compact and Mountable—Designed to conserve space and complement any décor.

Fast Dual-Band WiFi

Tplink Archer-C54 Nigeria Router features Dual-band Wi-Fi allows you to connect your demanding devices to the faster and clearer 5 GHz band, while a tradition 2.4 GHz band provides a far-reaching, stable connection to the rest of your devices.

Boosted Signal throughout Your Home

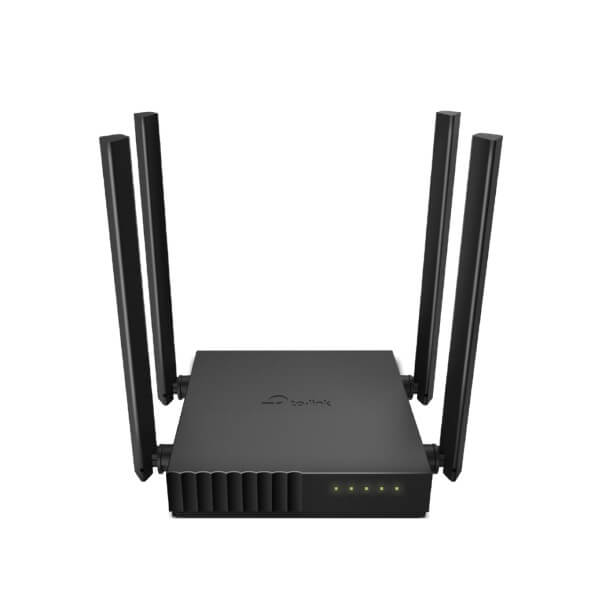

Access your entertainment from every corner of your home with 4 external high-performance antennas. Beamforming technology detects devices and concentrates wireless signals towards them, even if they are far away or low-powered.

Talk to Devices Simultaneously

Tplink Archer-C54 Nigeria equipped with MU-MIMO technology to connect more devices and maintain low latency. Concurrent streamings on 2 different MU-MIMO devices now will just be smooth as connecting only one, as long as you have enough bandwidth from your ISP.

Versatile Management

Tplink Archer-C54 Nigeria easily manage your home network with versatile built-in tools, including Parental Controls, Guest Network, QoS, and more.

High Integration, Compact Size

Tplink Archer-C54 Nigeria has system structure focuses on creating optimal WiFi. The advanced semiconductor technology helps integrate units including CPU, memory, and multi-stream processing unit onto a single chip to achieve high compatibility, bringing you the same power with a compact design.

Easy Setup at Your Fingertips

Set up Tplink Archer-C54 Nigeria in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.

Specifications

WIRELESS
Standards
  • Wi-Fi 5
  • IEEE 802.11ac/n/a 5 GHz
  • IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds
  • AC1200
  • 5 GHz : 867 Mbps (802.11ac)
  • 2.4 GHz : 300 Mbps (802.11n)
WiFi Range
  • 3 Bedroom Houses
  • 4× Fixed Antennas
    Multiple antennas form a signal-boosting array to cover more directions and large areas
  • Beamforming
    Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
  • Medium
  • Dual-Band
    Allocate devices to different bands for optimal performance
  • MU-MIMO
    Simultaneously communicates with multiple MU-MIMO clients
Working Modes
  • Router Mode
  • Access Point Mode
  • Range Extender Mode
HARDWARE
Processor Single-Core CPU

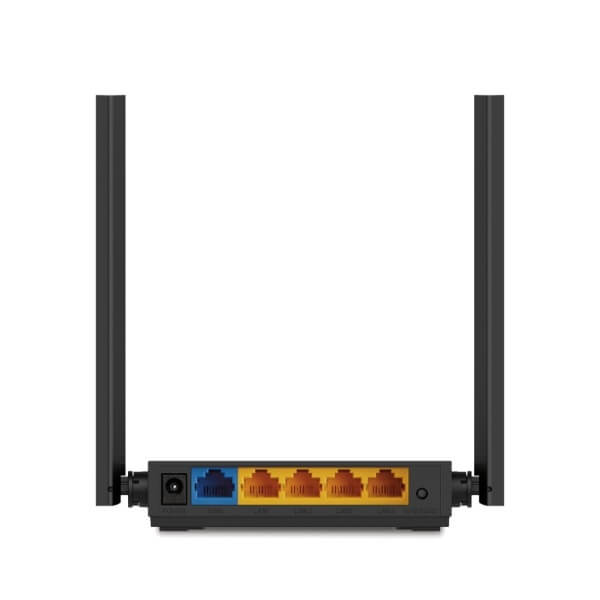

Ethernet Ports
  • 1× 10/100 Mbps WAN Port
  • 4× 10/100 Mbps LAN Ports
Buttons WPS/Reset Button
Power 9 V ⎓ 0.85 A
SECURITY
WiFi Encryption
  • WEP
  • WPA
  • WPA2
  • WPA/WPA2-Enterprise (802.1x)
Network Security
  • SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway
Guest Network
  • 1× 5 GHz Guest Network
  • 1× 2.4 GHz Guest Network
SOFTWARE
Protocols
  • IPv4
  • IPv6
Parental Controls
  • URL Filtering
  • Time Controls
WAN Types
  • Dynamic IP
  • Static IP
  • PPPoE
  • PPTP
  • L2TP
Quality of Service QoS by Device
NAT Forwarding
  • Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP
IPTV
  • IGMP Proxy
  • IGMP Snooping
  • Bridge
  • Tag VLAN
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
DDNS
  • NO-IP
  • DynDNS
Management Tether App
PHYSICAL
Dimensions (W×D×H) 4.5 × 4.2 × 1.0 in
(115 × 106.7 × 24.3 mm)
Package Contents
  • Wi-Fi Router Archer-C54
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide
OTHER
System Requirements
  • Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
  • Cable or DSL Modem (if needed)
  • Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment
  • Operating Temperature : 0℃~40℃ (32℉ ~104℉)
  • Storage Temperature : -40℃~60℃ (-40℉ ~140℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE EIRP :

  • <20dBm(2.4GHz)
  • <23dBm(5GHz)

FCC :
<30dBm(2.4GHz & 5GHz)

WiFi Reception Sensitivity 5GHz :

  • 11a 6Mbps : -93dBm;
  • 11a 54Mbps : -78dBm;
  • 11ac HT20 mcs8 : 69dBm;
  • 11ac HT40 mcs9 : -66dBm;
  • 11ac HT80 mcs9 : -62dBm;

2.4GHz :

  • 11g 54Mbps : -78dBm;
  • 11n HT20 mcs7 : -74dBm;
  • 11n HT40 mcs7 : -71dbm;
