Tplink Archer-AX90 Nigeria

Tplink Archer-AX90 Nigeria features AX6600 Tri-Band Wi-Fi 6 Router. The Tplink Archer-AX90 Nigeria provides eight simultaneous data streams to open up more bandwidth and help your devices operate at full speed ideal for Your Latest Phones and Laptops.

Description

Tplink Archer-AX90 Wi-Fi Router Nigeria

Tplink Archer-AX90 Nigeria features AX6600 Tri-Band Wi-Fi 6 Router. The Router provides eight simultaneous data streams to open up more bandwidth and help your devices operate at full speed ideal for Your Latest Phones and Laptops. The Tplink Archer-AX90 Nigeria supports new generation of phones such as iPhone 11, Galaxy Note 10, and Galaxy S10 and laptops already support WiFi 6, with many more on the way. Your router should, too. WiFi 6 holds great promise to future-proof your home network for the next several years. Flexibly Create Whole Home WiFi with Archer-AX90. Now is the best time to embrace this new technology.

Features

  • Faster AX6600 Tri-Band Wi-Fi – 4804Mbps (5 GHz) + 1201Mbps (5 GHz) + 574Mbps (2.4 GHz).
  • Ultra Connectivity – 1×2.5Gbps WAN/LAN port + 1×1Gbps WAN/LAN port + 3×Gigabit LAN ports and two USB ports ensure max flexibility and boosted throughput.
  • Maximized Coverage – Eight high-gain antennas equipped with Beamforming ensure vast coverage.
  • More Devices with Less Lag – OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.
  • TP-Link HomeShield – Enhanced security defends against the latest cyber threats.
  • Powerful CPU – 1.5GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.
  • Refined Security—WPA3 reinforces Wi-Fi encryption for improved security.

Powerful and Exquisite

Tplink Archer-AX90 Nigeria combines Tri-band WiFi with high-tech WiFi 6, providing eight simultaneous data streams to open up more bandwidth and help your devices operate at full speed. Eight high gain antennas not only deliver boosted WiFi signals to every corner of your home, but also bring a sense of aesthetics.

Go Faster— Wired or Wireless

Tplink Archer-AX90 Nigeria also provides premium wired connections in addition to the stunning wireless speeds of more than 6.6 Gbps. A 2.5 Gbps port and 1 Gbps port make full use of gigabit speeds from your local ISP. Break through the 1G bottleneck and drive your devices to peak performance. WAN/LAN support gives you remarkable flexibility to tailor both ports to fit your network’s needs.

Let the Experts Secure Your Home

Tplink Archer-AX90 Nigeria customize your home network with enhanced security using TP-Link HomeShield’s kit of built-in features. Whether you’re identifying network security holes, limiting the time your children spend online, or blocking websites, HomeShield gives you the tools you need to fully manage your network.

WPA3—Stronger Security for Your Network

Building on the widespread adoption of WPA2, the latest WPA3 brings new capabilities to improve cybersecurity.

TP-Link OneMesh

OneMesh is a simple way to form a Mesh network with a single WiFi name for seamless wholehome coverage. Just connect a OneMesh range extender to a OneMesh router. No more searching around for a stable connection.

Specifications

WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX6600

  • 5 GHz : 4804 Mbps (802.11ax, HE160)
  • 5 GHz : 1201 Mbps (802.11ax)
  • 2.4 GHz : 574 Mbps (802.11ax)
WiFi Range
  • 4 Bedroom Houses
  • 8× Fixed High-Performance Antennas
    Multiple antennas form a signal-boosting array to cover more directions and large areas
  • Beamforming
    Concentrates wireless signal strength towards clients to expand WiFi range
  • High-Power FEM
    Improves transmission power to strengthen signal coverage
  • 4T4R
    Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity
  • Very High
  • Tri-Band
    Allocate devices to different bands for optimal performance
  • 4×4 MU-MIMO
    Simultaneously communicates with multiple MU-MIMO clients
  • OFDMA
    Simultaneously communicates with multiple Wi-Fi 6 clients
  • Airtime Fairness
    Improves network efficiency by limiting excessive occupation
  • DFS
    Access an extra band to reduce congestion
  • 8 Streams
    Connect your devices to more bandwidth
Working Modes
  • Router Mode
  • Access Point Mode
HARDWARE
Processor 1.5 GHz Quad-Core CPU

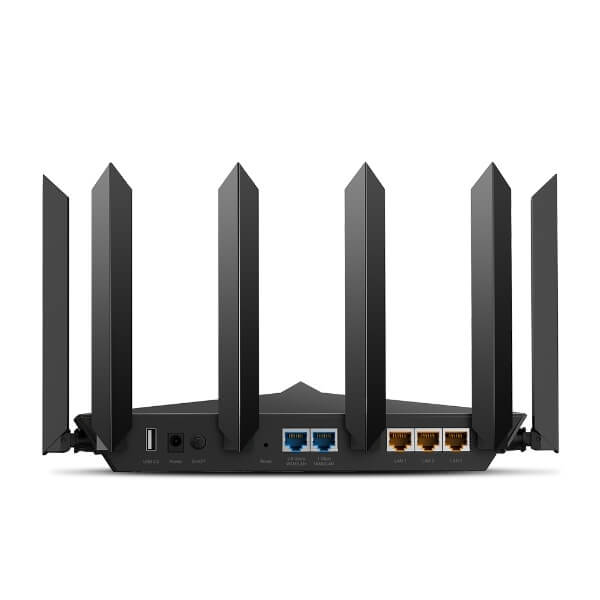

Ethernet Ports
  • 1× 2.5 Gbps WAN/LAN Port
  • 1× 1 Gbps WAN/LAN Port
  • 3× 1 Gbps LAN Ports
USB Support
  • 1× USB 3.0 Port
  • 1× USB 2.0 Port
  • Supported Partition Formats :
    NTFS, exFAT, HFS+, FAT32
  • Supported Functions :
    • Apple Time Machine
    • FTP Server
    • Media Server
    • Samba Server Buttons
    • Wi-Fi On/Off Button
    • Power On/Off Button
    • LED On/Off Button
    • WPS Button
    • Reset Button
  • Power 12 V ⎓ 3.3 A
SECURITY
WiFi Encryption
  • WPA
  • WPA2
  • WPA3
  • WPA/WPA2-Enterprise (802.1x)
Network Security
  • SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway

HomeShield Security

  • Real-Time IoT Protection
  • Malicious Site Blocker
  • Intrusion Prevention System
  • DDoS Attack Prevention
  • Home Network Scanner

Guest Network

  • 1× 5 GHz-1 Guest Network
  • 1× 5 GHz-2 Guest Network
  • 1× 2.4 GHz Guest Network

VPN Server

  • OpenVPN
  • PPTP
SOFTWARE
Protocols IPv4
IPv6
Service Kits HomeShield
OneMesh
  • OneMesh Supported
  • Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
Parental Controls
  • HomeShield Parental Controls
  • Custom Profiles
  • Professional Content Filter Library
  • Family Time
  • Bedtime
  • Off Time
  • Time Rewards
  • Family Online Time Ranking
  • Pause the Internet
  • Weekly and Monthly Reports
WAN Types
  • Dynamic IP
  • Static IP
  • PPPoE
  • PPTP
  • L2TP
Quality of Service QoS by Device
Cloud Service
  • Auto Firmware Upgrade
  • TP-Link ID
  • DDNS
NAT Forwarding
  • Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP
  • Virtual Server
IPTV
  • IGMP Proxy
  • IGMP Snooping
  • Bridge
  • Tag VLAN
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
DDNS
  • TP-Link
  • NO-IP
  • DynDNS
Management
  • Tether App
  • Webpage
PHYSICAL
Dimensions (W×D×H) 12.2 × 8.1 × 6.8 in
(311 × 207 × 174 mm)
Package Contents
  • Wi-Fi Router Archer-AX90
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide
OTHER
System Requirements
  • Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
  • Cable or DSL Modem (if needed)
  • Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment
  • Operating Temperature : 0℃~40℃ (32℉ ~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉ ~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE :

  • <20dBm{2.4GHz}
  • <23dBm{5.15GHz~5.35GHz}
  • <30dBm{5.47GHz~5.725GHz}

FCC :

  • <24dBm{5.47GHz~5.725GHz }
  • <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
WiFi Reception Sensitivity 2.4GHz :

  • 11n HT20 MCS0 : -95dBm
  • 11ax HE20 MCS11 : -64dBm
  • 11ax HE40 MCS11 : -62dBm

5GHz-1 :

  • 11ac VHT20 MCS0 : -92dBm
  • 11ax HE20 MCS11 : -61dBm
  • 11ax HE40 MCS11 : -58dBm
  • 11ax HE80 MCS11 : -55dBm

5GHz-2 :

  • 11ac VHT20 MCS0 : -95dBm
  • 11ax HE20 MCS11 : -61dBm
  • 11ax HE40 MCS11 : -58dBm
  • 11ax HE80 MCS11 : -55dBm
  • 11ax HE160 MCS11 : -53dBm
