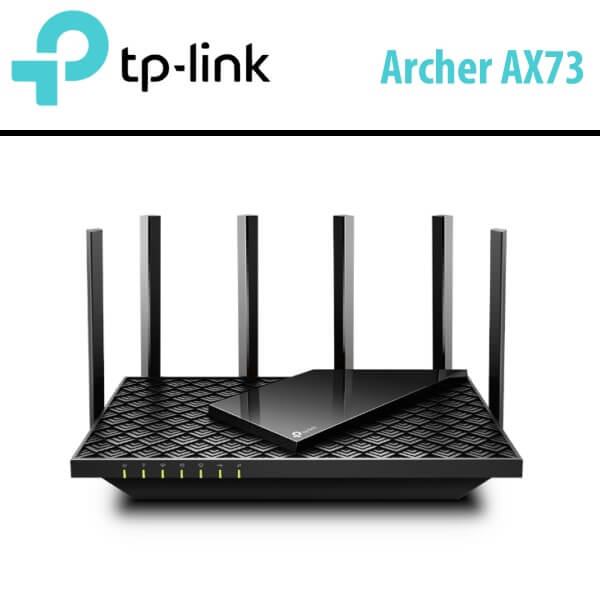

Tplink Archer-AX73 Nigeria

The Tplink Archer-AX73 Nigeria Wifi Router features latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.

Description

Tplink Archer-AX73 Wi-Fi Router Nigeria

The Tplink Archer-AX73 Nigeria Wi-Fi Router features latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network. AX5400 Dual-Band Gigabit Wi-Fi 6 Router. Gigabit WiFi for 8K Streaming – Up to 5400 Mbps WiFi for faster browsing, streaming, gaming and downloading, all at the same time. Tplink Archer-AX73 Nigeria supports MU-MIMO and OFDMA to reduce congestion and 4X the average throughput allowing connection of More Devices. Featuring a powerful Router, Tplink Archer-AX73 Nigeria is equipped with power FEM, 6× Antennas, Beamforming, and 4T4R structures combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards your devices More Vents, Less Heat Tplink Archer-AX73 Nigeria improves vented areas help unleash the full power of the router

Features

  • Full Gigabit WiFi for 8K Streaming – Up to 5400 Mbps of dual-band WiFi for faster browsing, streaming, and downloading, all at the same time.
  • Fully Featured Wi-Fi 6 – Equipped with the top structure of 4T4R and HE160 on the 5 GHz band to enable 4.8 Gbps ultra-fast connections.
  • Up to 4x More Capacity – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
  • Extensive Coverage – 6× high-performance antennas with beamforming technology ensure broad coverage.
  • HomeShield – TP-Link’s premium security service keeps your home network safe with cutting-edge features for network and IoT protection.
  • More Vents, Long-Lasting Performance – Contemporary design that also acts as a vent area to unleash the full power of performance.
  • USB Sharing – 1× USB 3.0 port enables easy media sharing and private cloud building.
  • Easy Setup – Set up the router in minutes with guided instructions using the Tether app.

Warp Speed for Smooth 8K Streaming

Tplink Archer-AX73 Nigeria improves speeds enables smoother streaming, faster downloading, and gaming, all at the same time. Hop on 5 GHz with full speed-boosting features to stream multiple 8K videos without lagging.

Extensive Wi-Fi Coverage with Advanced Technology

Tplink Archer-AX73 Nigeria offers stable Wi-Fi connections in all rooms, even in the kitchen and bedroom. High-Power FEM, 6× antennas, beamforming, and 4T4R structures combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices.

Connect More Devices

Tplink Archer-AX73 Nigeria easily handle dozens of devices streaming and gaming at the same time — OFDMA and MU-MIMO combine to future-proof your home network by providing greater capacity to connect more devices.

Designed to Be Cool

The Tplink Archer-AX73 Nigeria has slant rectangle atop of the scaled armor design provides a contemporary aesthetic. The vent design takes up 167 cm² (25 in²) of its top surface for improved heat dissipation, unleashing the whole machine’s full power.

TP-Link HomeShield

Advanced Security for Your Network and Clients. Tplink Archer-AX73 Nigeria packs HomeShield protects all connected clients against DDoS, malicious sites, and port intrusion, delivering a safe network environment for your data and privacy.

Flexibly Create Whole Home WiFi

Want to build a whole-home Wi-Fi? Archer-AX73 supports OneMesh to form a fast and easy whole-home network, that covers your home, preventing drops and lag when moving between signals.

Easy Setup and Use

Whether you prefer the intuitive Tether App or the powerful web interface, you can set up your Archer-AX73 in minutes. The Tether App allows you to manage network settings from any Android or iOS device.

Specifications

WIRELESS
Standards
  • Wi-Fi 6
  • IEEE 802.11ax/ac/n/a 5 GHz
  • IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX5400

  • 5 GHz : 4804 Mbps (802.11ax, HE160)
  • 2.4 GHz : 574 Mbps (802.11ax)
WiFi Range
  • 3 Bedroom Houses
  • 6× Fixed High-Performance Antennas
    Multiple antennas form a signal-boosting array to cover more directions and large areas
  • Beamforming
    Concentrates wireless signal strength towards clients to expand WiFi range
  • High-Power FEM
    Improves transmission power to strengthen signal coverage
  • 4T4R
    Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity
  • High
  • Dual-Band
    Allocate devices to different bands for optimal performance
  • 4×4 MU-MIMO
    Simultaneously communicates with multiple MU-MIMO clients
  • OFDMA
    Simultaneously communicates with multiple Wi-Fi 6 clients
  • Airtime Fairness
    Improves network efficiency by limiting excessive occupation
  • DFS
    Access an extra band to reduce congestion
  • 6 Streams
    Connect your devices to more bandwidth
Working Modes
  • Router Mode
  • Access Point Mode
HARDWARE
Processor 1.5 GHz Triple-Core CPU

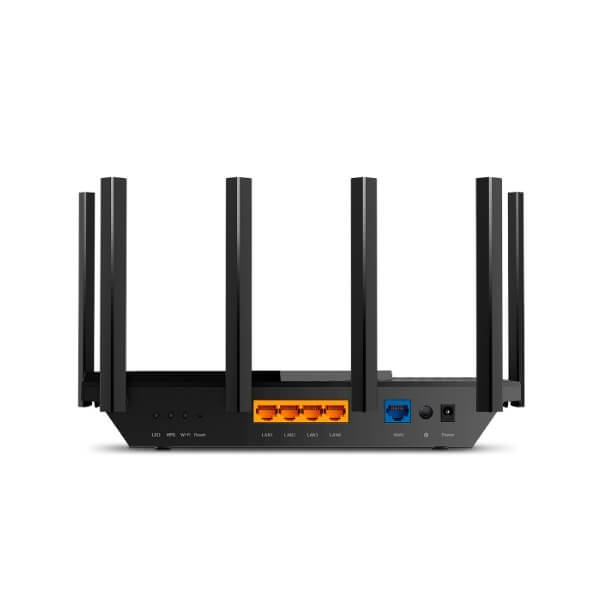

Ethernet Ports
  • 1× Gigabit WAN Port
  • 4× Gigabit LAN Ports

Static Link Aggregation (LAG) available with 2× LAN ports

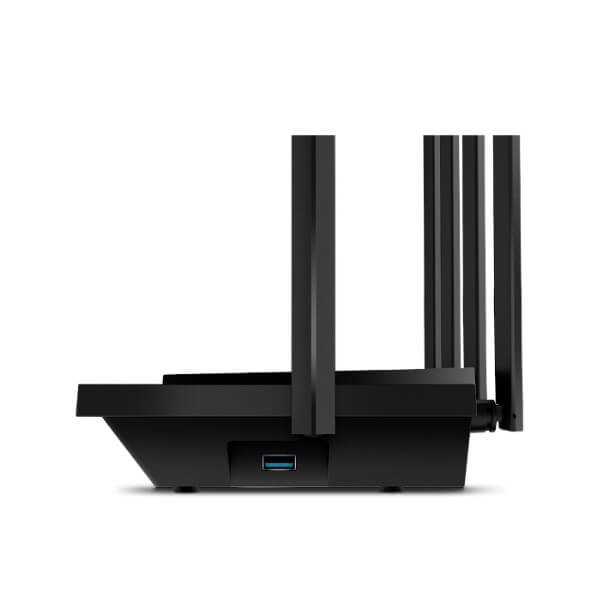

USB Support 1× USB 3.0 Port

Supported Partition Formats :
NTFS, exFAT, HFS+, FAT32

Supported Functions :

  • Apple Time Machine
  • FTP Server
  • Media Server
  • Samba Server

Buttons

  • Wi-Fi On/Off Button
  • Power On/Off Button
  • LED On/Off Button
  • WPS Button
  • Reset Button

Power12 V ⎓ 2.5 A

SECURITY
WiFi Encryption
  • WPA
  • WPA2
  • WPA3
  • WPA/WPA2-Enterprise (802.1x)
Network Security
  • SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway

HomeShield Security

  • Real-Time IoT Protection
  • Malicious Site Blocker
  • Intrusion Prevention System
  • DDoS Attack Prevention
  • Home Network Scanner

Guest Network

  • 1× 5 GHz Guest Network
  • 1× 2.4 GHz Guest Network

VPN Server

  • OpenVPN
  • PPTP
SOFTWARE
Protocols
  • IPv4
  • IPv6
Service Kits HomeShield
OneMesh OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
Parental Controls HomeShield Parental Controls

  • Custom Profiles
  • Professional Content Filter Library
  • Family Time
  • Bedtime
  • Off Time
  • Time Rewards
  • Family Online Time Ranking
  • Pause the Internet
  • Weekly and Monthly Reports
WAN Types
  • Dynamic IP
  • Static IP
  • PPPoE
  • PPTP
  • L2TP
Quality of Service QoS by Device
Cloud Service
  • Auto Firmware Upgrade
  • TP-Link ID
  • DDNS
NAT Forwarding
  • Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP
  • Virtual Server
IPTV
  • IGMP Proxy
  • IGMP Snooping
  • Bridge
  • Tag VLAN
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
DDNS
  • TP-Link
  • NO-IP
  • DynDNS
Management
  • Tether App
  • Webpage
PHYSICAL
Dimensions (W×D×H) 10.7 × 5.8 × 1.9 in
(272.5 × 147.2 × 49.2 mm)
Package Contents
  • Wi-Fi Router Archer-AX73
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide
OTHER
System Requirements
  • Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
  • Cable or DSL Modem (if needed)
  • Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment
  • Operating Temperature : 0℃~40℃ (32℉ ~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉ ~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE :

  • <20dBm{2.4GHz}
  • <23dBm{5.15GHz~5.35GHz}
  • <30dBm{5.47GHz~5.725GHz}

FCC :

  • <24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz }
  • <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
WiFi Reception Sensitivity 2.4GHz :

  • 11ac VHT20 MCS0 : -94.5dBm
  • 11ac VHT20 MCS8 : -72.5dBm
  • 11ac VHT40 MCS0 : -92.5dBm
  • 11ac VHT40 MCS9 : -69.5dBm
  • 11ax HE20 MCS0 : -95dBm
  • 11ax HE20 MCS11 : -64.5dBm
  • 11ax HE40 MCS0 : -92.5dBm
  • 11ax HE40 MCS11 : -62dBm

5GHz :

  • 11ac VHT20 MCS0 : -97dBm
  • 11ac VHT20 MCS8 : -74dBm
  • 11ac VHT40 MCS0 : -95dBm
  • 11ac VHT40 MCS9 : -70dBm
  • 11ac VHT80 MCS0 : -91.5dBm
  • 11ac VHT80 MCS9 : -66dBm
  • 11ac VHT160 MCS0 : -86dBm
  • 11ac VHT160 MCS9 : -61dBm
  • 11ax HE20 MCS0 : -95dBm
  • 11ax HE20 MCS11 : -64dBm
  • 11ax HE40 MCS0 : -91.5dBm
  • 11ax HE40 MCS11 : -62dBm
  • 11ax HE80 MCS0 : -88dBm
  • 11ax HE80 MCS11 : -58dBm
  • 11ax HE160 MCS0 : -85.5dBm
  • 11ax HE160 MCS11 : -55dBm
