Tplink Archer-AX23 Nigeria

The Tplink Archer-AX23 Nigeria features the latest generation of WiFi technology bringing faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.

Description

Tplink Archer-AX23 Wi-Fi Router Nigeria

The Tplink Archer-AX23 Nigeria features the latest generation of WiFi technology bringing faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network. Transfer HD movies in 10 seconds. WiFi 6’s 1024-QAM improves encoding efficiency by 25% while the improved symbol rate boosts data rate by 11%. Tplink Archer-AX23 Nigeria offers broader bandwidth while streaming content on multiple devices also enjoy smooth gaming, video streaming, and live feeds simultaneously. OFDMA strengthens your WiFi by allowing multiple clients to share one band at the same time, cutting latency and jitter.

Tplink Archer-AX23 Nigeria is equipped with 4× high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for those in previously hard-to-reach areas. Tplink Archer-AX23 Nigeria supports OneMesh to form seamless coverage throughout your home, preventing drops and lag when moving between signals. The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiF

Features

  • Super-Fast 1.8 Gbps Wi-Fi – Enjoy smooth 4K streaming and downloading with super-fast Wi-Fi speeds of 1.8 Gbps.
  • Connect More Devices – Communicates with more devices using OFDMA while simultaneously reducing lag
  • Broader Coverage – Improved algorithm, beamforming, and high-performance antennas enhance the Wi-Fi coverage performance.
  • Next-Gen Platform – The Next-Gen High-Efficiency Qualcomm Chipset provides fast and stable Wi-Fi while saving power consumption.
  • Parental Controls – Enjoy the most versatile yet free parental control features among all routers, including URL blocking, profile management, pausing, and more.
  • Works with Most ISPs – Compatible with most ISPs with extra L2TP/PPTP support. IPTV support works with your existing TV over the Internet contract.
  • OneMesh – Use with OneMesh extenders to get whole-home coverage and enjoy smooth roaming between signals.
  • Easy Setup – Set up your router in minutes with the powerful TP-Link Tether App.
  • Backward Compatible – Supports all previous 802.11 standards Wi-Fi devices.

Specifications

WIRELESS
Standards
  • Wi-Fi 6
  • IEEE 802.11ax/ac/n/a 5 GHz
  • IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds
  • AX1800
  • 5 GHz : 1201 Mbps (802.11ax)
  • 2.4 GHz : 574 Mbps (802.11ax)
WiFi Range
  • 3 Bedroom Houses
  • 4× Fixed High-Performance Antennas
    Multiple antennas form a signal-boosting array to cover more directions and large areas
  • Beamforming
    Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
  • High
  • Dual-Band
    Allocate devices to different bands for optimal performance
  • OFDMA
    Simultaneously communicates with multiple Wi-Fi 6 clients
  • Airtime Fairness
    Improves network efficiency by limiting excessive occupation
  • 4 Streams
    Connect your devices to more bandwidth
Working Modes
  • Router Mode
  • Access Point Mode
HARDWARE
Processor Dual-Core CPU

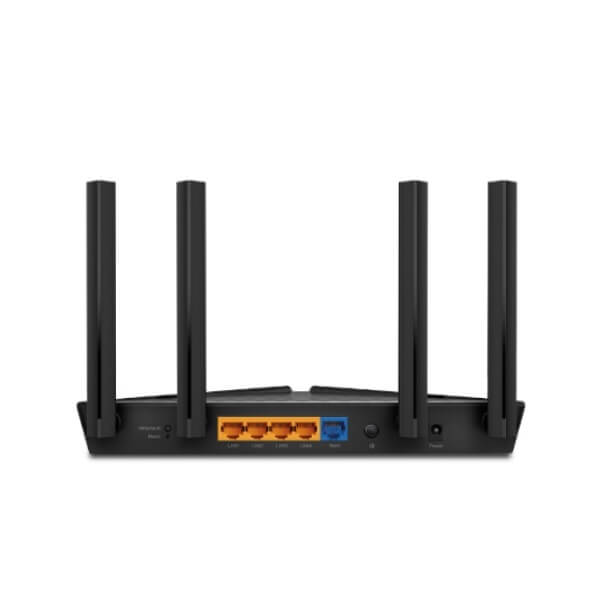

Ethernet Ports
  • 1× Gigabit WAN Port
  • 4× Gigabit LAN Ports
Buttons
  • WPS/Wi-Fi Button
  • Power On/Off Button
  • LED On/Off Button
  • Reset Button
Power 12 V ⎓ 1 A
SECURITY
WiFi Encryption
  • WPA
  • WPA2
  • WPA3
  • WPA/WPA2-Enterprise (802.1x)
Network Security
  • SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway
Guest Network
  • 1× 5 GHz Guest Network
  • 1× 2.4 GHz Guest Network
VPN Server
  • OpenVPN
  • PPTP
SOFTWARE
Protocols
  • IPv4
  • IPv6
OneMesh™ OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Parental Controls
  • URL Filtering
  • Time Controls
WAN Types
  • Dynamic IP
  • Static IP
  • PPPoE
  • PPTP
  • L2TP
Quality of Service QoS by Device
Cloud Service
  • Auto Firmware Upgrade
  • OTA Firmware Upgrade
  • TP-Link ID
  • DDNS
NAT Forwarding
  • Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP
IPTV
  • IGMP Proxy
  • IGMP Snooping
  • Bridge
  • Tag VLAN
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
DDNS
  • TP-Link
  • NO-IP
  • DynDNS
Management Tether App
PHYSICAL
Dimensions (W×D×H) 10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)
Package Contents
  • Wi-Fi Router Archer-AX23
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide
OTHER
System Requirements
  • Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
  • Cable or DSL Modem (if needed)
  • Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment
  • Operating Temperature : 0℃~40℃ (32℉ ~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉ ~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE :

  • <20dBm(2.4 GHz)
  • <23dBm(5.15 GHz~5.25 GHz)

FCC :
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

WiFi Reception Sensitivity EU Version
5G

  • 11a 6Mbps : -96dbm
  • 11a 54Mbps : -75dbm
  • 11ac VHT20_MCS0 : -95dbm
  • 11ac VHT20_MCS8 : -71dbm
  • 11ac VHT40_MCS0 : -92dbm
  • 11ac VHT40_MCS9 : -66dbm
  • 11ac VHT80_MCS0 : -89dbm
  • 11ac VHT80_MCS9 : -62dbm
  • 11ax HE20_MCS0 : -95dbm
  • 11ax HE20_MCS11 : -64dbm
  • 11ax HE40_MCS0 : -92dbm
  • 11ax HE40_MCS11 : -60dbm
  • 11ax HE80_MCS0 : -89dbm
  • 11ax HE80_MCS11 : -59dbm

2.4G

  • 11g 6Mbps : -96dbm
  • 11g 54Mbps : -75dbm
  • 11n HT20_MCS0 : -95dbm
  • 11n HT20_MCS7 : -75dbm
  • 11n HT40_MCS0 : -92dbm
  • 11n HT40_MCS7 : -72dbm
  • 11ac VHT20_MCS0 : -95dbm
  • 11ac VHT20_MCS8 : -72dbm
  • 11ac VHT40_MCS0 : -92dbm
  • 11ac VHT40_MCS9 : -67dbm
  • 11ax HE20_MCS0 : -95dbm
  • 11ax HE20_MCS11 : -65dbm
  • 11ax HE40_MCS0 : -92dbm
  • 11ax HE40_MCS11 : -62dbm
