Standards |
- Wi-Fi 6
- IEEE 802.11ax/ac/n/a 5 GHz
- IEEE 802.11ax/n/b/g 2.4 GHz
|
WiFi Speeds |
AX11000
- 5 GHz : 4804 Mbps (802.11ax, HE160)
- 5 GHz : 4804 Mbps (802.11ax, HE160)
- 2.4 GHz : 1148 Mbps (802.11ax)
|
WiFi Range |
- 4-6 Bedroom Houses
- 8× Detachable High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
- Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
- High-Power FEM
Improves transmission power to strengthen signal coverage
- 4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
|
WiFi Capacity |
- Very High
- Tri-Band
Allocate devices to different bands for optimal performance
- 4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
- OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
- Airtime Fairness
Improves network efficiency by limiting excessive occupation
- DFS
Access an extra band to reduce congestion
- 12 Streams
Connect your devices to more bandwidth
|
Working Modes |
- Router Mode
- Access Point Mode
|
HARDWARE |
Processor |
1.8 GHz 64 Bit Quad-Core CPU |

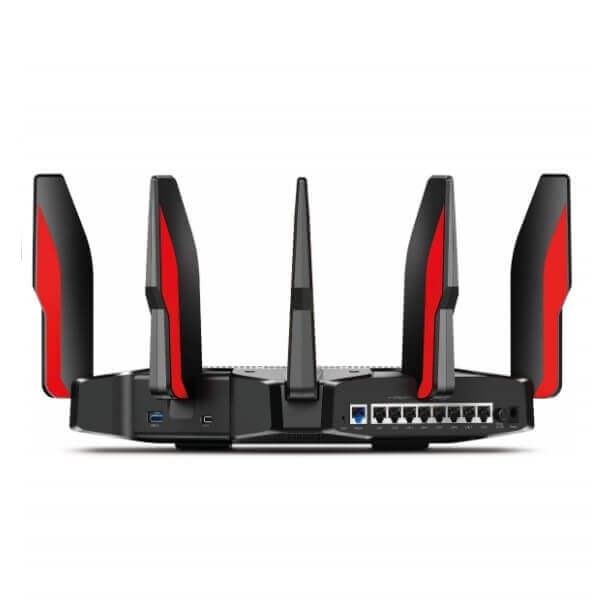

Ethernet Ports |
- 1× 2.5 Gbps WAN Port
- 8× Gigabit LAN Ports
- Static Link Aggregation (LAG) available with 2× LAN ports
|

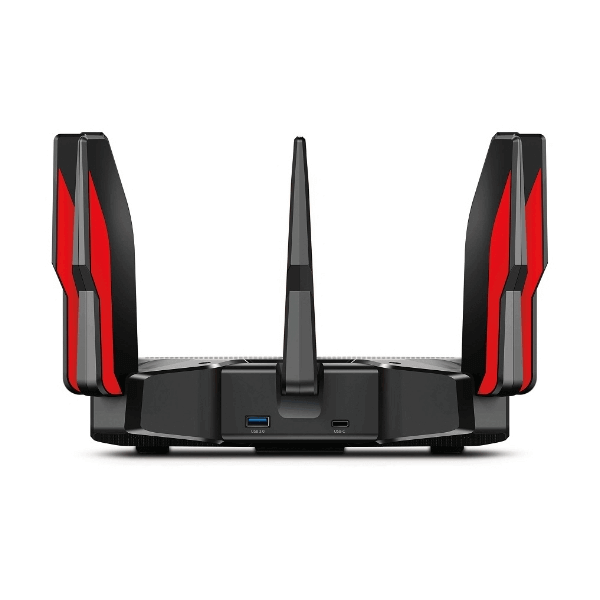

USB Support |
- 1× USB-C 3.0 Port
- 1× USB-A 3.0 Port
Supported Partition Formats :
NTFS, exFAT, HFS+, FAT32
Supported Functions :
- Apple Time Machine
- FTP Server
- Media Server
Samba Server Buttons
- Wi-Fi On/Off Button
- Power On/Off Button
- LED On/Off Button
- WPS Button
- Reset Button
Power12 V ⎓ 5 A |
SECURITY |
WiFi Encryption |
- WPA
- WPA2
- WPA3
- WPA/WPA2-Enterprise (802.1x)
|
Network Security |
- SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway
- HomeCare Antivirus
- Malicious Site Checker
- Port Intrusion Prevention
- Infected Device Isolation
- Notification and Log
- Guest Network
- 1× 5 GHz Guest Network
- 1× 2.4 GHz Guest Network
- VPN Server
|
SOFTWARE |
Protocols |
IPv4
IPv6 |
Game Center |
- Game Accelerator
Detects and optimizes gaming streams to keep latency as low as possible
- Game Statistics
Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail
- Game Protector
Keep your accounts and system safe with HomeCare antivirus protectionService KitsHomeCareOneMeshOneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.Parental Controls
- HomeCare Parental Controls
- Custom Profiles
- Content Filtering
- App Block
- URL Filtering
- Time Limit
- Time Schedule (Bedtime)
- Log Insight
- WAN Types
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP Quality of Service Game Accelerator QoS
- QoS by Device
- HomeCare QoS
- QoS by Application Cloud Service
- Auto Firmware Upgrade
- OTA Firmware Upgrade
- TP-Link ID
- DDNS
- NAT Forwarding
- Port Forwarding
- Port Triggering
- DMZ
- UPnP IPTV
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN DHCP Address Reservation
- DHCP Client List
- Server DDNSTP-Link
- NO-IP
- DynDNS Management Tether App
|
PHYSICAL |
Dimensions (W×D×H) |
11.3 × 11.3 × 7.2 in
(288 × 288 × 184 mm) |
Package Contents |

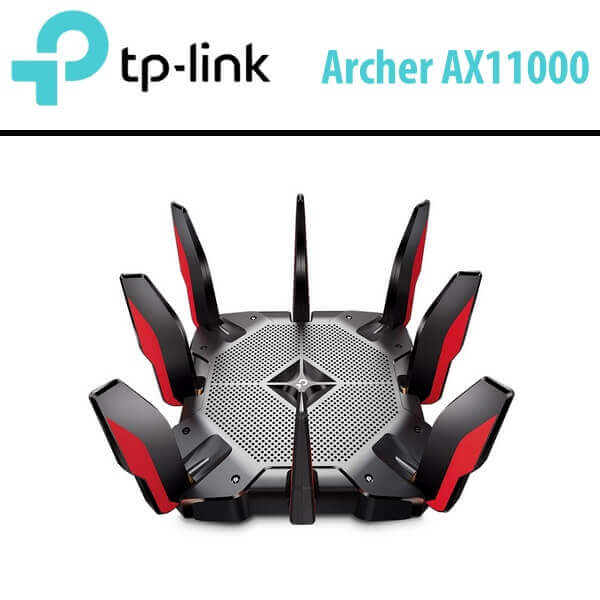

- Wi-Fi Router Archer-AX11000
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
|
OTHER |
System Requirements |
- Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
- Cable or DSL Modem (if needed)
- Subscription with an internet service provider (for internet access)
|
Certifications |
FCC, RoHS |
Environment |
- Operating Temperature : 0℃~40℃ (32℉ ~104℉)
- Storage Temperature : -40℃~70℃ (-40℉ ~158℉)
- Operating Humidity : 10%~90% non-condensing
- Storage Humidity : 5%~90% non-condensing
|
TEST DATA |
WiFi Transmission Power |
FCC :
- <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)
- <24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)
|
WiFi Reception Sensitivity |
5 GHz_1 :
- 11a 6Mbps:-96dBm, 11a 54Mbps : -78dBm
- 11ac VHT20_MCS0 : -95dBm, 11ac VHT20_MCS11 : -65dBm
- 11ac VHT40_MCS0 : -93dBm, 11ac VHT40_MCS11 : -62dBm
- 11ac VHT80_MCS0 : -90dBm, 11ac VHT80_MCS11 : -59dBm
- 11ac VHT160_MCS0 : -87dBm, 11ac VHT160_MCS11 : -54dBm
- 11ax HE20_MCS0 : -94dBm, 11ax HE20_MCS11 : -62Bm
- 11ax HE40_MCS0 : -91dBm, 11ax HE40_MCS11 : -59dBm
- 11ax HE80_MCS0 : -88dBm, 11ax HE80_MCS11 : -57dBm
- 11ax HE160_MCS0 : -84dBm, 11ax HE160_MCS11 : -54dBm
5 GHz_2 :
- 11a 6Mbps:-96dBm, 11a 54Mbps : -78dBm
- 11ac VHT20_MCS0 : -95dBm, 11ac VHT20_MCS11 : -65dBm
- 11ac VHT40_MCS0 : -93dBm, 11ac VHT40_MCS11 : -62dBm
- 11ac VHT80_MCS0 : -90dBm, 11ac VHT80_MCS11 : -59dBm
- 11ac VHT160_MCS0 : -87dBm, 11ac VHT160_MCS11 : -54dBm
- 11ax HE20_MCS0 : -94dBm, 11ax HE20_MCS11 : -62Bm
- 11ax HE40_MCS0 : -91dBm, 11ax HE40_MCS11 : -59dBm
- 11ax HE80_MCS0 : -88dBm, 11ax HE80_MCS11 : -57dBm
- 11ax HE160_MCS0 : -84dBm, 11ax HE160_MCS11 : -54dBm
2.4 GHz:
- 11g 6Mbps:-97dBm, 11a 54Mbps : -79dBm
- 11n HT20_MCS0 : -97dBm, 11n HT20_MCS7 : -78dBm
- 11n HT40_MCS0 : -95dBm, 11n HT40_MCS7 : -75dBm
- 11ac VHT20_MCS0 : -96dBm, 11ac VHT20_MCS11 : -67dBm
- 11ac VHT40_MCS0 : -94dBm, 11ac VHT40_MCS11 : -64dBm
- 11ax HE20_MCS0 : -96dBm, 11ax HE20_MCS11 : -64dBm
- 11ax HE40_MCS0 : -93dBm, 11ax HE40_MCS11 : -61dBm
|
