Tplink Archer-AX10 Nigeria

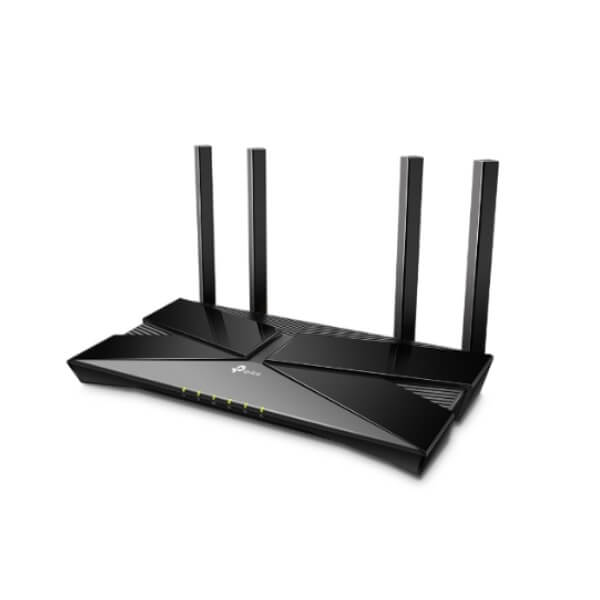

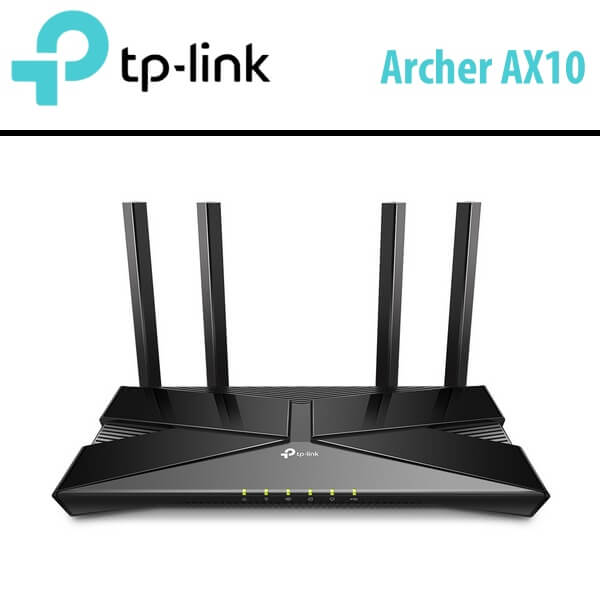

Tplink Archer-AX10 Nigeria is a Wi-fi 6 Router delivering a huge boost in speed and total capacity. Get on the latest WiFi technology to wipe out all the annoying slowdown, and enjoy the future network that loads faster and connects more.

Description

Tplink Archer-AX10 Wi-Fi 6 Router Nigeria

Tplink Archer-AX10 Nigeria is a Wi-fi 6 Router delivering a huge boost in speed and total capacity. Get on the latest WiFi technology to wipe out all the annoying slowdown, and enjoy the future network that loads faster and connects more. Equipped with Archer with latest 1024-QAM and higher symbol rate, Tplink Archer-AX10 Nigeria works to boost speeds for newer devices to the Gigabit level. Connect to a 1 Gbps WiFi network with your phone or laptop, and enjoy speeds comparable to plugging in an Ethernet cable.

Tplink Archer-AX10 Nigeria connects more WiFi devices without dragging down performance. OFDMA allows multiple devices to use one band at the same time, enabling your WiFi to bear more devices compared to the same speed level Wi-Fi 5 router. Wi-Fi 6 increases the efficiency of transmits data, cutting the lag. Enjoy flawless video and audio chats, better gaming speeds, and instantaneous video loading on different devices—all at the same time.

With the beamforming technology and 4 high-gain antennas combine Tplink Archer-AX10 Nigeria generates strong, reliable Wi-Fi signal throughout your home, delivering smooth and stable connections for all your devices. The Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the four Gigabit Ethernet LAN ports for fast, reliable wired connections.

Features

  • Wi-Fi 6 Technology—Archer-AX10 comes equipped with latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.2 6
  • Next-Gen 1.5 Gbps Speeds—Archer-AX10 dual-band router reaches fast speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)1
  • Connect More Devices than Ever Before—Wi-Fi 6 technology simultaneously communicates more data to more devices using OFDMA and MU-MIMO while reducing lag.3 5
  • Triple-Core Processing—The 1.5 GHz tri-core processor ensures communications between your router and all connected devices are smooth and buffer-free.
  • More Reliable Coverage—Achieve the strongest, most reliable WiFi coverage with Archer-AX10 as it focuses signal strength to your devices using Beamforming technology and 4 antennas.
  • Increased Battery Life—Target Wake Time technology reduces your devices’ power consumption to extend their battery life.4
  • Easy Setup—Set up your router in minutes with the powerful TP-Link Tether App
  • Backward Compatible—Archer-AX10 supports all previous 802.11 standards and all WiFi devices

Specifications

WIRELESS
Standards
  • Wi-Fi 6
  • IEEE 802.11ax/ac/n/a 5 GHz
  • IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds
  • AX1500
  • 5 GHz : 1201 Mbps (802.11ax)
  • 2.4 GHz : 300 Mbps (802.11n)
WiFi Range
  • 2-3 Bedroom Houses
  • 4× Fixed High-Performance Antennas
    Multiple antennas form a signal-boosting array to cover more directions and large areas
  • Beamforming
    Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
  • High
  • Dual-Band
    Allocate devices to different bands for optimal performance
  • OFDMA
    Simultaneously communicates with multiple Wi-Fi 6 clients
  • Airtime Fairness
    Improves network efficiency by limiting excessive occupation
  • 4 Streams
    Connect your devices to more bandwidth
Working Modes
  • Router Mode
  • Access Point Mode
HARDWARE
Processor 1.5 GHz Triple-Core CPU

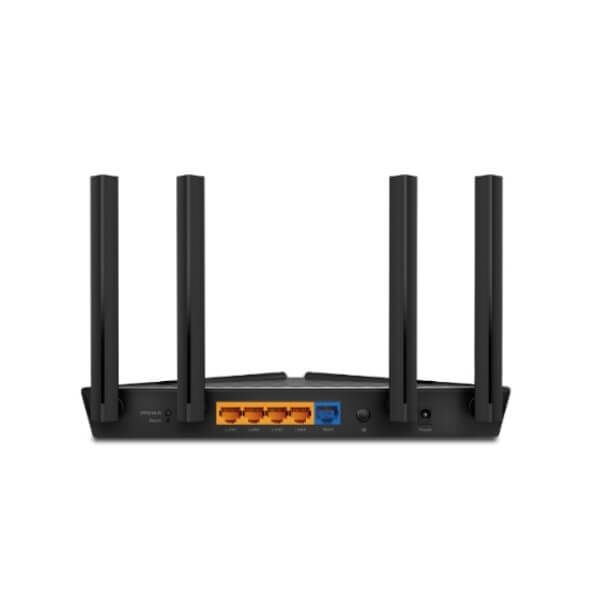

Ethernet Ports
  • 1× Gigabit WAN Port
  • 4× Gigabit LAN Ports
Buttons
  • WPS/Wi-Fi Button
  • Power On/Off Button
  • Reset Button
Power 12 V ⎓ 1 A
SECURITY
WiFi Encryption
  • WPA
  • WPA2
  • WPA3
  • WPA/WPA2-Enterprise (802.1x)
Network Security
  • SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway
Guest Network
  • 1× 5 GHz Guest Network
  • 1× 2.4 GHz Guest Network
VPN Server
  • OpenVPN
  • PPTP
SOFTWARE
Protocols
  • IPv4
  • IPv6
OneMesh OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
Parental Controls
  • URL Filtering
  • Time Controls
WAN Types
  • Dynamic IP
  • Static IP
  • PPPoE
  • PPTP
  • L2TP
Quality of Service QoS by Device
Cloud Service
  • Auto Firmware Upgrade
  • OTA Firmware Upgrade
  • TP-Link ID
  • DDNS
NAT Forwarding
  • Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP
IPTV
  • IGMP Proxy
  • IGMP Snooping
  • Bridge
  • Tag VLAN
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
DDNS
  • TP-Link
  • NO-IP
  • DynDNS
Management
  • Tether App
  • Webpage
PHYSICAL
Dimensions (W×D×H) 10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)
Package Contents
  • Wi-Fi Router Archer-AX10
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide
OTHER
System Requirements
  • Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
  • Cable or DSL Modem (if needed)
  • Subscription with an internet service provider (for internet access)
Certifications FCC
Environment
  • Operating Temperature : 0℃~40℃ (32℉ ~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉ ~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
TEST DATA
WiFi Transmission Power FCC :
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity 5 GHz :

  • 11a 6Mbps : -97dBm
  • 11a 54Mbps : -79dBm
  • 11ac VHT20_MCS0 : -96dBm
  • 11ac VHT20_MCS11 : -66dBm
  • 11ac VHT40_MCS0 : -94dBm
  • 11ac VHT40_MCS11 : -63dBm
  • 11ac VHT80_MCS0 : -91dBm
  • 11ac VHT80_MCS11 : -60dBm
  • 11ax HE20_MCS0 : -95dBm
  • 11ax HE20_MCS11 : -63dBm
  • 11ax HE40_MCS0 : -92dBm
  • 11ax HE40_MCS11 : -60dBm
  • 11ax HE80_MCS0 : -89dBm
  • 11ax HE80_MCS11 : -58dBm

2.4 GHz :

  • 11g 6Mbps : -91dBm
  • 11a 54Mbps : -74dBm
  • 11n HT20_MCS0 : -90dBm
  • 11n HT20_MCS7 : -73dBm
  • 11n HT40_MCS0 : -88dBm
  • 11n HT40_MCS7 : -70dBm
