Description

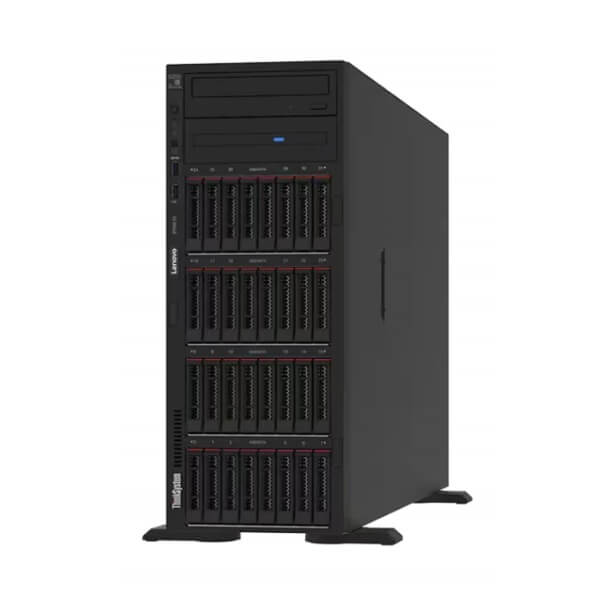

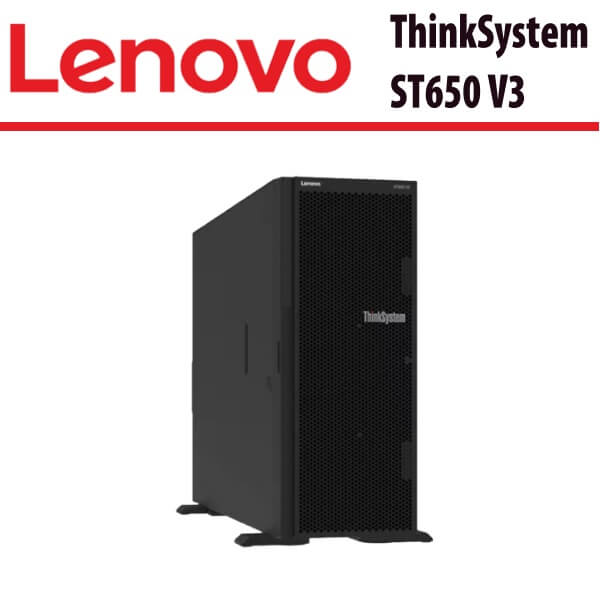

ThinkSystem ST650V3 Tower Server Nigeria

The Lenovo ThinkSystem ST650V3 Nigeria is a high-performance, dual-socket 4U tower server that excels in meeting the demands of small businesses to large enterprises. With powerful configurations supporting up to 4TB of DDR5 memory and up to 24 NVMe drives, it is engineered for maximum performance and flexibility, ensuring businesses can scale seamlessly as their needs evolve. This server is built to handle a broad range of critical workloads including high-performance computing (HPC), virtualization, cloud computing, virtual desktop infrastructure (VDI), enterprise applications, and web services. Whether you’re managing databases, collaboration tools, email, streaming media, or infrastructure security, the ST650V3 is designed for optimum reliability, security, and efficiency.

Powered by the latest 5th and 4th Gen Intel Xeon Scalable processors, this server offers impressive computing power that supports demanding applications and data-heavy tasks. It also boasts GPU support for workloads requiring accelerated computing performance. Designed with future growth in mind, the ThinkSystem ST650V3 ensures that businesses can remain competitive by delivering both high performance and long-term reliability.

For enterprises seeking a server that blends advanced technology with superior flexibility and scalability, the Lenovo ThinkSystem ST650V3 Nigeria is the ideal choice. Its robust architecture guarantees that it will continue to meet the evolving IT demands of any organization, from small businesses to large-scale enterprises.

Key Features

Powerful Performance

Powered by 2x 5^th Gen Intel^® Xeon^® Scalable processors, the ThinkSystem ST650V3 provides maximum performance in a tower form factor and with up to 50% more cores, the ST650V3 performance increased 59% over the previous generation. The latest DDR5 memory and PCIe Gen 5 enhances bandwidth and speed making the ST650V3 the ideal server for enterprise workloads like virtualization and private cloud.

Expendable Capabilities

Add agility to your private cloud or virtualized environment with the highly configurable ST650V3 tower server. With support for up to 9 PCIe Gen 4/Gen 5 slots and up to 32 drives with multiple drive technologies, the ST650V3 can be easily scaled up or down to evolve with your workload demands.

Faster Insights and Reliability

The Lenovo ThinkSystem ST650V3 Nigeria speeds time to insights with 8 single-width (SW) or 4 double-width (DW), or a combination of 4 SW and 4 DW GPUs. This GPU-rich tower server maximizes capabilities with the ability to process large blocks of data in parallel.

All ThinkSystem servers, including the ST650V3, have validated and pre-validated solutions which are designed for reliability and stability.

Ideal for remote installations, the ThinkSystem ST650V3 Nigeria server provides enterprise performance, faster insights, and reliability either in-rack or as a stand-alone server.

Technical Specifications

Machine types	7D7B – 1 year warranty 7D7A – 3 year warranty
Form factor	Tower or 4U Rack
Processor	One or two 5th Gen or 4th Gen Intel Xeon Scalable processors (formerly codenamed “Emerald Rapids” and “Sapphire Rapids” respectively). Supports processors up to 32 cores, core speeds of up to 3.9 GHz, and TDP ratings of up to 250 W.
Chipset	Intel C741 “Emmitsburg” chipset, part of the platform codenamed “Eagle Stream”
Memory	32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs, 9×4 RDIMMs, and 3DS RDIMMs are supported. DIMMs operate at up to 4800 MHz at 1 DPC and up to 4400 MHz at 2 DPC.
Persistent memory	No support
Memory maximum	Up to 4TB by using 32x 128GB 3DS RDIMMs
Memory protection	ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs excluding 9×4 RDIMMs, requires Platinum or Gold processors), and memory mirroring.
Disk drive bays	2.5-inch drive bays: Up to 32x 2.5-inch hot-swap bays (24x NVMe) plus 2x 5.25-inch media bays 3.5-inch drive bays: Up to 16x 3.5-inch hot-swap bays (16x NVMe) (no media bays) Up to 12x 3.5-inch hot-swap bays (12x NVMe) plus 2x 5.25-inch media bays Internal drives for OS boot or drive storage: Internal M.2 module supporting up to two M.2 drives
Maximum internal storage	2.5-inch drives: 245.76TB using 32x 7.68TB 2.5-inch SAS/SATA SSDs 92.16TB using 24x 3.84TB 2.5-inch NVMe SSDs 76.8TB using 32x 2.4TB 2.5-inch HDDs 3.5-inch drives: 352TB using 16x 22TB 3.5-inch HDDs 122.88TB using 16x 7.68TB 3.5-inch SAS/SATA SSDs 61.44TB using 16x 3.84TB 3.5-inch NVMe SSDs
Storage controller	8x onboard SATA ports (Intel VROC SATA RAID, formerly known as Intel RSTe RAID) Up to 12x onboard NVMe ports (includes Intel VROC NVMe RAID, with optional license for non-Intel NVMe SSDs) NVMe Retimer Adapter (supports Intel VROC NVMe RAID) 12 Gb SAS/SATA RAID adapters 8, 16 or 32 ports Up to 8GB flash-backed cache PCIe 4.0 or PCIe 3.0 host interface 12 Gb SAS/SATA HBA (non-RAID) 8-port and 16-port PCIe 4.0 or PCIe 3.0 host interface
Optical drive and tape drive bays	Two half-height 5.25-inch media bays, available in most configurations. Supports two of LTO tape drive, RDX drive, or slim DVD-RW optical drive.
Network interfaces	Two onboard 10GBASE-T Ethernet RJ45 ports based on a Broadcom BCM57416 controller. Additional dedicated Gigabit port for remote management via the XClarity Controller (XCC) management processor.
PCI Expansion slots	9x PCIe slots: 5x PCIe 5.0 and 4x PCIe 4.0 slots. All nine slots are mounted on the system board. Slots 1-8 are full height, full length (FHFL); slot 9 is full height, half length (FHHL). Slots 4-8 require CPU 2 installed. Slot 1: PCIe 5.0 x16 (CPU 1) Slot 2: PCIe 5.0 x8 (x8 physical slot) (CPU 1) Slot 3: PCIe 5.0 x16 (CPU 1) Slot 4: PCIe 5.0 x8 (x8 physical slot) (CPU 1) Slot 5: PCIe 5.0 x16 (CPU 2) Slot 6: PCIe 4.0 x8 (x8 physical slot) (CPU 2) Slot 7: PCIe 4.0 x16 (CPU 2) Slot 8: PCIe 4.0 x8 (x8 physical slot) (CPU 2) Slot 9: PCIe 4.0 x8 (x8 physical slot) (CPU 1) The server also supports the installation of a RAID adapter or HBA in a dedicated area that does not consume any of the PCIe slots.
GPU support	Supports up to 8x single-wide GPUs or up to 4x double-wide GPUs

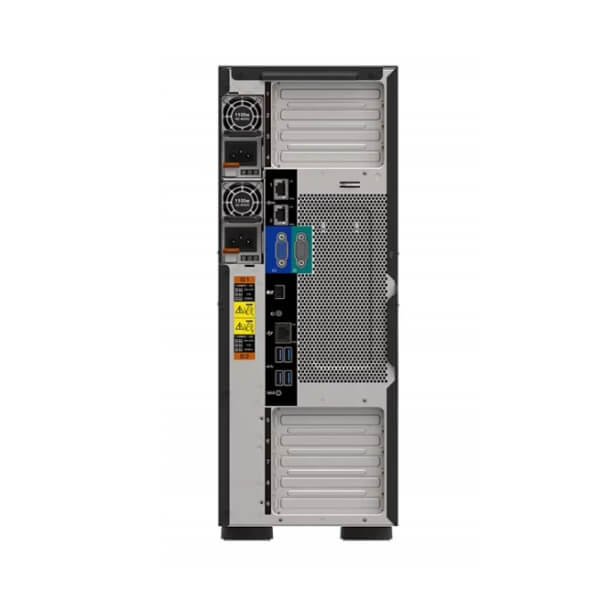

Ports	Front: 1x USB 3.2 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management) Rear: 2x 10GBASE-T RJ45 Ethernet ports, 4x USB 3.2 G1 (5 Gb/s) ports, 1x VGA video port, 1x DB-9 COM serial port, 1x 1GbE RJ-45 systems management port for XCC remote management, External diagnostics port Internal: 2x USB 3.2 G1 connector for operating system or license key purposes
Cooling	Up to 4x single-rotor or dual-rotor hot swap 92 mm fans, configuration dependent. Fans are N+1 redundant. One additional fan integrated in each power supply.
Power supply	Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 750 W, 1100 W, 1800 W and 2600 W AC options, supporting 220 V AC. 750 W and 1100 W options also support 110V input supply. In China only, all power supply options support 240 V DC.
Video	Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 2 management controller. Maximum resolution is 1920×1200 32bpp at 60Hz.
Hot-swap parts	Drives, power supplies, and fans.
Systems management	Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. XClarity Controller 2 (XCC2) embedded management controller , XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XClarity Controller Platinum to enable remote control and other functions.
Security features	Power-on password, administrator’s password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). Optional lockable front security door and optional chassis intrusion switch.
Operating systems supported	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi.
Limited warranty	Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9×5 next business day (NBD).
Service and support	Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications.
Dimensions	Width: 175 mm (6.9 in.), height: 462 mm (18.2 in.), depth: 734 mm (28.9 in.).
Weight	39.1 kg (86.2 lb) maximum
