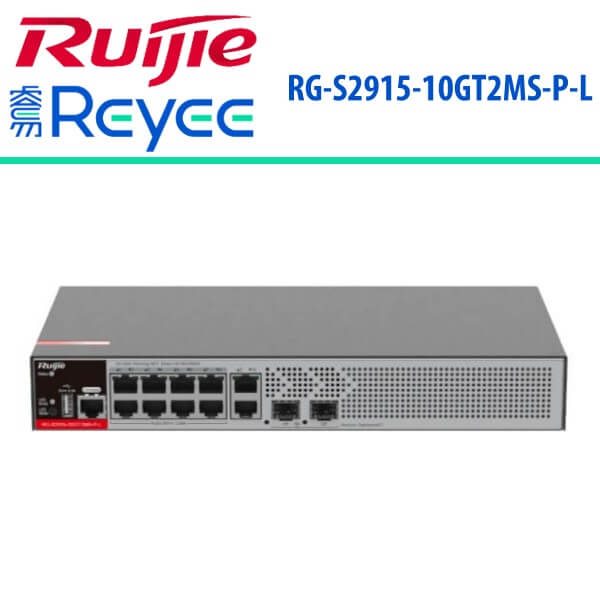

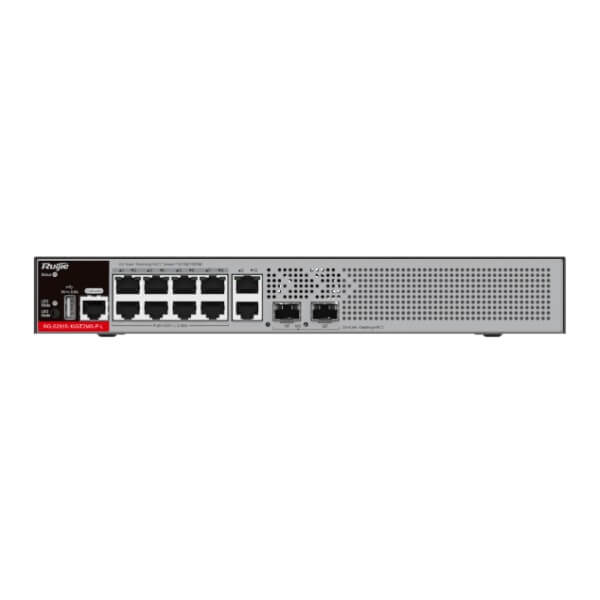

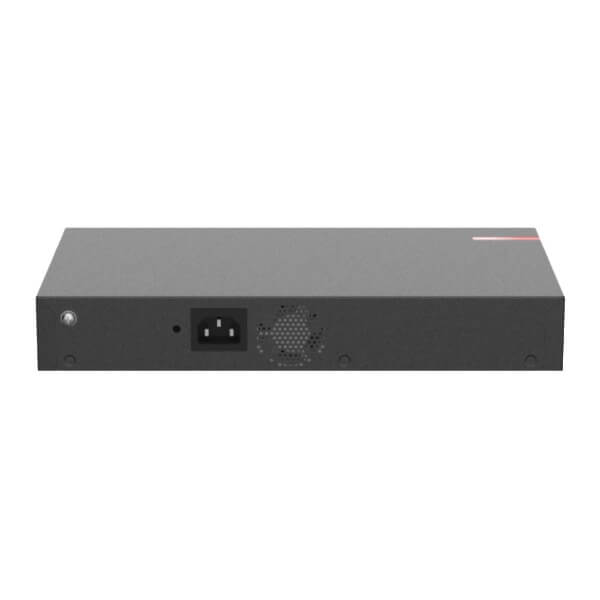

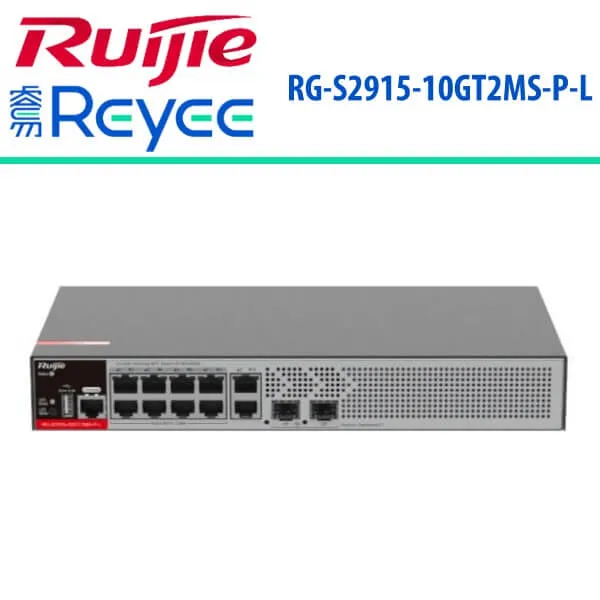

Ruijie RG-S2915-10GT2MSPL Nigeria

Rating

Ruijie RG-S2915-10GT2MSPL Nigeria

The Ruijie RG-S2915-10GT2MSPL Nigeria switches support the Ethernet Ring Protection Switching (ERPS) technology, which is an international L2 link redundancy backup protocol designed for the core Ethernet.

Description

Ruijie RG-S2915-10GT2MSPL Network Switch Nigeria

With the Rapid Link Detection Protocol (RLDP), the Ruijie RG-S2915-10GT2MSPL Nigeria series switches can quickly detect the link connectivity and unidirectional optical fiber links. The port loop detection function helps the switches prevent network failures caused by loops resulting from unauthorized port connection to hubs.

The Ruijie RG-S2915-10GT2MSPL Nigeria switches support the Ethernet Ring Protection Switching (ERPS) technology, which is an international L2 link redundancy backup protocol designed for the core Ethernet.

Features

Strong Surge Protection Capability

The Ruijie RG-S2915-10GT2MSPL Nigeria switches are capable of suppressing 10 kV surge for ports. The strong surge protection capability reduces the probability that ports are damaged by surge and improves customer network stability.

Uplink 2.5GE Ports

The uplink ports of the Ruijie RG-S2915-10GT2MSPL Nigeria series switches support the 2.5 Gbit/s rate. Compared with the 1 Gbit/s uplink rate, the switches can connect to more terminals in HD monitoring scenarios and has better ability to cope with sudden burst data.

High Reliability

  • The RG-S2915-L series switches support the Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP), which help the switches achieve fast convergence, improve the fault tolerance capability, and ensure stable network operation and link load balancing.
  • With the Rapid Link Detection Protocol (RLDP), the Ruijie RG-S2915-10GT2MSPL Nigeria series switches can quickly detect the link connectivity and unidirectional optical fiber links. The port loop detection function helps the switches prevent network failures caused by loops resulting from unauthorized port connection to hubs.
  • The Ruijie RG-S2915-10GT2MSPL Nigeria switches support the Ethernet Ring Protection Switching (ERPS) technology, which is an international L2 link redundancy backup protocol designed for the core Ethernet.
  • The RG-S2915-L series switches provide an advanced hardware CPU protection mechanism : CPU protect policy (CPP). It classifies data traffic sent to the CPU, processes the traffic by queue priority, and limits the bandwidth rate as required.
  • The RG-S2915-L series switches adopt the Network Foundation Protection Policy (NFPP) technology to limit the rate of ARP packets, ICMP requests, DHCP requests, and other packets sent from users to networks.

Quietness and Green Energy Saving

  • The switches fully get rid of loud noise produced by switches deployed in offices and excessive energy consumption arising from the mass deployment of access devices.
  • The energy efficient Ethernet (EEE) is another highlight of the RG-S2915-L series switches.
  • Some models of the Ruijie RG-S2915-10GT2MSPL Nigeria series switches adopt the fanless design, which ensures no noise and no forced airflow, preventing dust and chemical pollutants in the air from entering the devices and causing corrosion and static electricity accumulation.
  • In the perception of noise, 30 dB to 40 dB is an ideal sound level for a quiet environment. Ruijie products are tested in accordance with the national standard GB/T 18313-2001 and the noise meets the standard of sleeping in the living room at night.

Ease of Network Maintenance

The Ruijie RG-S2915-10GT2MSPL Nigeria series switches support cloud management and can bring customers simplified O&M management and user experience :

Ease of networking :  Only a PC or mobile phone available for Internet access is required to complete the device deployment. The switches support plug and play.

Ease of O&M : The O&M is simple. The network can be managed at any time. You can manage the network wherever you go, and both the wired and wireless gateways are under your control.

Ease of monitoring : You can view the network health and device details (system status, traffic trend, connectivity, power supply status, etc.) at any time.

Ease of authentication : Relying on the cloud, the whole network can provide authentication for Internet access, without any additional software and servers.

Technical Specs

Model RG-S2915-10GT2MS-P-L
System Specifications
Switching Capacity 30Gbps
Packet Forwarding Rate 22.5 Mpps
Fixed Service Ports
  • 10 × 10/100/1000Base-T Ethernet ports with auto-negotiation
  • 2 × 2.5GE/1GE SFP ports
Fixed Management Ports 1 × RJ45 console port, 1 × USB port
Cable Hot Swapping Supported by service interfaces and power ports
CPU ARM A9 CPU, 1.2GHz
SDRAM 512MB
MAC Address 16000
ARP Table 512
Jumbo Frame 9126
Routing Table Size (IPv4/IPv6) 64
ACL Entries 500
Dimensions and Weight
Device Size (W × D × H) 297 mm × 170 mm × 44.5 mm
Weight 2.5 kg
Rack Size 1 RU
Installation Mode Mounted on a workbench/wall/in a rack (cabinet)
Power Supply and Consumption
Number of Fixed Power Modules 1
Maximum Power Consumption 141 W (the PoE power is 125 W)
Rated Input Voltage Range 100 V AC to 240 V AC, 50 Hz to 60 Hz
Maximum Input Voltage Range 90 V AC to 264 V AC, 50 Hz to 60 Hz
PoE PoE/PoE+ supported
Environment and Reliability
Number of Fixed Fans 1
Heat Dissipation Air-cooled heat dissipation
Noise ≤ 37 dB
Fan Speed Adjustment Supported
Operating Temperature 0°C to 45°C
Storage Temperature -40°C to 70°C
Temperature Monitoring Supported
Temperature Alarm Supported
Overtemperature Protection Supported
Operating Humidity 10% to 90% RH (non-condensing)
Storage Humidity 5% to 95% RH (non-condensing)
