Description
Ruijie RG-RAP6262 Outdoor Wireless Access Point Nigeria
The RG-RAP6262(G) is an outdoor wireless access point (AP) designed by Ruijie Networks for high-speed wireless networks. Adhering to the latest 802.11ax standard, the AP delivers an access rate of up to 1200Mbps@5G + 575Mbps@2.4G. RAP6262(G) features security, radio frequency (RF) control, mobile access, Quality of Service (QoS) and seamless roaming. In addition, it can be managed by RG-WS series wireless access controllers (ACs) to implement wireless data forwarding, security, and access control.
The IP68 design of the Ruijie RG-RAP6262 Nigeria adapts to inclement outdoor environments such as the cold and humidity. This substantially simplifies installation and maintenance. RAP626 supports PoE to take over challenges in a wide variety of deployment scenarios, including large-scaled campuses, enterprises, hospitals and Wi-Fi hotspots.
Features
- ‘UFO’ design, a perfect blend of Wi-Fi 6 technology and artwork
- IP68 protection, rock-solid in harsh environments
- Omni-directional coverage with long range
- Easily add extra outdoor Wi-Fi with Reyee Mesh

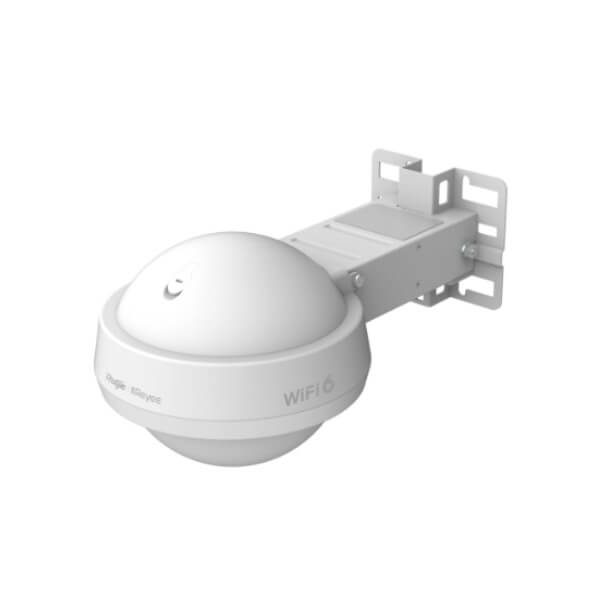

- Rack-separated mounting design, easily installation on high
Technical Specs
Dimensions (L xW x H)
222 mm × 200 mm × 166 mm (8.74 in. x 7.87 in. x 6.54 in.)
Access Rate : Built-in antenna : 1775 Mbps
- 2.4 GHz : up to 575 Mbps
- 5 GHz : up to 1200 Mbps
Operating Frequency
- 802.11b/g/n/ax : 2.4 GHz to 2.483 GHz
- 802.11a/n/ac/ax : 5.150 GHz to 5.350 GHz, 5.47 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz(Country-Specific)
Maximum Transmit Power
500 mW (Country-Specific)
Antenna Type
Built-in omnidirectional antenna
Antenna Gain
- 2.4 GHz : 3 dBi
- 5 GHz : 4 dBi
Beam Width
- 2.4G : E : 30°; H : 360°
- 5G : E : 30°; H : 360°
Ports
- Two 10/100/1000 Base-T Ethernet ports
- Uplink LAN 1/PoE port supports PoE
- FIT/FAT Mode Not supported
LED System and port status indicators
Power Supply 12 V DC/2 A IEEE 802.3at (PoE+)
