Ruijie rg-rap2260e nigeria

The Ruijie rg-rap2260e nigeria is a high-performance Wi-Fi 6 AP for indoor large-area Wi-Fi coverage scenario.  The ruijie rg rap2260e lagos supports dual-band operate concurrently and MU-MIMO

Description

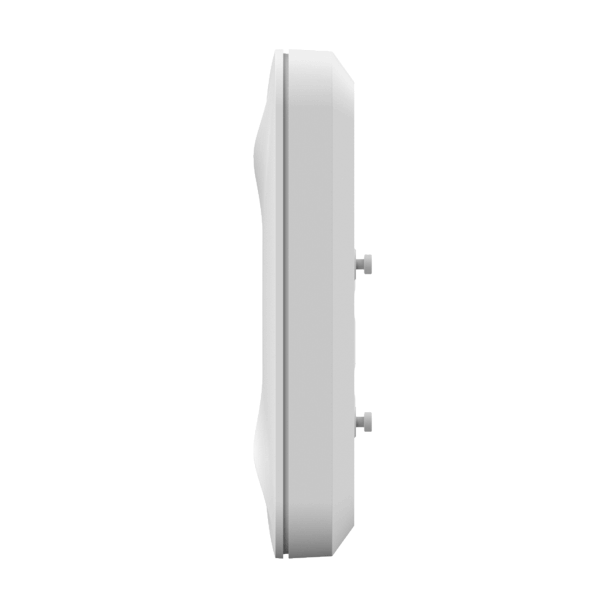

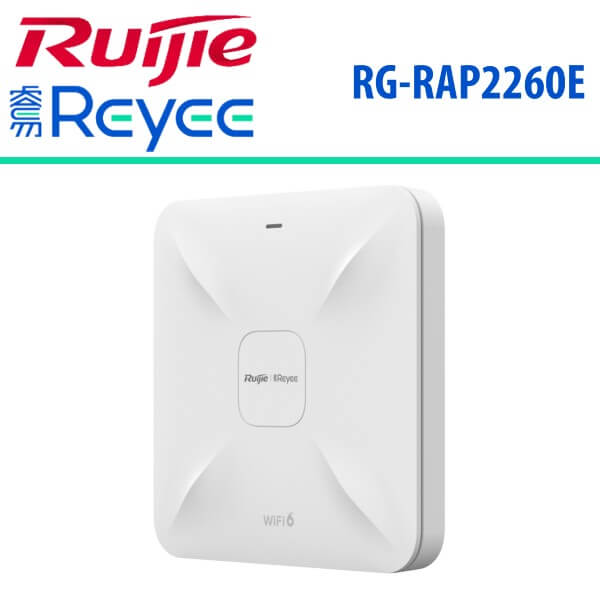

Ruijie rg-rap2260e access point nigeria

The ruijie rg-rap2260e nigeria is a high-performance Wi-Fi 6 AP for indoor large-area Wi-Fi coverage scenario.  The ruijie rg-rap2260e nigeria supports dual-band operate concurrently and MU-MIMO, but it supplies more advanced technology about quad-stream. So it can provide higher speed wireless access of 800Mbps at 2.4GHz, 2402Mbps at 5GHz and up to 3202Mbps per AP. One of the ethernet ports is upgraded to multi-gigabit Ethernet (2.5GE) port to break through the bottleneck of transmission performance. The coverage of ruijie rg-rap2260e nigeria is over 25 meters, makes it an ideal choice for many wireless scenarios, especially in offices, commercial industry, hotels, service scenarios, etc.

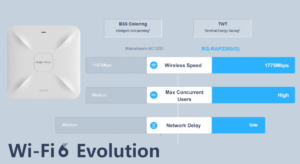

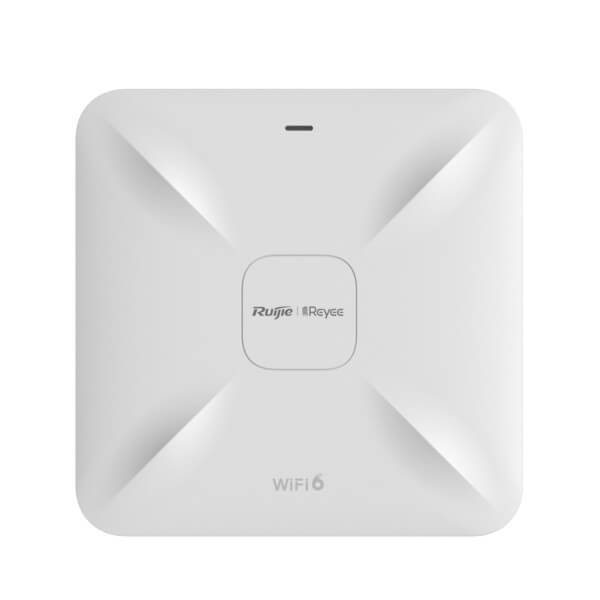

Ruijie Rg Rap2260e Accesspoint Abuja

Ruijie Rg Rap2260e Accesspoint Abuja

Features

  • Build ultra-high performance network with 3202 Mbps wireless throughput.
  • Client connections over 500, provide higher practical performance for users as well.
  • Boost Internet Speed with 2.5 Gbps uplink.
  • Easily install extra AP with Reyee Mesh technology.
  • Set up Wi-Fi 6 network in 3 minutes with Ruijie Cloud APP.

Specifications

Hardware specifications
radio Dual-stream dual-band
Protocol Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n
Operating Bands
  • 802.11b/g/n : 2.4G ~ 2.4835GHz
  • 802.11a/n/ac/ax : 5G : 5,150~5,350GHz,5.725~5,850GHz (country specific)
Antenna Internal antennas (2.4G : 3dBi, 5G : 3dBi)
Spatial Streams
  • 2.4G 4x4MIMO
  • 5G 4x4MIMO
Max Throughput
  • Up to 800Mbps at 2.4G
  • Up to 2402Mbps at 5G
  • 3,202Gbp per AP
Modulation
  • OFDM :
  • BPSK@6/9Mbps, QPSK@12/18Mbps, 16QAM@24Mbps, 64QAM@48/54Mbps
  • DSSS :
  • DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps
  • MIMO-OFDM :
  • BPSK, QPSK, 16QAM, 64QAM, 256QAM and1024QAM
OFDMA
Receive Sensitivity 11b :

  • -96dBm(1Mbps),
  • -93dBm(5Mbps),
  • -89dBm(11Mbps)
11a/g :

  • -91dBm(6Mbps),
  • -85dBm(24Mbps),
  • -80dBm(36Mbps),
  • -74dBm(54Mbps)
11n :

  • -90dBm(MCS0),
  • -70dBm(MCS7),
  • -89dBm(MCS8),
  • -68dBm(MCS15)
11ac :

  • 20MHz : -88dBm(MCS0), -63dBm(MCS9)
  • 40MHz : -85dBm(MCS0), -60dBm(MCS9)
  • 80MHz : -85dBm(MCS0), -60dBm(MCS9)
Wi-Fi 6 :
80MHz : -82dBm(MCS0), -57dBm(MCS9), -52dBm(MCS11)
Maximum output power of the transmitter
(single stream)
  • 2.4GHz (2.4~2.4835GHz) : 23dBm
  • 5GHz (5.150~5,250GHz, 5.725~5,850GHz) : 23dBm (country-specific, comply with local laws)
Adjustable Power 1dBm
Dimensions 220 × 220 × 35mm (excluding mounting kits)
Weight 1.05kg (excluding mounting kits)
Service Ports
  • 1 10/100/1000M/2.5G Base-T Ethernet ports supports PoE;
  • 1 10/100/1000M Base-T, Ethernet port
LED Indicator Single indicator (green light)
Power Supply Local power supply, DC 12V/1.5A (Note : The power adapter is sold as an optional accessory), 802.3at PoE (Warning : 802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier)
Power Consumption 25.4W
Environment Operating temperature : 0°C~40°C
Storage temperature : -40°C~70°C
Operating humidity : 5%~95% (non-condensing)
Storage humidity : 5%~95% (non-condensing)
Installation Ceiling/wall-mountable
Safety Standard GB4943, IEC 62368-1
EMC Standard GB9254, EN301 489, EN50155, EN50121, EN55032, EN61000, EN55035
Vibration Standard IEC61373
Radio Standard EN300 328, EN301 893
MTBF >400000H
Software Features
Operating Mode AP mode and routing mode
Wi-Fi Maximum number of clients : 512
Recommended number of clients : 120
Up to 8 SSIDs
Support SSID hiding
Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
SSID-based and radio-based STA limit
Support Layer 2 user isolation
Roaming Support Layer 2 and Layer 3 roaming
Security Support PSK authentication
Support static blacklist and whitelist
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Routing Support static IP address, DHCP, PPPoE Dial Up
Management and maintenance Support unified networking of all network equipment
Support local or remote management with Ruijie Cloud app
Support local management with web
Support remote management with Ruijie Cloud platform
Platform management features Automatic RF adjustment via the platform
Unified configuration via the platform
Unified monitoring via the platform



Datasheet Download
