Ruijie rg-rap2200f nigeria

The Ruijie rg-rap2200f nigeria is dual-band ceiling mount Access Point is a high-performance ceiling mount AP for indoor large-area Wi-Fi coverage scenarios.

Description

Ruijie rg-rap2200f access point nigeria

The ruijie rg-rap2200f nigeria is dual-band ceiling mount AP is a high-performance ceiling mount AP for indoor large-area Wi-Fi coverage scenarios. Compliant with 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocol, ruijie rg-rap2200f nigeria supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas. It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP.

The ruijie rg-rap2200f nigeria supports Ruijie’s self-organizing Network feature. With the Ruijie Cloud app, users can quickly complete the device deployment and configuration, remote management, operation and maintenance of the entire network, which greatly reduces the investment of equipment cost, labor cost and time cost in the process of wireless network construction.

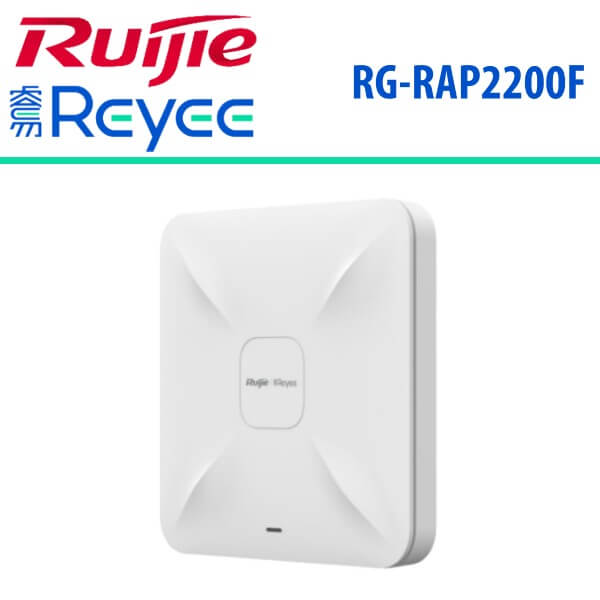

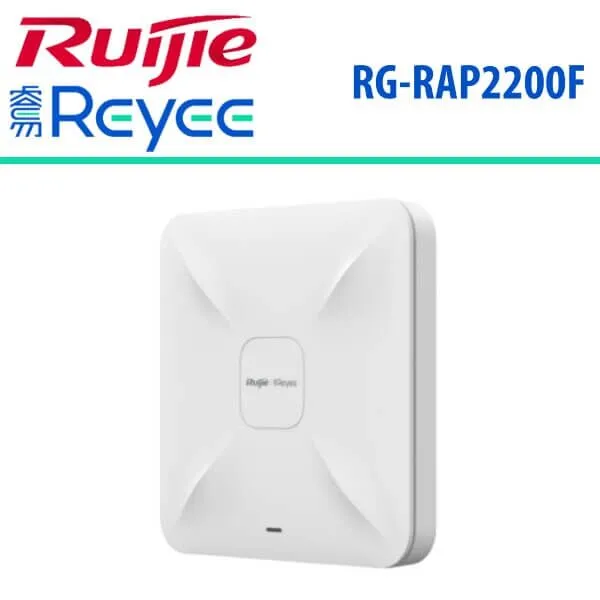

Ruijie Rg Rap2200f Accesspoint Nigeria

Ruijie Rg Rap2200f Accesspoint Nigeria

Features

  • 11ac Wave2 technology
  • Auto-provisioning via Self-Organizing Network : Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between gateways, switches, and wireless APs without the need for controllers or Internet access;
  • Lifetime free Ruijie Cloud management : Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App;
  • More LAN Port : Two LAN interfaces are provided to support more services;
  • Seamless layer 3 roaming
  • Industrial Design : Robust casing, Provide better strength and safety for products

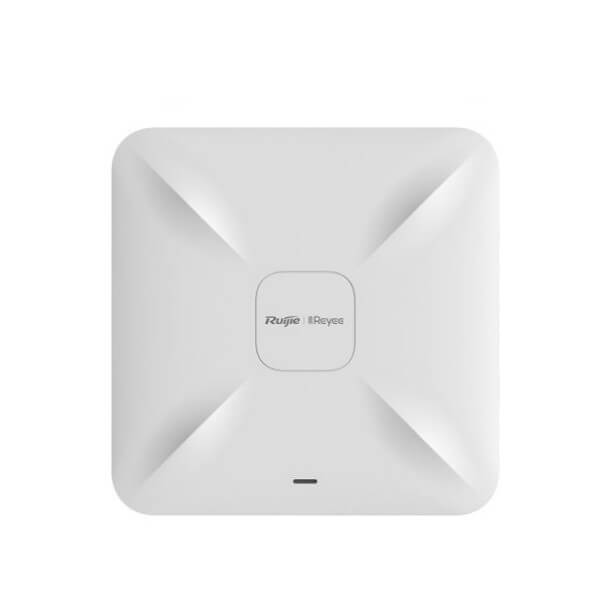

Ruijie Rg Rap2200f Accesspoint Abuja

Ruijie Rg Rap2200f Accesspoint Abuja

Specifications

Model RG-RAP2200(F)
Hardware specifications
Radio Dual-stream dual-band
Protocol Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands
  • 802.11b/g/n :2.4G ~ 2.4835GHz
  • 802.11a/n/ac : 5G:5.150~5.350GHz,5.725~5.850GHz
Antenna Array antennas(2.4G : 2dBi,5G : 2dBi)
Spatial Streams 2.4G 2x2MIMO  5G 2x2MIMO
Max Throughput
  • Up to 400Mbps at 2.4G
  • Up to 867Mbps at 5G
  • 1.267Gbp per AP
Modulation
  • OFDM : BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
  • DSSS : DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps
  • MIMO-OFDM : BPSK, QPSK, 16QAM, 64QAM and 256QAM
Receive Sensitivity
  • 11b : -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps)
  • 11a/g : -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps)
  • 11n : -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15
  • 11ac HT20 : -83dBm (MCS0), -57dBm (MCS9)
  • 11ac HT40 : -79dBm (MCS0), -57dBm (MCS9)
  • 11ac HT80 : -76dBm (MCS0), -51dBm (MCS9)
Maximum Transmit Power
  • 5.725~5.850GHz:≤20dBm (EIRP)
  • 5.150~5.350GHz:≤20dBm (EIRP)
  • 2.4~2.4835GHz:≤20dBm (EIRP)
Adjustable Power 1dBm
Dimensions 194mm×194mm×35mm (excluding mounting kits)
Weight 0.45kg (excluding mounting kits)

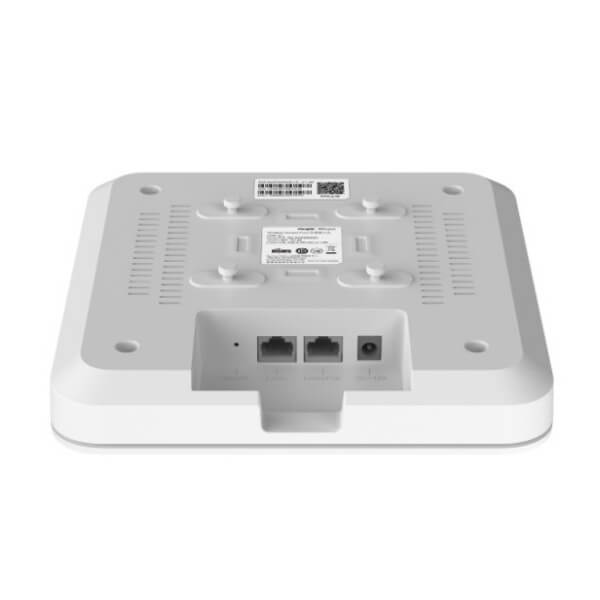

Service Ports 2 10/100 Base-T Ethernet ports, PoE/LAN1 port supports PoE
Management Port NA
LED Indicator NA
Power Supply Single indicator (green light)
Power Consumption
  • Local power supply, DC 12V/1.5A (Note : The power adapter is sold as an optional accessory)
  • 802.3af/802.3at PoE
Environment ≤ 12.95W
Operating temperature : 0°C~40°C
Storage temperature : -40°C~70°C
Operating humidity : 5%~95%(non-condensing)
Installation Storage humidity : 5%~95%(non-condensing)
Safety Standard GB4943, IEC 60950-1
EMC Standard GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035
Vibration Standard IEC61373
Radio Standard SRRC certification, EN300 328, EN301 893
MTBF >400000H
Software Features
Operating Mode AP mode and routing mode
WLAN Maximum number of clients : 110
Recommended number of clients : 40 (8 at 2.4GHz, 32 at 5GHz)
Up to 8 SSIDs
  • Support SSID hiding
  • Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
SSID-based and radio-based STA limit
Support Layer 2 user isolation
Roaming Support Layer 2 and Layer 3 roaming
Security Support PSK authentication
Support static blacklist and whitelist
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Routing Support static IP address, DHCP, PPPoE Dial Up
Management and maintenance
  • Support unified networking of all network equipment
  • Support local or remote management with Ruijie Cloud app
  • Support local management with web
  • Support remote management with Ruijie Cloud platform
Platform management features Automatic RF adjustment via the platform
Unified configuration via the platform
Unified monitoring via the platform
