Ruijie rg-rap2200e Nigeria

Rating

Ruijie rg-rap2200e nigeria

The ruijie-rg-rap2200e lagos is dual-band ceiling mount AP is a high-performance ceiling mount AP for indoor large-area Wi-Fi coverage scenarios. The device supports 802.3af/at PoE and 12V DC local power supply.

Description

Ruijie rg-rap2200e access point nigeria

The ruijie rg-rap2200e nigeria is dual-band ceiling mount AP is a high-performance ceiling mount AP for indoor large-area Wi-Fi coverage scenarios. The device supports 802.3af/at PoE and 12V DC local power supply. The dual LAN ports design facilitates the expansion of third-party devices to meet the needs of more networking scenarios. Compliant with 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocol, RG-RAP2200 supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas. It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP. Its coverage of over 20 meters makes it an ideal choice for many wireless scenarios, especially in offices, commercial industry, hotels, service scenarios, etc.

The ruijie rg-rap2200e nigeria has industrial product design, iconic edges and breathing light makes the product more recognizable. Adopting the non-directional installation design, the new mounting kits support various installation methods including on desktop, ceiling, wall, and pole, which improves the versatility of installation, simplifies the installation steps, reduces the installation difficulty, and greatly improves the installation experience of the device. RG-RAP2200 Series supports Ruijie’s self-developed smart networking feature. With the Ruijie Cloud app, users can quickly complete the device deployment and configuration, remote management, operation and maintenance of the entire network, which greatly reduces the investment of equipment cost, labor cost and time cost in the process of wireless network construction.

The ruijie rg-rap2200e nigeria can perform comprehensive local management or remote management of the equipment in the entire network via the Ruijie Cloud app, equipment EWEB management, Ruijie Cloud platform, etc. Users can also share the network to third party for network hosting and collaborative management, thereby achieving simpler, easier to use, more secure and convenient enterprise network operation and maintenance.

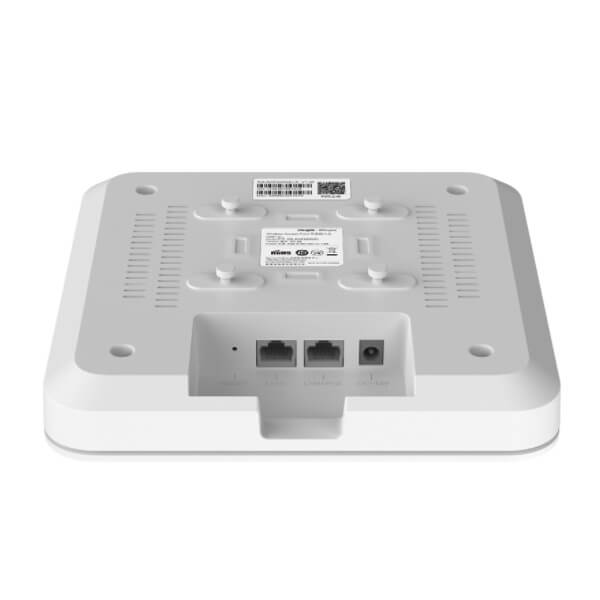

Ruijie Rg Rap2200e Accesspoint Abuja

Ruijie Rg Rap2200e Accesspoint Abuja

Features

  • 11ac Wave2 technology
  • Auto-provisioning via Self-Organizing Networ; Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between gateways, switches, and wireless APs without the need for controllers or Internet access;
  • Lifetime free Ruijie Cloud management : Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App;
  • More LAN Port : Two LAN interfaces are provided to support more services;
  • Seamless layer 3 roaming
  • Industrial Design : Robust casing, Provide better strength and safety for products

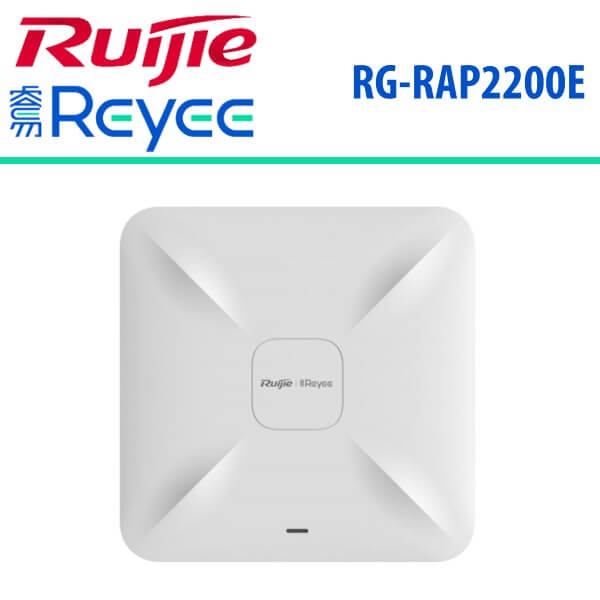

Ruijie Rg Rap2200e Accesspoint Nigeria

Ruijie Rg Rap2200e Accesspoint Nigeria

Specifications

Description AC1300 Dual Band Ceiling Mount Access Point, 867Mbps at 5GHz + 400Mbps at 2.4GHz, 2 10/100/1000base-t Ethernet uplink port, Internal Antennas, support 802.11a/b/g/n/ac Wave1/Wave2
Protocol Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands
  • 802.11b/g/n :2.4G ~ 2.4835GHz
  • 802.11a/n/ac : 5G:5.150~5.250GHz,5.725~5.850GHz (country specific)
Throughput
  • Up to 400Mbps at 2.4G
  • Up to 867Mbps at 5G
  • 1.267Gbp per AP
Dimensions 194mm×194mm×35mm (excluding mounting kits)
Weight 0.45kg (excluding mounting kits)
Service Ports 2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE
Power Supply Single indicator (green light)
Power Consumption Local power supply, DC 12V/1.5A (Note : The power adapter is sold as an optional accessory) 802.3af/802.3at PoE
Operating Mode AP mode and routing mode



Datasheet Download
