Ruijie rg-est310 nigeria

The Ruijie rg-est310 nigeria features an 802.11ac wireless bridge for video surveillance backhaul or remote wireless transmission in scenarios such as elevators, tower cranes, factories, campuses, and construction sites.

Description

Ruijie rg-est310 access point nigeria

The ruijie rg-est310 nigeria features an 802.11ac wireless bridge for video surveillance backhaul or remote wireless transmission in scenarios such as elevators, tower cranes, factories, campuses, and construction sites. Operating at 5GHz, RG-EST310 supports two spatial streams (2×2 MIMO technology) and provides up to 867Mbps throughput, which can fully meet the data link bandwidth requirements of various services. The RG-EST310 lagos consists 2 devices, including the recorder-end and camera-end device. They are paired by default and can be deployed without requiring any configurations. When used for video surveillance backhaul, it is recommended to connect a switch or hard disk recorder to the recorder-end and connect a network camera to the camera-end.

The ruijie rg-est310 nigeria can be managed via the app, including viewing the network topology and modifying configurations, which has completely revolutionized the conventional contact-type bridge configuration method. Bridge maintenance no longer requires working at heights, reducing the difficulty of maintaining bridges to an unprecedented level. With the four-sided curved edges design, ruijie rg-est310 nigeria fully utilizes the compact size and offers an exquisite exterior design. Straps are provided for easy equipment installation. The casing of the device is optimized to deliver better dustproof and waterproof performance, providing IP65 protection. The weather-resistant materials enable the casing to stay robust for a long time under harsh conditions such as exposure to the sun, wind, acid and alkali corrosion. Moreover, with the industrial materials adopted for the device its reliability and durability is fully guaranteed under various complex environments such as hot and humid weather, dry and cold weather, sun exposure, rain. The ruijie rg-est310 nigeria is built-in with wireless product management software. Users can view all wireless bridge information and the topology by logging in to any bridge device.

Ruijie Rg Est310 Accesspoint Abuja

Ruijie Rg Est310 Accesspoint Abuja

Features

  • Auto-provisioning via self-network: RG-EG series realizes the industry-leading auto-discovery and auto-networking features for gateways, switches and wireless
  • Lifetime free Ruijie Cloud managed: Remote fault alarm, one-click operation and maintenance on Ruijie Cloud App
  • High Reliability: provide dustproof and waterproof IP54 protection for outdoor environments
  • Zero Configuration: RG-EST310 V2 consists 2 devices paired by default and can be used without requiring any configurations

Easy Installation

The ruijie rg-est310 nigeria is easy to install with straps provided for easy equipment installation and improve implementation efficiency.

Zero Configuration

RG-EST310 consists 2 devices, including the recorder-end and camera-end device. They are paired by default and can be used without requiring any configurations.

Convenient Maintenance

ruijie rg-est310 nigeria can automatically adjust the channels and optimize the power based on the operating environment, thereby reducing the maintenance workload caused by environmental changes. The software and hardware self-healing design can effectively prevent system hang and unexpected connection loss. RG-EST310 supports app management, which revolutionizes the conventional contact-type bridge configuration mode. Bridge maintenance no longer requires working at heights, reducing the difficulty of maintaining bridges to an unprecedented level. The device is built-in with wireless product management software WSP-EST310. Users can view all bridge information and the topology by logging in to any bridge device.

IP65 Rating

RG-EST310 can provide dustproof and waterproof IP65 protection for outdoor environments and operate in a wide temperature range from –30°C to 50°C. The high-quality weather-resistant materials enable RG-EST310 to maintain excellent structural strength without embrittlement, yellowing, or deformation for long-term outdoor operation.

High Data Transmission Performance

The ruijie rg-est310 nigeria boasts high data transmission bandwidth, low latency, and load balancing, delivering excellent performance even when it is connected to multiple surveillance channels concurrently

Ruijie Rg Est310 Accesspoint Lagos

Ruijie Rg Est310 Accesspoint Lagos

Specifications

Hardware specifications
RAM / Flash 64MB / 8MB
Radio 5GHz, dual-stream single-band 2×2
Operating Band 802.11a/n/ac: 5.150~5 .350GHz, 5.470~5.725GHz , 5.725~5 .850GHz (country specific)
Antenna Built-in directional antennas, 10dBi
Polarization Horizontal: 60°, Vertical: 30°
Spatial Streams 2
Maximum Throughput Up to 867Mbps at 5GHz
Max. Transmit Power ≤400mW (26dBm)


Dimensions

147mm(D)×76mm(W)×37mm(H) (Dimensions per device) (Same size for the transmitter and receiver, H : height of the device excluding the mounting kits)
Weight 0.35kg

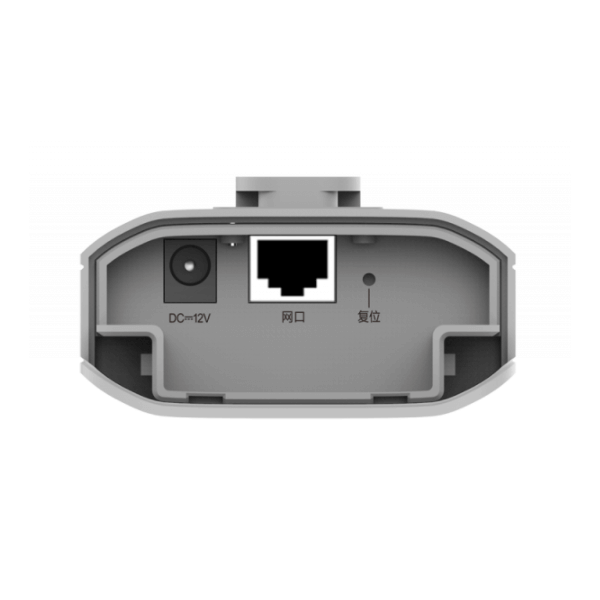

Ports
  • 1 10/100Base-T Ethernet port, supports 24VDC non-standard PoE
  • 1 DC port, supports 12VDC power supply
Hardware Button 1 reset button


Status Indicators

  • System indicator : 1
  • Port indicator : 1
  • Bridge signal strength indicators : 3
Power Supply Support 12VDC power supply and 24VDC non-standard PoE
Power Consumption ≤7W




Environment

  • Operating temperature : -30°C ~ 55°C (-22°F ~ 131°F)
  • Storage temperature : -40°C~70°C (-40°F ~ 158°F)
  • Operating humidity : 5%~95% (noncondensing)
  • Storage humidity : 5%~95% (noncondensing)
Installation Wall-mounted/ Pole-mounted (straps provided)
IP Rating IP54
Lightning Protection 4KV
Radio Standard SRRC certification
Software Features


Automatic Bridging

Support

The recorder-end and camera-end are automatically paired for bridging by default

Device Configuration and Management Support App/Web configuration
QR Code Login Users can log in to the device configuration interface by scanning the QR code of the device using the app
Self-healing Automatic restart upon equipment failure
Automatic Channel Adjustment Automatically adjust the channel upon power-on



Datasheet Download
