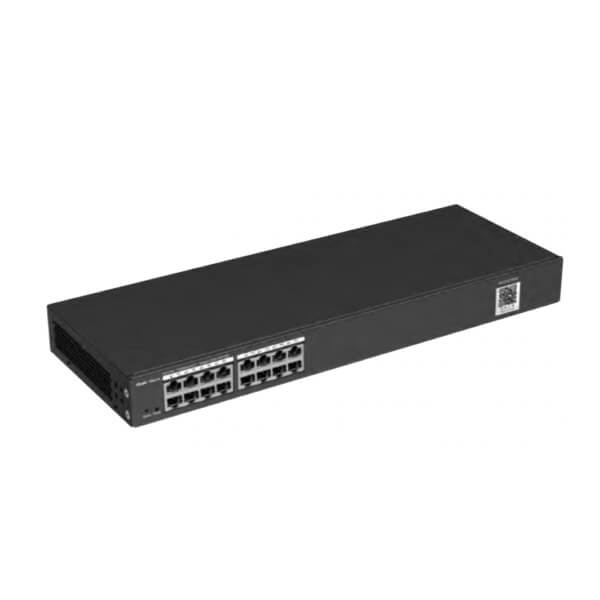

Ruijie rg-es216gc Nigeria

Rating

Ruijie rg-es216gc nigeria

The Ruijie rg-es216gc nigeria smart surveillance switch offer a variety of port options to meet the needs of video surveillance networks of different scales. In addition, Ruijie Reyee smart surveillance switch provides simple and easy-to-use management features

Description

Ruijie rg-es216gc smart surveillance switch nigeria

The ruijie rg-es216gc nigeria smart surveillance switch offer a variety of port options to meet the needs of video surveillance networks of different scales. In addition, Ruijie Reyee smart surveillance switch provides simple and easy-to-use management features while offering plug and play with default factory configuration, which can quickly locate the surveillance network faults, initiate port restart, perform VLAN configuration, etc. The ruijie rg-es216gc nigeria has Ruijie Cloud app and Ruijie Cloud platform remote management is also supported, making the operation and maintenance of the surveillance network easier and more convenient, while reducing operation and maintenance costs

Features

  • 16-Port gigabit cloud managed non-PoE switch
  • Cost-Effective Smart Cloud Managed Switches
  • IP Camera Recognition, Unique Value for CCTV Network
  • Automatic Loop Prevention Ensures Service Continuity
  • Lifetime management on Ruijie Cloud anytime anywhere

High compatibility for network cable

The ruijie rg-es216gc nigeria Smart surveillance switch not only support cat5/ 5e/6 network cables, but also support data transmission over network cables of non-standard materials (such as steel/iron with diameter 0.38/ 0.40/ 0.45), facilitate the construction and cabling.

High surge protection for device stability

The ports of the smart surveillance switches provide surge protection up to 6KV, reducing the possibility of damage from surges and improving the stability of customer network equipment.

Fast fault locating

Smart monitoring switches support to display the network topology of the entire network and monitor the network status in real time. When a network camera failure occurs, the location and cause of the fault can be displayed in time, and the notification can be sent through the mobile application.

Configure VLANs as required

In villa/store/office network, network camera and wireless AP can be connected to the same switch. Without network isolation, there may be problems such as camera screen lag and slow wireless speeds. The ruijie rg-es216gc nigeria provides convenient and flexible VLAN division, which can automatically divide different VLANs according to the type of device connected to the port, so that the monitoring network and data network do not interfere each other, improving the stability of the entire network.

Specifications

Switching capacity 32Gbps
Switching Cache 4.1Mbit
Package forwarding rate 23.8Mpps
Ports 16 10/100/1000 Base-T ports
PoE Standard N/A
PoE Power Budget N/A
Speed / Duplex mode Auto / Half / Full duplex Speed auto / 10/ 100 /1000
MAC address 8K
Maximum Number of VLANs 16
Allowed VLAN ID 1 ~ 4094
Port-based VLAN Support
Flow Control Support
Loop Protection Support
Unknown Unicast Suppression Support
Multicast / Broadcast Storm Suppression Support
Mirroring Many-to-One Mirroring
Port Isolation Support
Cable Testing Support
ICMP Ping Support
DNS DNS Client
Telnet Support
MACC Support
Port Surge Common mode : 4KV
Electrostatic Discharge Air discharge : 6KV, Contact discharge : 4KV
Power Consumption ≤ 12W
Power supply Built-in power supply
Dimensions (W x D x H) 440 mm x 165mm x 44mm
Weight 2.7kg (with package)
MTBF >200K
Operating temperature 0 to 40°C
Storage temperature -40~70ºC
Operating humidity 10% to 90% RH
Storage humidity 5% to 95% RH
Operating Altitude -500 ~ 5000 meters
FAN Fanless
Management Support management and configuration through web management interface, MACC cloud platform and mobile app
Safety Standard Ground Resistance GB4943-2011, EN 62638-1
EMC GB9254-2008, EN 55032, EN61000-3-2, EN61000-3-3, EN 55035
