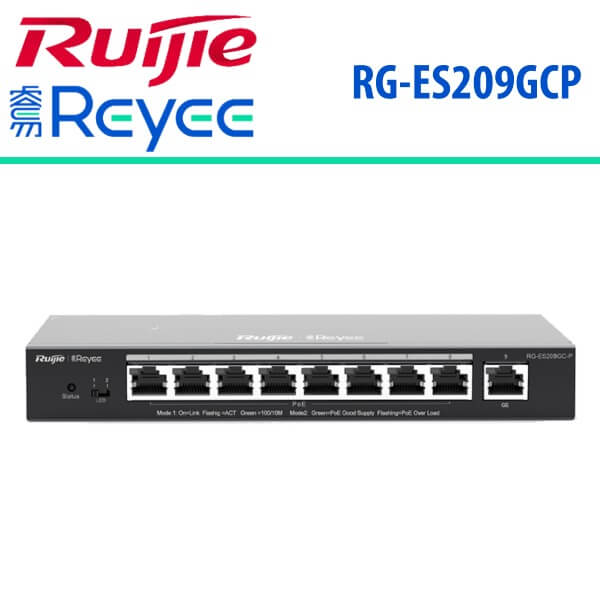

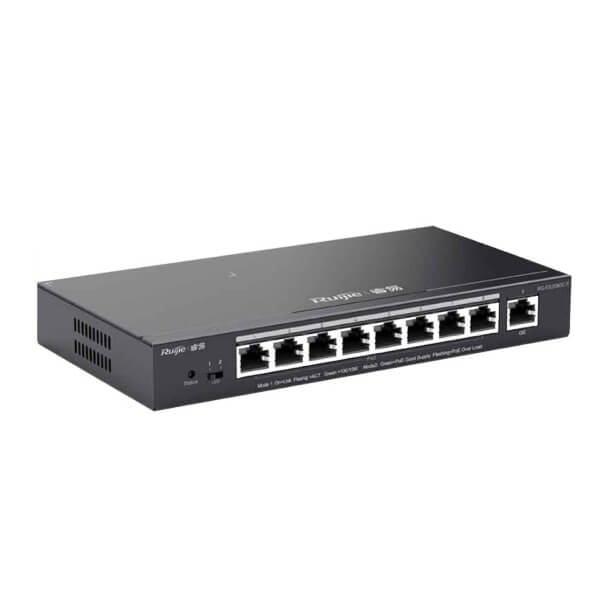

Ruijie rg-es209gcp Nigeria

Rating

Ruijie rg-es209gcp nigeria

The Ruijie rg-es209gcp nigeria switch supports full power PoE output to ensure that all cameras can be powered simultaneously when connected to the Switch at full power.

Description

Ruijie rg-es209gcp network switch nigeria

The ruijie rg-es209gcp nigeria supports full power PoE output to ensure that all cameras can be powered simultaneously when connected to the Switch at full power. With Ruijie app users can view the network status, modify the configuration, and troubleshoot at home. In addition, the Ruijie Reyee Series smart surveillance switches offer simple and easy-to-use management features and plug and play with factory default configuration that can be quickly identified. debug monitoring network, restart port, perform VLAN configuration, etc. Ruijie Cloud mobile and remote management app is also supported, making monitoring network operation and maintenance easy and more convenient, while reducing operating and maintenance costs. The ruijie rg es209gcp Switch can obtain the IP address automatically from the gateway and connect to the external network without configuration. MANET for switches is also supported. Users can scan the QR code of any switch in the network using the mobile app to automatically add all switches in the network to the project.

Features

Plug and Play

Under factory default state, the smart surveillance switches require zero configuration after plugged in. The video surveillance network can be set up quickly after connecting the switch to the cameras and DVR correctly.

Network cable

The ruijie rg-es209gcp nigeria also support data transmission via network cables of non-standard materials (such as 0.38/0.40/0.45-diameter copper-clad steel/iron), facilitating the construction and cabling.

High surge protection for device stability

The ports of the smart surveillance switches offer surge protection of up to 6KV, reducing the probability of being damaged by the surge and improving the stability of the customer’s network.

Fast fault positioning

The ruijie rg-es209gcp nigeria support network topology display of the entire network and monitoring the network status in real time. When failure occurs for the network camera, the location and cause of failure can be displayed in a timely manner, and the notification can be sent via the mobile app.

On-demand VLAN configuration

In the network of villas/ stores/ offices, the network cameras and wireless APs may be connected to the same switch. Without network isolation, there may be problems such as camera screen lag and slow wireless speed. The ruijie rg es209gcp provides convenient and flexible VLAN division, which can automatically divide different VLANs according to the type of equipment connected to the port, so that the surveillance network and data network do not interfere with each other, improving the stability of the entire network.

Ruijie Cloud app

The ruijie rg es209gcp Network Switch lagos support mobile app and Ruijie Cloud platform remote management. Users can view the network status, modify the configuration, and troubleshoot at home. In addition, the ports can be restarted remotely.

Auto-networking

The ruijie rg es209gcp switch obtain the IP address automatically from the gateway and connect to the external network without configuration. MANET for switches is also supported. Users can scan the QR code of any switch in the network using the mobile app to automatically add all switches in the network to the project. This switch support networking with Reyee Series EG / EAP. The switches can be automatically discovered by the Reyee Series EG / EAP and added to the corresponding project.

Specifications

Model RG-ES205GC-P RG-ES206GC-P RG-ES209GC-P
Specifications
Power Consumption ≤ 60W ≤ 60W ≤ 130W
Power supply External power adapter
100-240V
Dimensions (W x D x H) 148mm*78mm*26mm 148mm*78mm*26mm 202*108*28mm
Weight 0.9 kg (with package) 0.9 kg (with package) 1.3 kg (with package)
MTBF >200K
Operating temperature 0 to 40°C
Storage temperature -40~70ºC
Operating humidity 10% to 90% RH
Storage humidity 5% to 95% RH
Operating Altitude -500 ~ 5000 meters
FAN Fanless
Management Support management and configuration through web management interface, MACC cloud platform and mobile app
Safety Standard Ground Resistance GB4943-2011, EN 62638-1
EMC GB9254-2008, EN 55032, EN61000-3-2, EN61000-3-3, EN 55035
