Ruijie rg-es126gpl Nigeria

Rating

Ruijie rg-es126gpl nigeria

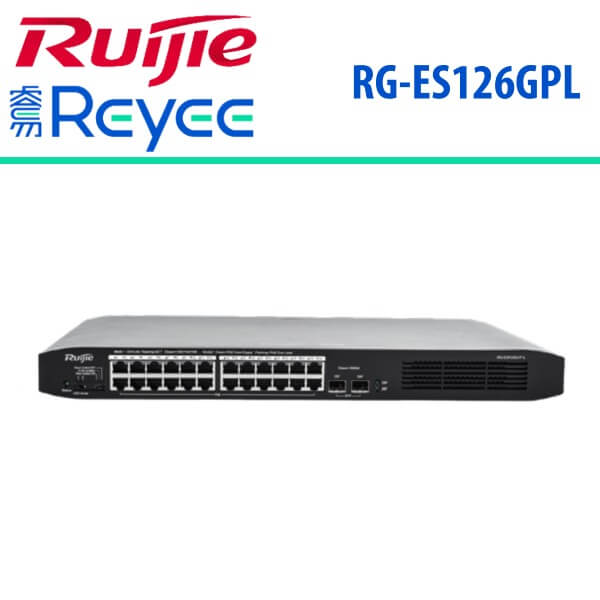

The Ruijie rg-es126gpl nigeria features the next-generation unmanaged switch for scenarios like CCTV, ELV and small offices. The series is designed for small and medium-sized businesses looking for Plug-n-Play solution

Description

Ruijie rg-es126gpl network switch nigeria

The ruijie rg-es126gpl nigeria features the next-generation unmanaged switch for scenarios like CCTV, ELV and small offices. The series is designed for small and medium-sized businesses looking for Plug-n-Play solution. The ruijie rg-es126gpl nigeria is part of the Ruijie SME networking products. The ES100 series consists of 3 switches including one 8-port Gigabit PoE+ models and two 24-port Gigabit PoE+ switch models. The ruijie rg-es126gpl nigeria can be deployed with plug-and-play out the box. Moreover, port-isolation and flow-control features can be done with a simple flip with the button on the panel. Also, PoE budget status can be shown directly on port indicators, which helps a lot in troubleshooting.

Features

  • Full Gigabit Ethernet 10/100/1000Mbps choice on every port, line-rate forwarding.
  • Auto MDI/MDIX All RJ45 ports support auto MDI/MDIX, no restrictions on cables when link to client or other switches.
  • Fiber uplink options RG-ES126G-P-L and RG-ES126G-LP-L provides 2 GE-SFP ports for fiber uplink.
  • PoE/PoE+ Provides up to 30Watt per port, which allows support of latest IEEE802.3at(PoE+) capable devices such like high-performance access points and IP cameras, as well as any IEEE802.3af(PoE)-compliant powered devices.
  • Power on all ports Ports 1~8 of RG-ES109G-LP-L and ports 1~24 of RG-ES126G-LP/P-L are all PoE/ PoE+ capable.
  • PoE budget choice Multiple PoE power budget choice between 185W and 370W on 24-port models.
  • One-click flow control with the flip button on the panel, flow control(IEEE802.3X) can be easily enabled to smooth traffic and avoid packet drop due to sudden traffic surge.
  • One-click port isolation with the flip button on the panel, users can also set port isolation between each port, which helps to ensure CCTV camera safety.

Specifications

Model RG-ES126G-PL
Ports
  • 2 x 1000M SFP
  • 24 x PoE/PoE+ 10/100/1000BASE-T
Auto MDI/MDI-X support
PoE power budget 370W
Power supply type Internal
Input voltage AC 100~240V, 50/60Hz
Cooling Fan
Switching capacity 52Gbps
Forwarding rate 39Mpps
Flow control (IEEE802.3X) Yes
Port isolation Yes
PoE budget indicators Yes
Dimensions (WxDxH) 440 x 292 x 43.6 mm
Weight 4.2kg
Surge protection 4KV
Operating temperature 0 ° C ~ 40 ° C
Storage temperature -40 ° C ~ 70 ° C
Operating humidity 5%~90% RH
Storage humidity 5%~95% RH



Datasheet Download
