Description

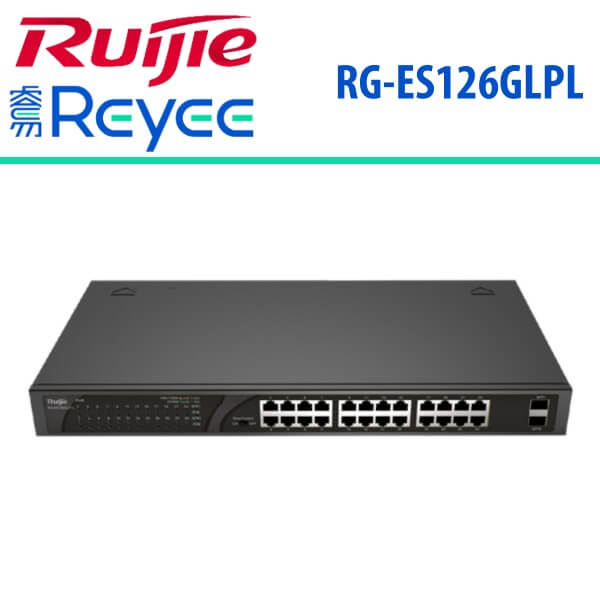

Ruijie rg-es126glpl network switch nigeria
The ruijie rg-es126glpl nigeria features the next-generation unmanaged switches, for scenarios such as CCTV, ELV, and small offices. The Plug-n-Play solution rg es126glpl lagos Switch is designed for small and medium businesses. Ruijie RG-ES100 series is part of Ruijie SME network products. The RG ES100 series consists of 3 switches, including an 8-port Gigabit PoE+ model and two 24-port Gigabit PoE+ switch models. These switches can be implemented plug-and-play out of the box. Additionally, flow control and port isolation functions can be performed with a simple turn of the panel knob. Also, the PoE budget status can be displayed directly on the port indicators, which helps a lot in troubleshooting.
Features
- 24-port and 8-port Gigabit PoE for CCTV/ELV and other SMB scenarios
- Simple one-click button management beyond Plug-n-Play
- Budget options 370W and 180W PoE on 24-port models
- All ports 8/24 support PoE/PoE+, feel free to choose any port
Easy connection
The ruijie rg-es126glpl nigeria has a Full Gigabit Ethernet Selection including; 10 / 100 / 1000Mbps on any port, line rate forwarding. Also, Auto MDI/MDIX ensures all RJ45 ports support automatic MDI/MDIX, no cable restrictions when linking to clients or other switches.
Power over Ethernet (PoE / PoE+)
The ruijie rg-es126glpl nigeria provides up to 30Watt per port, enabling support for the latest IEEE802.3at (PoE+) capable devices such as high performance access points and IP cameras, as well as any IEEE802.3af (PoE) – compatible powered devices. Power on all ports including; Ports 1~8 of RG-ES126GLPL are all PoE/PoE+ capable. Also, PoE budget selection allow for wide choice of PoE power budgets from 185W to 370W on 24-port models.
Easy Control
The One-click flow control. With a flip button on the control panel, ruijie rg-es126glpl nigeria flow control (IEEE802.3X) can be easily enabled to smooth traffic and avoid packet drops due to sudden traffic spikes. Also, one-click port isolation capability, With the switch on the board, users can also set up an isolating port between each port, helping to ensure the safety of CCTV cameras. Moreover, PoE Power Indicator provide status for alerts on the LED indicators of each port
Specifications
Model | RG-ES126G-LP-L |
Ports |
|
Auto MDI/MDI-X | Support |
PoE power budget | 180W |
Power supply type | Internal |
Input voltage | AC 100~240V, 50/60Hz |
Cooling | Fan |
Switching capacity | 52Gbps |
Forwarding rate | 39Mpps |
Flow control (IEEE802.3X) | Yes |
PoE budget indicators | Yes |
Dimensions (WxDxH) | 440 x 205 x 43.6 mm |
Weight | 4.2kg |
Surge protection | 4KV |
Operating temperature | 0°C ~ 40°C |
Storage temperature | -40°C ~ 70°C |
Operating humidity | 5%~90% RH |
Storage humidity | 5%~95% RH |
