Ruijie rg-es105d nigeria

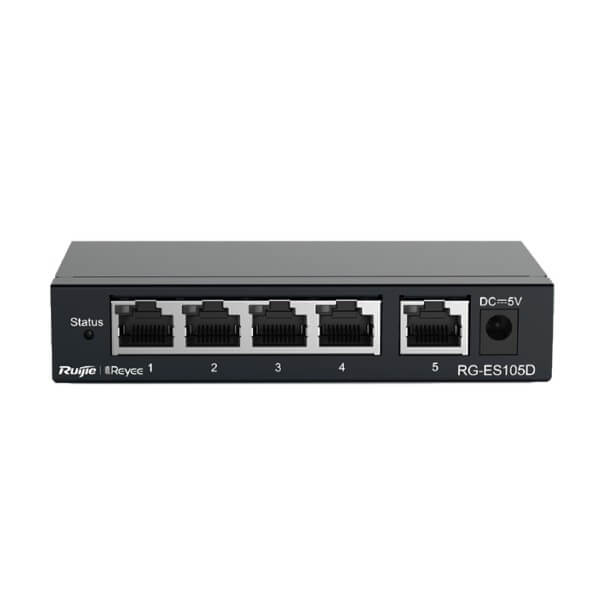

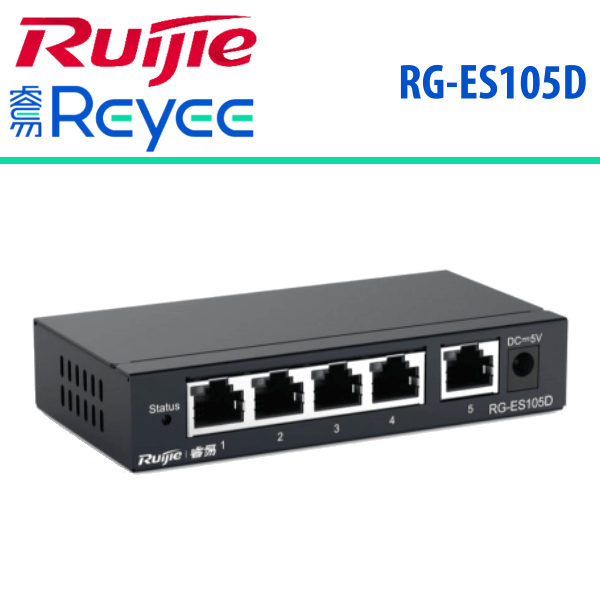

The Ruijie rg-es105d nigeria is a cost-effective unmanaged access switch with metal casing designed for SMEs. The ruijie rg es105d lagos supports plug-and-play without requiring any configuration for various scenarios such as wired, wireless and surveillance networks

Description

Ruijie rg-es105d network switch nigeria

The ruijie rg-es105d nigeria is a cost-effective unmanaged access switch with metal casing designed for SMEs. The ruijie rg-es105d nigeria supports plug-and-play without requiring any configuration, which can meet the requirements of various scenarios such as wired, wireless and surveillance networks.

The series is designed for small and medium businesses looking for a Plug-n-Play solution. Ruijie RG-ES100 series is part of Ruijie SME network products. The series consists of 3 switches, including one 8-port Gigabit PoE+ model and two 24-port Gigabit PoE+ switch models. The ruijie rg-es105d nigeria can be deployed plug-and-play out of the box. In addition, flow control and port isolation functions can be performed with a simple twist of the panel knob. In addition, the PoE budget status can be displayed directly on the port indicators, which is very helpful in troubleshooting.

Features

Plug and Play

The ruijie rg-es105d nigeria supports self-adaptive ports and plug-and-play feature with zero configuration.

Metal Casing

The entire casing of ruijie rg-es105d nigeria is made of metal which provides better heat dissipation.

Easy to Install

The compact size allows easy installation in the ELV box at home or the waterproof surveillance junction box, as it only takes up little space.

Enterprise-grade Quality

The high-quality 8-core network cable and enterprise-grade components ensure no packet loss or lagging for data transmission.

Specifications

Model ES105D ES108D ES105GD ES108GD
Ports 5 10/100Mbps RJ45 ports 8 10/100Mbps RJ45 ports 5 10/100/1000Mbps RJ45 ports 8 10/100/1000Mbps RJ45 ports
Maximum port forwarding rate 100Mbps 100Mbps 1000Mbps 1000Mbps
Auto-MDI/MDIX Support Support Support Support
MAC address 1K 2K 2K 8K
Backplane bandwidth 1Gbps 1.6Gbps 10Gbps 16Gbps
Maximum packet forwarding rate 744Kpps 1.19Mpps 7.44Mpps 11.9Mpps
LED indicator Link/Act status LED indicator for each port,

Power indicator

Link/Act status LED indicator for each port,

Power indicator

Link/Act status LED indicator for each port,

Power indicator

Link/Act status LED indicator for each port,

Power indicator

Dimensions 119mm*62mm*24mm 160mm*75mm*24mm 119mm*62mm*24mm 160mm*75mm*24mm
Power input / output External 5VDC 1.0A External 5VDC 1.0A External 5VDC 1.0A External 5VDC 1.0A
Maximum power consumption ≤5W ≤5W ≤5W ≤5W
Temperature
  • Operating temperature : 0 ℃ ~ 40 ℃
  • Storage temperature : -40 ℃ ~ 70 ℃
  • Operating temperature : 0 ℃ ~ 40 ℃
  • Storage temperature : -40 ℃ ~ 70 ℃
  • Operating temperature : 0 ℃ ~ 40 ℃
  • Storage temperature : -40 ℃ ~ 70 ℃
  • Operating temperature : 0 ℃ ~ 40 ℃
  • Storage temperature : -40 ℃ ~ 70 ℃
Humidity
  • Operating humidity : 10% ~ 90% non-condensing
  • Storage humidity : 5% ~ 90% non-condensing
  • Operating humidity : 10% ~ 90% non-condensing
  • Storage humidity : 5% ~ 90% non-condensing
  • Operating humidity : 10% ~ 90% non-condensing
  • Storage humidity : 5% ~ 90% non-condensing
  • Operating humidity : 10% ~ 90% non-condensing
  • Storage humidity : 5% ~ 90% non-condensing
