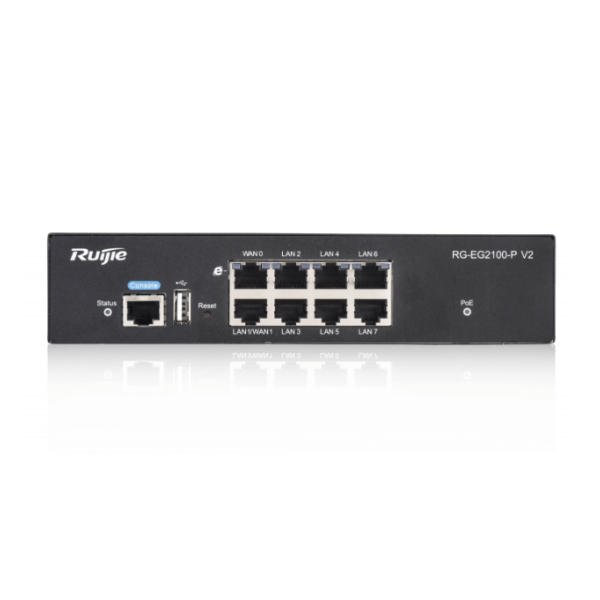

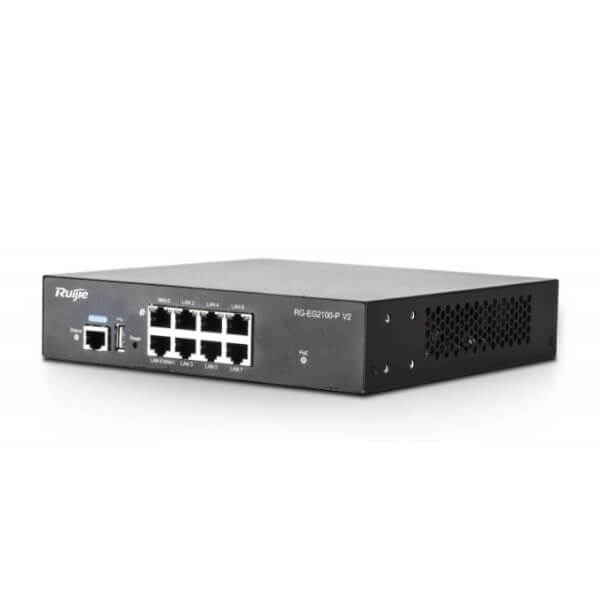

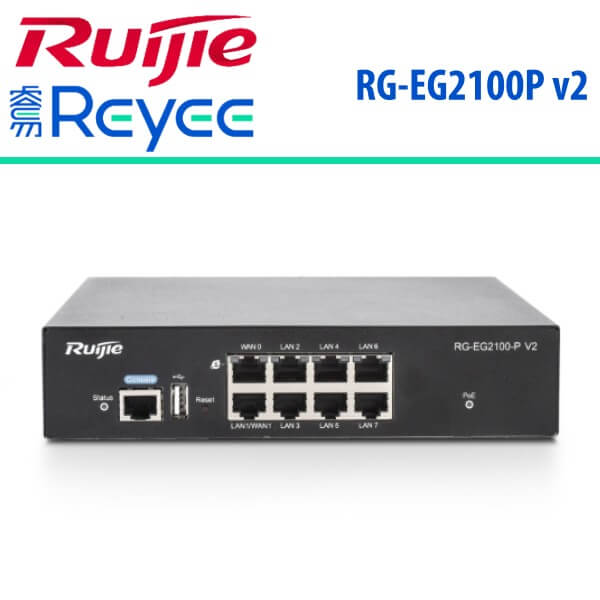

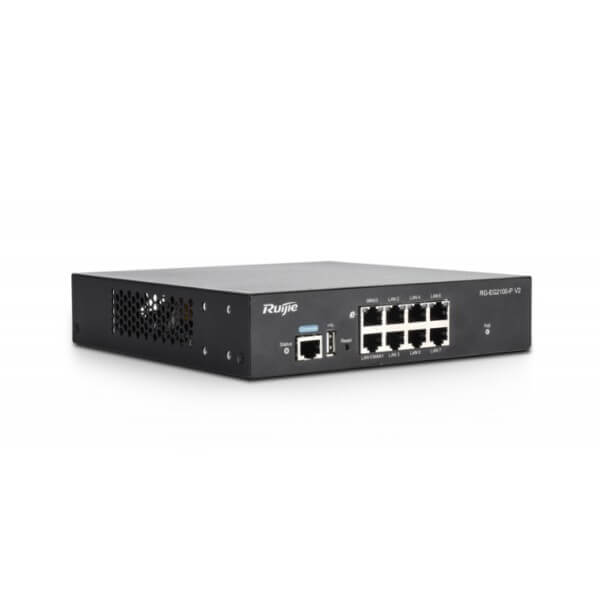

Ruijie rg-eg2100pv2 Nigeria

Rating

Ruijie rg-eg2100pv2 nigeria

The Ruijie rg-eg2100pv2 nigeria Security Gateway (USG) with 8 Gigabit PoE+ ports, AP Controller Ruijie EasyGate (EG) Next Generation Unified Security Gateway is a multi-functional cloud managed security gateway product for various industries.

Description

Ruijie rg-eg2100pv2 security gateway nigeria

The ruijie rg-eg2100pv2 nigeria Security Gateway (USG) with 8 Gigabit PoE+ ports, AP Controller Ruijie EasyGate (EG) Next Generation Unified Security Gateway is a multi-functional cloud managed security gateway product for various industries.

Equipped with a high-performance multi-core MIPS hardware architecture, ruijie rg-eg2100pv2 nigeria Gateway supports a wide range of features such as high-performance NAT, WAN load balancing, intelligent flow control, online behavior management, Visualized IPsec VPN, web authentication, etc. Leveraging the built-in Hard Disk Drive (HDD), EG Security Gateway can provide local storage for Internet activity log, which is essential for national Internet security compliance in many countries.

The ruijie rg-eg2100pv2 nigeria gateway is also compatible with Ruijie Cloud, together with wireless switches and access points, Ruijie Cloud can provide a comprehensive secure network platform for centralized management that enables device firmware monitoring, configuration and management.

To facilitate sourcing, Ruijie provides an APP specially designed for SME customers. In less than 3 minutes, the user can complete the initial configuration of the gateway with Internet connectivity, without any PC configuration or installation of cables.

Features

  • Smart flow control and AAA integration
  • Online user behavior management
  • VPN and traffic display
  • FREE cloud management
  • Application caching to speed up downloads
  • Integrated Internet Audit Log Storage (EG3250)
  • Built-in Power-Over-Ethernet integration (EG-2100-P v2)
  • Mobile App Dummy Provisioning (EG-2100-P v2)

Specifications

Model RG-EG2100-P v2
Hardware Specification
CPU Multi-core MIPS
Fixed Ports 8 1000BASE-T ports (7x POE/POE+)
WAN ports upto 2
Flash 4GB EMMC
Hard Disk N/A
Memory 512M
Performance & Features
Performance 1000Mbps (1518 bytes)
450Mbps (512bytes) 3725Mbps (512bytes)
70Mbps (64 bytes) 800Mbps (64 bytes)
Concurrent Session 100
Recommended Concurrent User 300
App Caching support
Cache Capacity 750MB
Cache Resources Android APK & Apple IOS
Network protocol Support TCP/IP protocols, including IP, ICMP, IGMP, TCP, UDP, etc.
Support multiple routing protocols, including static routing, RIP (V1 / V2) and OSPF
Support DHCP Relay and DHCP Server
Support PPPoE Client
Support NAT and multiple NAT ALG including FTP, H.323, DNS, etc.
Support ARP, trusted ARP, proxy ARP, etc.
Support Ping and Traceroute fault detection
Application Visibility Support self-developed 43 types of applications / more than 120 application features, customizable protocol identification:
P2P: BitTorrent, eMule, Thunder, EDONKEY, FlashGet & etc.
Multimedia: YouTube, Facebook Video, WebEx Conference & etc.
Social Media: Facebook, Twitter, LinkedIn, Pinterest & etc.
VOIP/Chat: Skype, Viber, Google Hangout, Jabber, Facebook Messenger & etc.
Instant Messaging/Email: Gmail, MSN, QQ, YAHOO & etc.
Software Update: Windows, McAfee, Kaspersky, ESET & etc.
Cloud-based File Collaboration: GoogleDrive, Dropbox, OneDrive, iCloud & etc.
Enterprise Application:HTTP, FTP, SMTP, POP3, IMAP, Telnet, LOTUS-NOTES, SQL Server, Oracle, Mysql, HTTPS & etc.
URL Filtering Support custom URLs
Support remote HTTP automatic URL library upgrade
Local log storage (NAT log, traffic log, URL log, etc.)
Support storage on external log server
WAN Load Balancing Support (upto 2 WAN Port)
IPsec VPN Tunnel 16
Network Security Anti-ARP Spoofing
Defense against malicious attacks from internal and external networks
Support secure address binding
Block WAN Ping
Prevent Port Scan Attack
Prevent Fragmentation Attack
Prevent ICMP Flood Attack
Prevent Teardrop Attack
Prevent Ping of Death Attack
Prevent Land Attack
Prevent Smurf / Fraggle attack
Prevent SYN Flood Attack
Ruijie Cloud Integration Feature Support device health monitoring status
Support centralized configuration change management & backup
Support Top 10 Application/User traffic visualization
Support device firmware management
Support event-based alarm notification
Other Features Integrate with AAA software to support multiple authentication modes
Other Features Support push advertising page
Service and Support Support multi-link load balancing
Support remote HTTP online upgrade for signature library, software version, etc.
Lifetime Free signature library upgrade
Rack Height 1U
Weight 2KG
Power supply 100-240V~,50-60Hz,3A
PoE Budget 135W
Power consumption <150W
Dimensions (W x D x H) (mm) 200×200×43.6
Operating temperature 0°C to 45°C
Operating humidity 10% to 90%RH



Datasheet Download
