Description

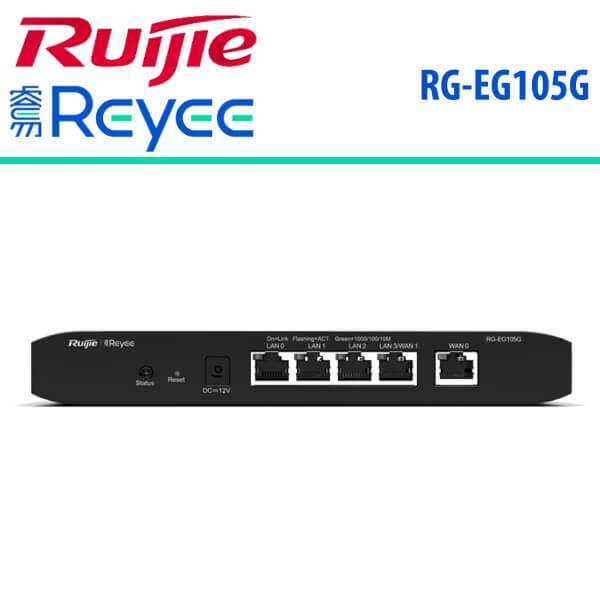

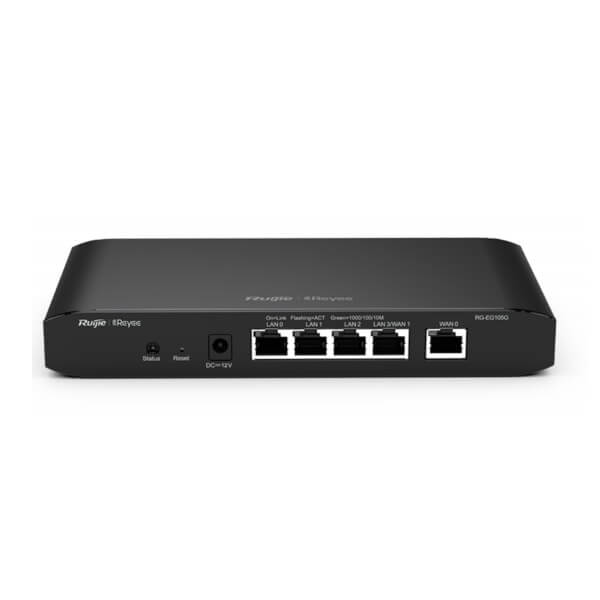

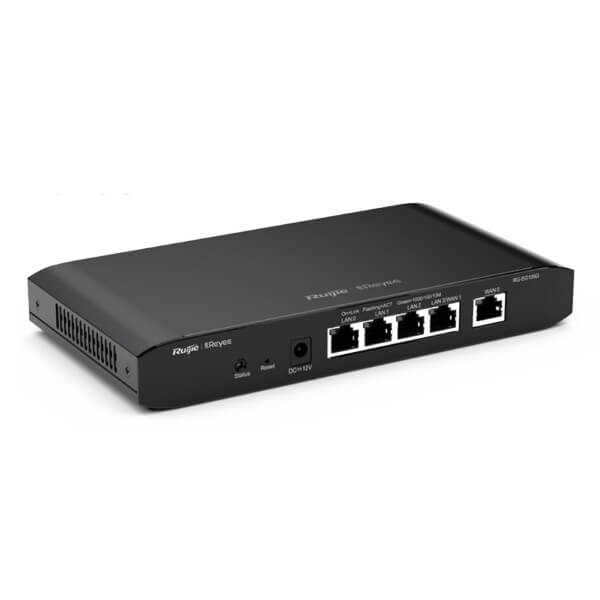

Ruijie rg-eg105g router nigeria
The ruijie rg-eg105g nigeria router is a cloud managed router designed for villas and smart home, restaurant, small offices, homestay hotel. The eg105g lagos is affordable, small and easy to use, but at the same time comes with 500M bandwidth and supporting up to 100 terminals. The ruijie rg-eg105g nigeria series realizes the industry-leading auto-discovery and auto-networking features for gateways, switches and wireless. It also has Ruijie Cloud managed : Remote fault alarm, one-click operation and maintenance on Ruijie Cloud App.
Features
- Auto-provisioning via self-organizing network:RG-EG105G series realizes the industry-leading auto-discovery and auto-networking features for gateways, switches and wireless.
- Lifetime free Ruijie Cloud managed : Remote fault alarm, one-click operation and maintenance on Ruijie Cloud App.
- Multiple WAN Ports : Up to 4 WAN ports are supported.
- Full Gigabit port : Meet the needs of 200M xDS/fiber access, high-speed wired connectivity.
- Smart flow control
- IPSec VPN : up to 8 branches.
- Enterprise Security features : IP/MAC/MAC-Filtering. Independent VLAN for guest, isolated from the internal office network.
Specifications
Model | RG-EG105G |
Basic specifications | |
Fixed ports |
|
RAM | 128MB |
Flash | 16MB |
Maximum number of clients | Up to 100 concurrent clients |
Recommended bandwidth |
|
Local power supply | Support 220V AC local power supply |
Power consumption | <6W |
Basic network features | |
Network access | PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers |
Routing | Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams |
Security | ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping |
Other protocols | DHCP Server, DHCP Client, DHCP Option43 / 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS |
Gateway | |
Flow control | Support custom flow control policies, IP-based automatic bandwidth assignment |
Traffic audit | Real-time traffic audit, IP traffic visualization |
Behavior management | Time-based and IP policy-based access control |
VPN | IPsec VPN (8 tunnels) server and client |
Wireless management | |
Management capacity |
|
AP management | Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist |
Roaming | Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track |
Switch management | |
Management capacity | Maximum manageable cloud managed switches : 128 |
Port management | Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search |
Status display | Port statistics, monitoring information, cable detection, VLAN configuration, MAC list |
Upgrade management | Per-device upgrade, batch upgrade |
Value added features | |
Featured solutions | Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution |
Management | Eweb and Ruijie Cloud |
Physical specifications | |
Dimensions | 206.5×108.5×28 (mm) |
Weight | 0.84kg |
Temperature |
|
Humidity |
|
