Ruijie RG-AP840L Nigeria

The Ruijie RG-AP840L Nigeria supports concurrent dual-band dual-radio (2×2:2 in 2.4GHz, 4×4:4 in 5GHz), up to 6 total spatial streams and a maximum of 5.2Gbps wireless throughput.

Description

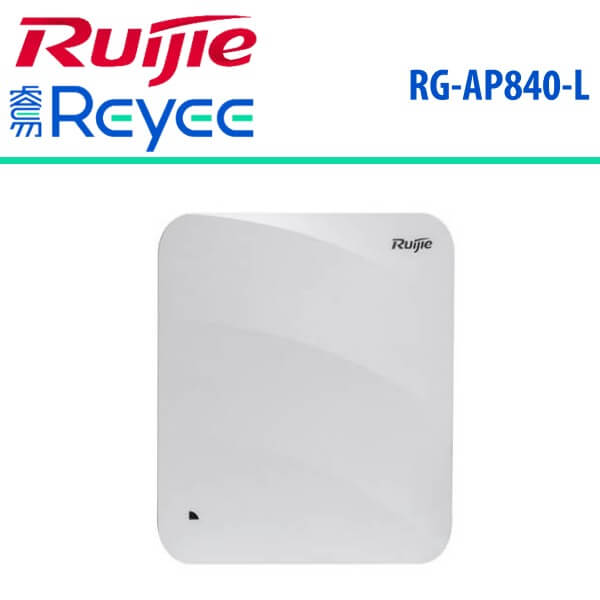

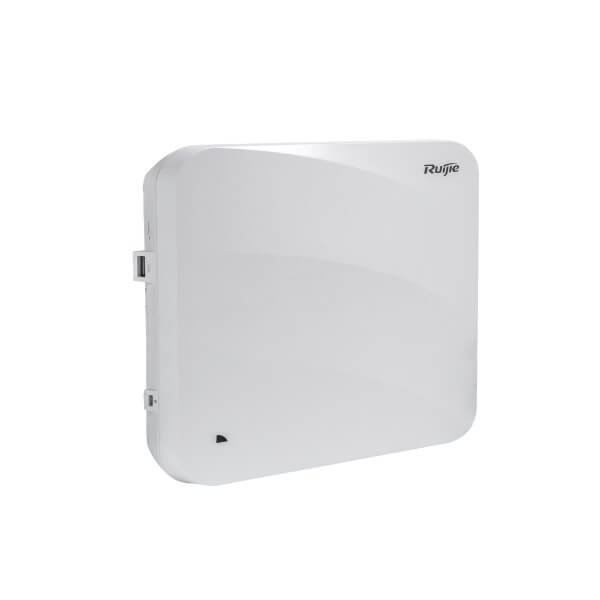

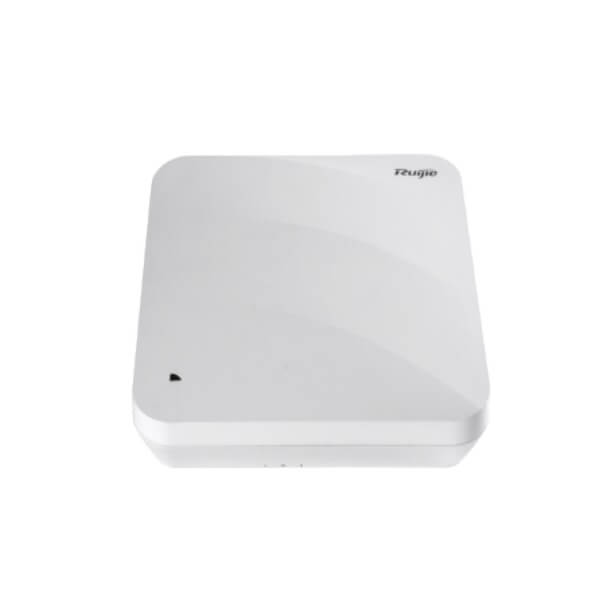

Ruijie RG-AP840L Enterprise Access Point Nigeria

Designed majorly for use in indoor settings, the Ruijie RG-AP840L Nigeria is a  high performance Wi-Fi 6 enterprise AP that comes with a built-in IoT module to enable business users to expand IoT, thus enhancing operational efficiency and maximizing good customer experience.

The Ruijie RG-AP840-L Nigeria supports concurrent dual-band dual-radio (2×2 : 2 in 2.4GHz, 4×4 : 4 in 5GHz), up to 6 total spatial streams and a maximum of 5.2Gbps wireless throughput. Taking the advantage of Wi-Fi 6 OFDMA Modulation, MU-MIMO, and BSS Color Spatial Reuse, the RG-AP840-I guarantees minimal signal interference and a maximum of 1024 client connections.

Additionally, Ruijie RG-AP840L Nigeria is IoT ready with integrated module of BLE, without the need of external module and additional investment. With a total of 3 built-in Gigabit LAN ports, the LAN3 port is specially design for external IoT sensor connection with PoE out (passive) feature. Therefore, no extra power adaptor is needed for the sensor.

Features

  • Max 5.2Gbps (Total 6 Spatial Streams) with Concurrent Dual-Band Design
  • Max 1024 Client connections
  • OFDMA, MU-MIMO and BSS Technology for minimal wireless signal interference
  • IoT Ready : Integrated with BLE module and one IoT extension port with PoE Out (passive)
  • AI Wireless Optimization : one-click optimization powered by Ruijie WIS technology
  • Hybrid Management : support standalone AP to over thousands of APs with deployment options of appliances, private cloud or public cloud service
  • Mobility Management : Free mobile app available for RG-MACC-Base private cloud or Ruijie Public Cloud customers

Technical Specs

Model

 RG-AP840-I

Hardware specifications

Radio

Dual-radio dual-band:

  • Radio 1 : 2.4G 11n : 2×2 MIMO
  • Radio 2 : 5G 11ax : 4×4 MIMO

Protocol

Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac

Operating Bands

  • 802.11b/g/n :2.4G ~ 2.483GHz
  • 802.11a/n/ac/ax : 5.150~5.350GHz,5.47~5.725GHz,5.725~5.850GHz (vary depending on different countries)

Spatial Streams

Up to 6 : 2×2 : 2 in 2.4GHz , 4×4 : 4 in 5GHz

Max Throughput

  • Maximum throughput of 2.4G : 400Mbps
  • Maximum throughput of 5G : 4.8Gbps
  • Maximum throughput per AP : 5.2Gbps

Modulation

  • OFDM:BPSK@6/9Mbps,QPSK@12/18Mbps,16-QAM@24Mbps,64-QAM@48/54Mbps
  • DSSS:DBPSK@1Mbps,DQPSK@2Mbps,and CCK@5.5/11Mbps
  • MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM
  • OFDMA (up to 1024-QAM)

Receiver Sensitivity

  • 11b:-96dBm(1Mbps),-93dBm(5Mbps),-89dBm(11Mbps)
  • 11a/g:-91dBm(6Mbps),-85dBm(24Mbps),-80dBm(36Mbps),-74dBm(54Mbps)
  • 11n:-90dBm(MCS0),-70dBm(MCS7),-89dBm(MCS8),-68dBm(MCS15)
  • 11ac HT20:-88dBm(MCS0), -63dBm(MCS9)
  • 11ac HT40:-85dBm(MCS0), -60dBm(MCS9)
  • 11ac HT80:-82dBm(MCS0), -57dBm(MCS9)
  • 11ax HT80:-82dBm(MCS0), -57dBm(MCS9), -52dBm(MCS11)
  • 11ax HT160:-80dBm(MCS0), -49dBm(MCS11)

Antenna

Integrated antenna design

Antenna Gain

  • 2.4G : 3dBi
  • 5G : 3dBi

Service Ports

3 10/100/1000M Ethernet ports (The LAN1 Port supports PoE in, LAN3 Port supports LAN & IoT module expansion with PoE out)

Management Port

1 console port

USB

1 USB 2.0 port

IoT Capability

BLE

Reset Button

Support

Anti-theft Lock

Support

LED Indicator

1 LED indicator (Supports red, green, blue, orange and flashing mode, which indicates device access. The indicator can be switched off to silent mode.)

Transmit Power

≤100mw(20dBm) (vary depending on different countries)

Adjustable Power

1dBm

Power Supply

  • Local power supply (DC 48V/1A)  (DC Power adapters should be purchased from third-party vendors separately if needed.)
  • PoE+ (802.3at)
  • PoE (802.3af) – Not recommended : 5G radio is degraded to 2×2 MIMO, and the PoE out of the LAN3/ IoT port is disabled

Power Consumption

<25.4W
Physical Specifications

Temperature

Operating Temperature : -10°C to 50°C
Storage Temperature : -40°C to 70°C

Humidity

Operating Humidity : 5% to 95% (non-condensing)
Storage Humidity : 5% to 95% (non-condensing)

Installation Mode

Ceiling/wall-mountable

Dimensions (W x D x H)

220mm ×220mm x48.85mm(Height of the AP only, excluding the mount kit)

Weight

1.30kg

IP Rating

IP41

MTBF

250,000 hours

Certifications and Compliance

Safety Standard

GB4943, EN/IEC 60950-1

EMC Standard

  • GB9254, EN301 489
  • EN 55032 , EN 61000, EN 55035

Health Standard

EN 62311

Radio Standard

SRRC, EN300 328, EN301 893
