Qnap TS-EC879U-RP Nigeria

Rating

Qnap TS-EC879U-RP Nigeria

The TS-EC879U-RP offers a variety of security options to prevent unauthorized access to your data, even in the event that the hard drive(s) or device is stolen. Sophisticated RAID configurations and hot-swap capabilities are included to offer high performance, protection and minimized rebuilding time.

Category:

Description

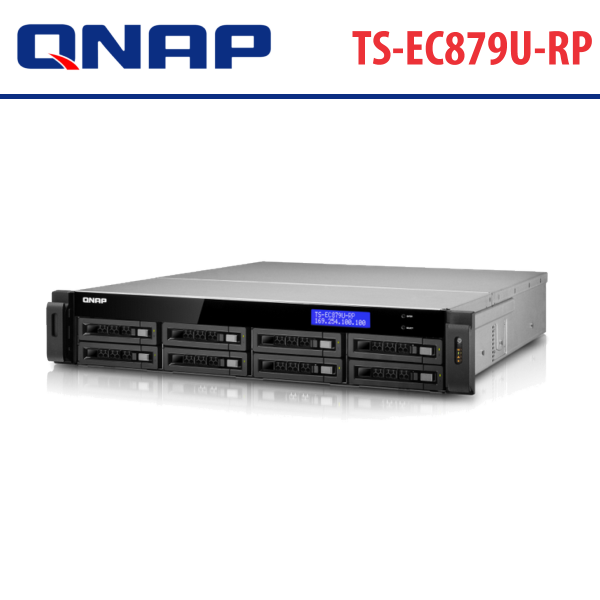

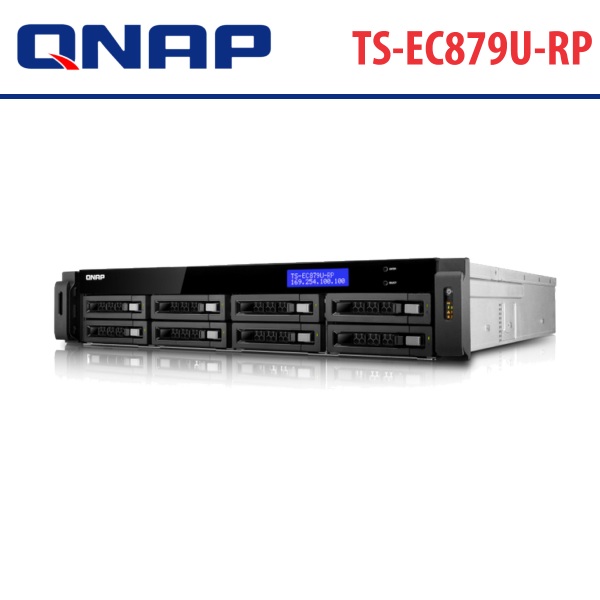

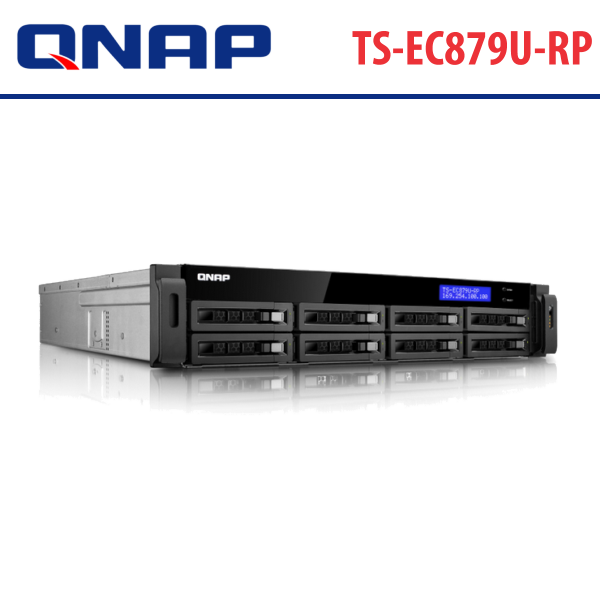

Qnap TS-EC879U-RP NAS Server Nigeria

The Qnap TS-EC879U-RP Nigeria offers a variety of security options to prevent unauthorized access to your data, even in the event that the hard drive(s) or device is stolen. Sophisticated RAID configurations and hot-swap capabilities are included to offer high performance, protection and minimized rebuilding time. The dual OS embedded on the DOM architecture offers extra assurance that the system will boot up.

Setting up local or remote access with the server is a breeze and requires no IT skills! Easy management tools like instant SMS / Email alert, the hard drive S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) feature, and system resource monitor are included to keep administrators up-to-date on their NAS at all times.

The system features an Intel Xeon E3-1225 3.1 GHz Processor, 4.0 GB DDR3 ECC memory, 10 Gigabit network capability, and a 6.0 Gb/s SATA interface for high performance and fast data transfer rates. You also get blazing-fast data backup via USB 3.0.

The server supports SMB / CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, and Linux / UNIX networks. Real-time Remote Replication (RTRR) between the TS-EC879U-RP and a remote QNAP NAS, FTP server, or external drive is also provided. Enjoy support for Amazon S3 and ElephantDrive cloud storage backup. The built-in iSCSI feature offers an affordable IP-SAN (Storage Area Network) alternative for businesses.

The Qnap TS-EC879U-RP Nigeria provides AES 256-bit encryption. It functions as an all-in-one server, boasting file, FTP, backup, web, RADIUS, Syslog and print servers, as well as a surveillance station. Multiple LAN deployment is also offered.

Features

Secure

While data may seem insecure when open in a network, the Qnap TS-EC879U-RP Nigeria offers a variety of security options, including encrypted access, IP filtering, policy-based automatic IP blocking and more. Additionally, complete control of the NAS is provided, down to the user and folder access rights, to determine who is able to access the NAS and what is / is not accessible. The server is loaded with security features that prevent unauthorized data access, including AES-256 volume-based encryption. This feature stops sensitive data from being accessed by unauthorized users, and also prevents data-breach, even in the event that the hard drive(s) or device is stolen.

Reliable

Built-in safety precautions protect your data from unforeseen problems. With numerous built-in features to guarantee that nothing interrupts the work flow of your business, the Qnap TS-EC879U-RP Nigeria is a highly efficient asset. The sophisticated RAID configurations and hot-swap capabilities are included to offer RAID performance, protection and minimized rebuilding time. What’s more is that the dual OS embedded on the DOM architecture makes sure that the system boots up. In the event that 1 of the 2 operating systems fails, the healthy OS will boot up and operate normally while repairing the failed one. The dual Gigabit LAN ports are also configurable for failover, allowing the NAS server to sustain one network port failure and continue to provide continuous service.

Simple

Setting up local or remote access with the server is a breeze and requires no IT skills! All setup processes have been simplified to the point where most of the necessary steps are either automatic or may be completed via an installation wizard. The user-friendly web GUI enables administrators to easily manage the NAS without extensive knowledge of complicated commands. Easy management tools like instant SMS / Email alert, the hard drive S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) feature, and system resource monitor are included to keep administrators up-to-date on their Qnap TS-EC879U-RP Nigeria at all times.

High Performance

Features an Intel Xeon E3-1225 3.1 GHz Processor, 4.0 GB DDR3 ECC memory, 10 Gigabit network capability, and a 6.0 Gb/s SATA interface. The most demanding requirements in data center or corporate networks may be satisfied by this server. An exceptional data transfer rate of over 1,000 MB/s throughput and 100,000 IOPS 1 allows intensive business applications and concurrent tasks to be fulfilled with ease. With RAID 5, the server boasts 1,688 MB/s read and 1,568 MB/s write speeds (throughput), as well as 197,559 IOPS read and 182,210 IOPS write speeds, leaving other 1.0 GbE NAS servers in the dust.

NAS + iSCSI / IP-SAN Solution for Server Virtualization

As IT resources become increasingly virtualized, the need for high performance storage is more critical than ever before. The Qnap TS-EC879U-RP Nigeria provides class-leading system architecture paired with 10 GbE networking performance engineered to meet the requirements of demanding server virtualization–including VMware, Citrix, and Windows Hyper-V. The 10 GbE network speeds greatly enhance the agility of data transmission in a virtualized environment, improving NFS and iSCSI connection performance.

High Network Bandwidth

The Qnap TS-EC879U-RP Nigeria provides network expansion options, including dual-port 1 GbE and dual-port 10 GbE network expansion cards, to aggregate and improve network performance. The TS-EC879U-RP features 2x Gigabit (GbE) LAN ports, expandable to 4x GbE LAN, or 2x 10 GbE LAN plus 2x GbE ports.

Note :

Original GbE network card must be replaced by 10GbE LAN card to enable network expansion

ECC RAM for High Reliability

The ECC (Error Correction Codes) RAM of the Qnap TS-EC879U-RP Nigeria is capable of detecting and correcting errors that are introduced during data transmission or storage. It provides greater protection in mission critical applications.

Specifications

Hardware
CPU Quad Core Intel Xeon E3-1225 3.1 GHz Processor
DRAM 4.0 GB DDR3 ECC RAM
Flash Memory 512 MB DOM
Hard Drive
  • 8x 3.5″ (8.9 cm) SATA 6.0 Gb/s, SATA 3.0 Gb/s hard drive or 2.5″ (6.4 cm) SATA, SSD hard drives (not included)
  • Hard Drive Trays : 8x hot-swappable and lockable

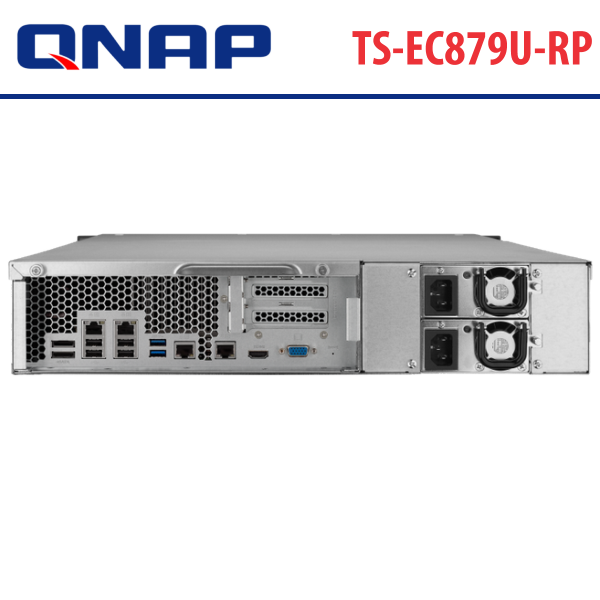

LAN Port
  • 4x Gigabit RJ-45 Ethernet ports
  • Optional dual-port 10 Gb network card is supported
USB
  • 2x USB 3.0 ports (rear)
  • 4x USB 2.0 ports (rear)
eSATA 2x ports (rear)
LED Indicators Status, 10 GbE, LAN, eSATA, hard drives
Buttons System : Power button and Password / Network settings reset button

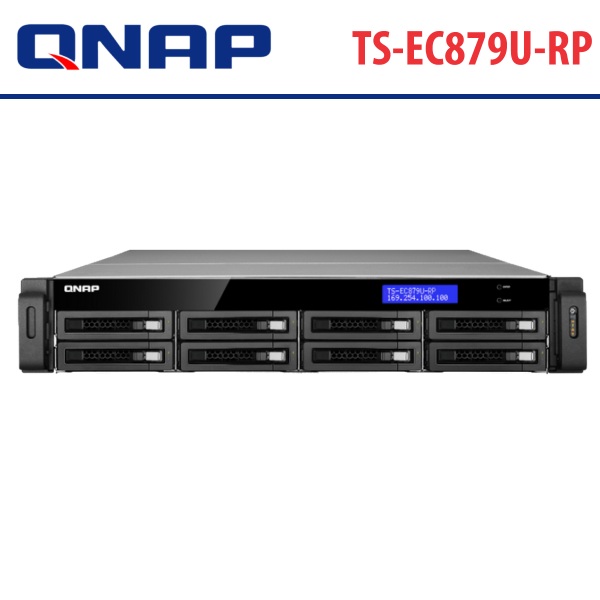

LCD Panel
  • Mono-LCD display with backlight
  • Enter and Select buttons for configuration
Expansion Slot 2x : For network and storage expansion
VGA Reserved for system maintenance
Fan 3x 2.4″ (6.0 cm) smart cooling fan
Alarm Buzzer for system warning
Noise Level
  • With 8x 1.0 TB hard drives installed :
  • Standby : 54.57 dB
  • In operation : 54.6 dB
Power Consumption
  • With 8x 1.0 TB hard drives installed :
  • Sleep mode : 68 W
  • In Operation : 132 W
Power Supply
  • Input : 100 – 240 V AC, 47-63 Hz
  • Output : 300 W
Temperature 32 – 104° F (0.0 ~ 40° C)
Relative Humidity 0.0 ~ 90%
Form Factor
  • 2U, rackmount
  • Complies with ANSI / EIA-RS-310-D rack mounting standards : Fits server racks with mounting post width of ≥ 451 mm, panel width of ≥ 500 mm, and mounting post depth of 650 ~ 850 mm
Dimensions 3.46 x 17.28 x 20.47″ (8.8 x 43.9 x 52 cm)
Weight
  • Net : 27.61 lb (12.52 kg)
  • Gross : 45.78 lb (20.77 kg)
Software
Operating System QSM (QNAP Storage Manager) 3.5
Supported Operating System
  • Microsoft Windows XP, Vista (32/64-bit), Windows 7 (32/64-bit), Server 2003 / 2008 R2
  • Apple Mac OS X
  • Linux and UNIX
Supported Web Browsers
  • Microsoft Internet Explorer 7, 8, and 9
  • Mozilla Firefox 3, 4, and 5
  • Apple Safari 3 and 4
  • Google Chrome
Language Support Chinese (Traditional and Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
File System
  • Internal Hard Drive : EXT3, EXT4
  • External Hard Drive : EXT3, EXT4, NTFS, FAT32, HFS+
Networking
  • TCP / IP (IPv4 and IPv6 : Dual Stack)
  • Dual Gigabit NICs with Jumbo Frame :
  • Failover
  • Multi-IP Settings
  • Port Trunking / NIC Teaming (Modes : Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad / Link Aggregation, Balance-tlb and Balance-alb)
  • Service Binding based on Network Interfaces
  • Virtual LAN (VLAN)
  • DHCP Client, DHCP Server
  • Protocols : CIFS / SMB, AFP, NFS (v3), FTP, FTPES, TFTP, HTTP, HTTPS, Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
  • UPnP and Bonjour Discovery :
  • USB Wi-Fi Adapter Support
Network File Sharing
  • CIFS / SMB (Plus DFS Support)
  • AFP
  • NFS
  • FTP
  • WebDAV
Backup Solution
  • Real-time Remote Replication (RTRR) :
  • Works as Both RTRR Server and Client
  • Real-time and Scheduled Backup
  • Encryption, Compression, and File Filter
  • USB One Touch Backup (Import / Export)
  • Desktop Backup by QNAP QBack and NetBak Replicator
  • Apple Time Machine Support with Backup Management
  • Block-level Remote Replication :
  • Works as Both Rsync Server and Client
  • Encrypted Replication between QNAP NAS Servers
  • Data Backup to Multiple External Storage Devices
  • Data Backup to Cloud Storage (Amazon S3 & ElephantDrive)
Security
  • IP Filter and Policy-based Automatic IP Blocking
  • Network Access Protection with Auto-blocking
  • Encrypted Access : HTTPS, FTP with SSL / TLS (Explicit), SSH / SFTP (admin only), Encrypted Remote Replication (Rsync over SSH)
  • CIFS Host Access Control for Shared Folders
  • Antivirus Protection
  • FIPS 140-2 Certified AES 256-bit Volume-based Data Encryption
  • AES 256-bit External Drive Encryption
  • Importable SSL Certificate
  • Instant Alert via E-mail, SMS, Instant Messaging, and LCD
Disk Management
  • Single Disk, JBOD, RAID 0, 1, 5, 5+Hot Spare, 6, 6+ Hot Spare, 10, 10+Hot Spare
  • Online RAID Capacity Expansion and Online RAID Level Migration
  • Bad Block Scan and Hard Drive S.M.A.R.T
  • Global Hot Spare Drive (4-bay NAS or above)
  • RAID Recovery
  • Bitmap Support :
  • ISO Mount (via Web File Manager and Web Administration)
iSCSI (IP SAN)
  • iSCSI Target :
  • Multi-LUNs per Target
  • Up to 256 Targets / LUNs
  • Supports LUN Mapping and Masking
  • Online LUN Capacity Expansion
  • Supports SPC-3 Persistent Reservation
  • Supports MPIO and MC/SVirtual Disk Drive (via iSCSI Initiator) :
  • Stack Chaining Master
  • Max No. of Virtual Disk Drives : 8
  • iSCSI LUN Backup, One-time Snapshot, and Restore
Server Virtualization & Clustering
  • Supports VMware vSphere (ESX / ESXi 4.x)
  • Supports Citrix XenServer (5.x)
  • Supports Windows Server 2008 R2 Hyper-V and Failover Clustering
Power Management
  • Wake on LAN
  • Internal Hard Drive Standby Mode
  • Scheduled Power on / off (Max 15 Settings)
  • Automatic Power on after Power Recovery
  • Network UPS with SNMP Management
Access Rights Management
  • Max No. of Users : 4,096
  • Max No. of User Groups : 512
  • Max No. of Network Shares : 512
  • Batch Creating Users
  • Import / Export Users
  • User Quota Management
  • Subfolder Permissions Support for CIFS/SMB, AFP, FTP and Web File Manager
Domain Authentication Integration
  • Microsoft Active Directory
  • LDAP
  • Domain Users Login via CIFS / SMB, AFP, FTP and Web File Manager
Service Included
  • MyCloudNAS Service :
  • Private Cloud Storage
  • Free Host Name registration
  • Auto Router Configuration (via UPnP)
Web Administration
  • AJAX-based User Interface
  • HTTP / HTTPS Connections
  • Alert Notification (Email, SMS, and Instant Messaging)
  • Smart Fan Control
  • Dynamic DNS (DDNS) and MyCloudNAS Remote Access
  • SNMP (v2 and v3)
  • UPS Support with SNMP Management and USB
  • Resource Monitor
  • Network Recycle Bin for File Deletion via CIFS / SMB and AFP
  • Comprehensive Logs (Events and Connection)
  • Real-time Online User List
  • Syslog Client
  • Firmware Live Update
  • System Settings Backup and Restore
  • Restore to Factory Default
Applications
  • Web File Manager
  • Surveillance Station
  • Apache Web Server
  • MySQL Server
  • Syslog Server
  • RADIUS Server
  • TFTP Server with PXE Booting
QPKG Web Applications :

  • Joomla!
  • phpMyAdmin
  • WordPress
  • AjaXplorer
  • vtigerCRM
  • GLPI

MagentoP2P Applications :

  • MLDonkey (eMule)
  • SABnzbd+
  • NZBGet

Transmission Server Applications :

  • Squeezebox Server
  • Tomcat
  • Asterisk
  • XDove (Mail Server)
  • OpenLDAP
  • eyeOSMedia Server :
  • PS3 Media Server
  • IceStation

Misc :

  • Optware IPKG
  • Python
  • Java Runtime Environment
  • Mono
  • iStat
Server
File Server
  • File Sharing across Windows, Mac, and Linux / UNIX
  • Protocols : CIFS / SMB, AFP (3.2), NFS, FTP, HTTP, HTTPS
  • QNAP Web File Manager :
  • Supports ISO Mounting
  • Direct File Viewing via Google Doc
FTP Server
  • FTP over SSL / TLS (Explicit)
  • Max No. of Concurrent Connections : 256
  • FXP Supported
  • Passive FTP Port Range Control
  • FTP Bandwidth and Connection Control
  • Unicode Support
Backup Server
  • Remote Replication Server (over Rsync)
  • Real-time Remote Replication
  • Apple Time Machine Support
  • QNAP Windows Client Backup Application-NetBak Replicator
  • 3rd Party Backup Software Support : Acronis True Image, CA BrightStor, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper
Web Server
  • HTTP / HTTPS Connections
  • Supports WebDAV Connection
  • Supports Virtual Host
  • Importable SSL Certificate
Database Server
  • Built-in MySQL Server
  • Web-based Management via phpMyAdmin (QPKG)
Print Server
  • Network Printer Sharing (USB)
  • Max No. of Printers : 3
  • Supports Internet Printing Protocol
  • Supports Apple Bonjour Printing
  • Advanced Printer Management
  • Print Jobs Display and Management
  • Access Right Control (IP and Domain Names)
Syslog Server
  • Centralized Log Monitoring
  • Centralized Log Archiving
  • Immediate E-mail Alerts
  • Supports Log Filtering
RADIUS Server
  • Centralized account management and authentication for network access
  • Supports 802.1x security authentication
Surveillance Station Supports 4 IP Cameras (not included) for Network Surveillance
Packaging Info
Box Dimensions (LxWxH) 29.5 x 23.3 x 12.5″
