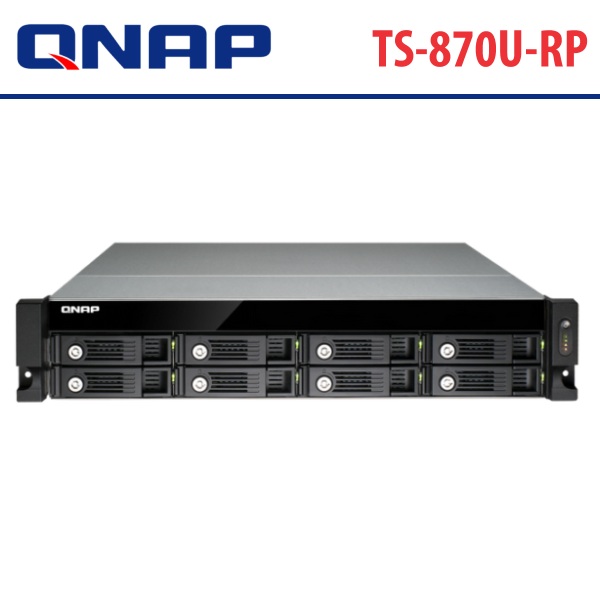

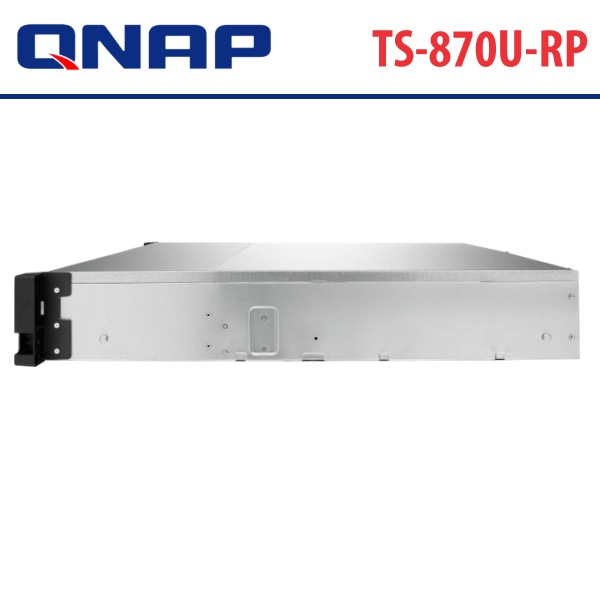

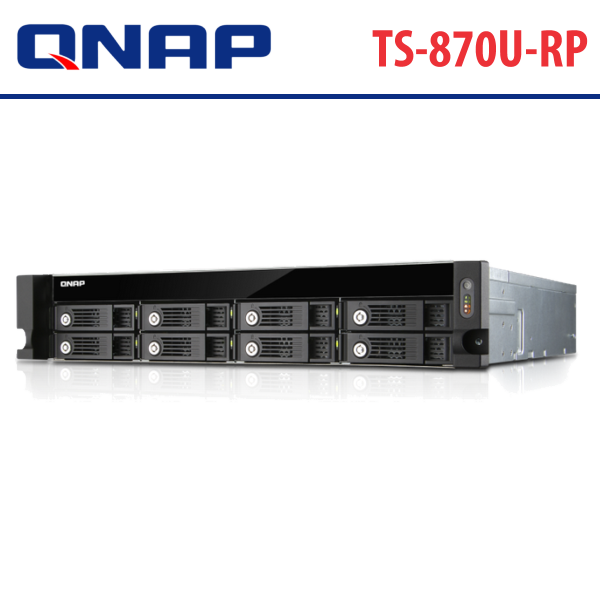

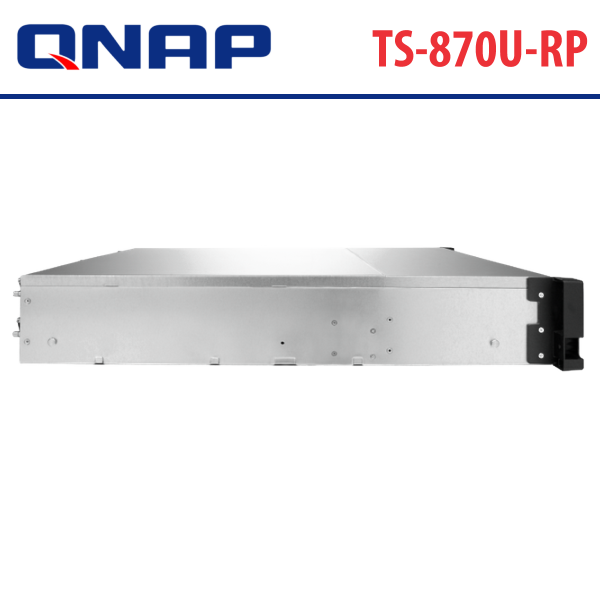

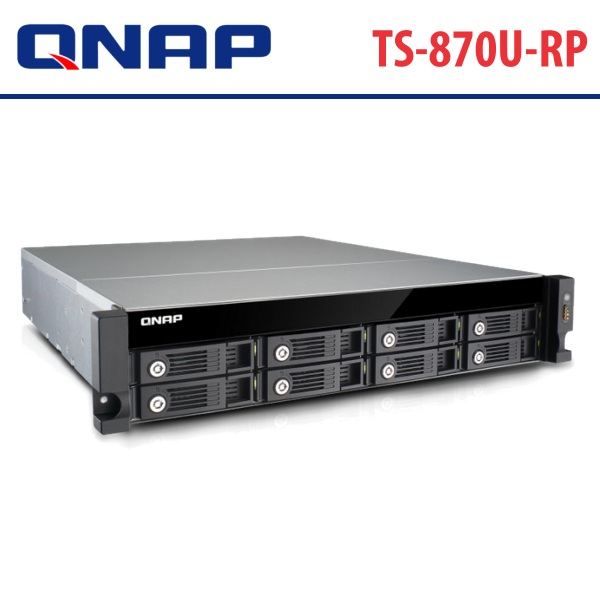

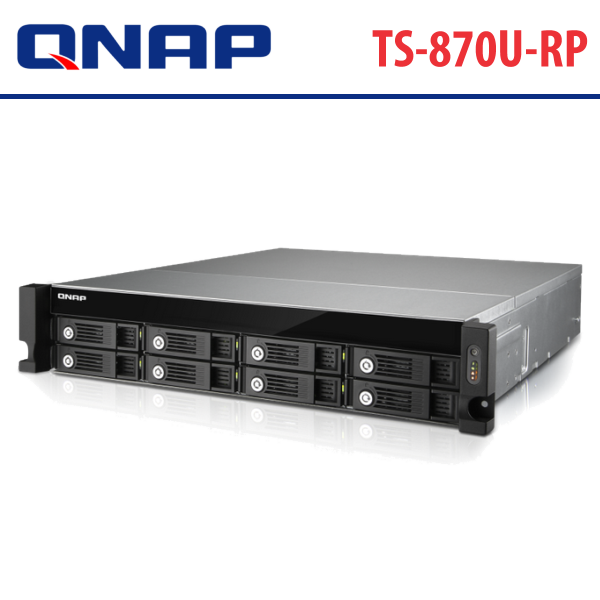

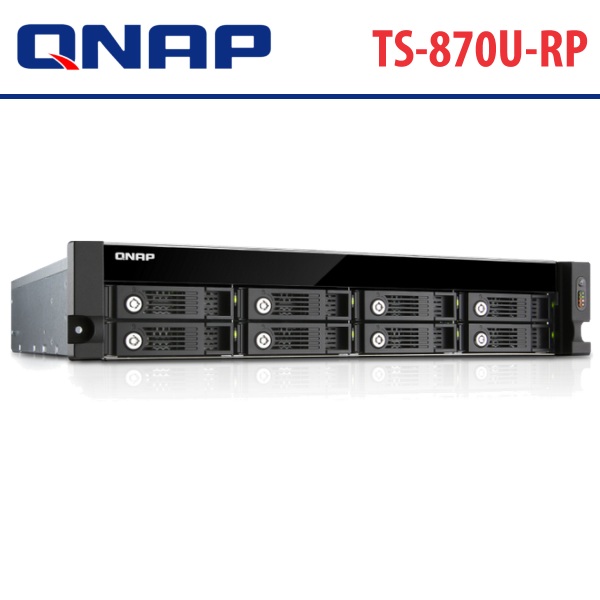

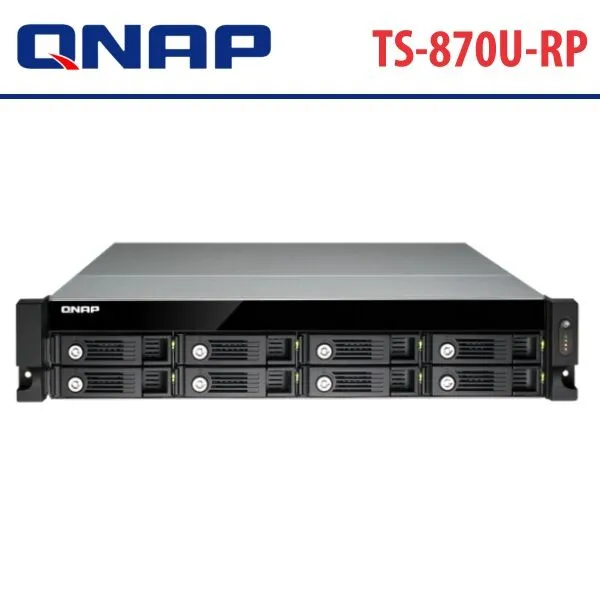

Qnap TS-870U-RP NAS Server Nigeria
The Qnap TS-870U-RP Nigeria is designed to provide IP SAN/NAS unified storage for large-scale business organizations that demand uncompromising high performance. Featuring a powerful Dual-core Intel 2.4 GHz Processor, 4GB DDR3 RAM (expandable to 32GB), and the capacity to hold up to 8 hard drives, the TS-870U-RP greatly enhances efficiency of CPU-consuming tasks, powering large amount of concurrent tasks, and meeting the stringent requirements of data-hungry applications.
Features
Flexible 10GbE network expansion
The 10GbE-ready Qnap TS-870U-RP Nigeria includes 2 in-built Gigabit Ethernet ports, which can be expanded with additional 4 Gigabit Ethernet ports, or 4 10Gigabit Ethernet ports and delivers excellence performance with 1,000 MB/s throughput and 100,000 IOPS, improving the efficiency of virtualization applications via both NFS and iSCSI protocols. Coupled with the support for large storage capacity, the TS-870U-RP is a perfect choice for applications demanding high storage space and transmission speed such as data centers storing big data and for studios editing 4K/HD videos on-the-fly without transferring the videos between the TS-870U-RP and desktop computers
Comprehensive virtualization support
The Qnap TS-870U-RP Nigeria is VMware Ready™, Citrix Ready™, compatible with Microsoft Hyper-V™ certification and Windows Server 2012, and supports advanced functions including SPC-3, MPIO and MC/S, enabling flexible deployment and management for virtualization needs. The TS-870U-RP supports VMware VAAI and Microsoft ODX to increase performance by offloading ESXi server loading, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider to provide enhanced operational efficiency in managing virtualization applications.
High Efficiency with Multiple LAN support
The Qnap TS-870U-RP Nigeria supports multiple port-trunking modes, enabling IT administrators to set up link aggregation to increase total data transmission capability. Failover is also supported to ensure continuous system operations. The supported port-trunking modes include : Balance-rr (Round-Robin), Active Backup, Balance XOR, Broadcast, IEEE 802.3ad, Balance-tlb (Adaptive Transmit Load Balancing) and Balance-alb (Adaptive Load Balancing).
Hardware Specifications
| CPU | Dual-core Intel 2.4 GHz Processor |
| DRAM | 4 GB DDR3 RAM NOTE : The system memory can be increased to 16GB by installing three additional 4GB Long-DIMM RAM modules. |
| Flash Memory | 512MB DOM |
| Hard Drive | 8 x 3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s hard drive or SSD NOTE : The standard system is shipped without hard drives. |

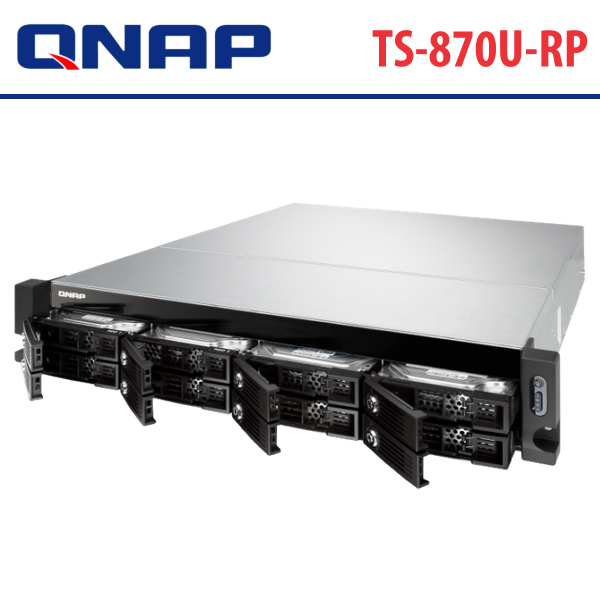

| Hard Drive Tray | 8 x hot-swappable and lockable tray |

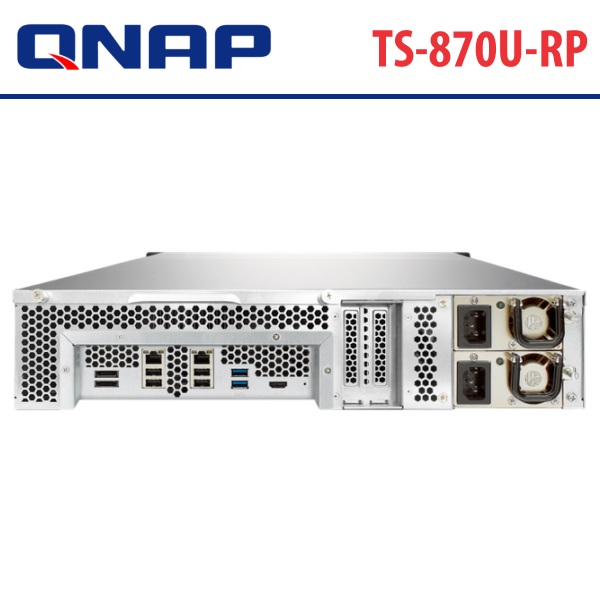

| LAN Port | 2 x Gigabit RJ-45 Ethernet port (Expandable up to 6 x 1 Gb LAN or 4 x 10 Gb + 2 x 1 Gb LAN by installing optional dual-port 10 Gb and 1 Gb network card) |
| LED Indicators | Status, 10 GbE, LAN, eSATA, hard drives |
| USB |
|
| eSATA | 2 (rear) |
| Buttons | System : Power button and reset button |
| Alarm Buzzer | System warning |
| Form Factor | 2U, Rackmount |
| Dimensions |
|
| Weight |
|
| Sound Level (dB) |
|
| Power Consumption (W) |
|
| Temperature | 0-40˚C |
| Relative Humidity | 0~90% |
| Power Supply |
|
| Expansion Slot | 2 (for network and storage expansion) |
| Fan | 2 x quiet cooling fan (7 cm, 12V DC) |
| Box Contents |
|
