Description

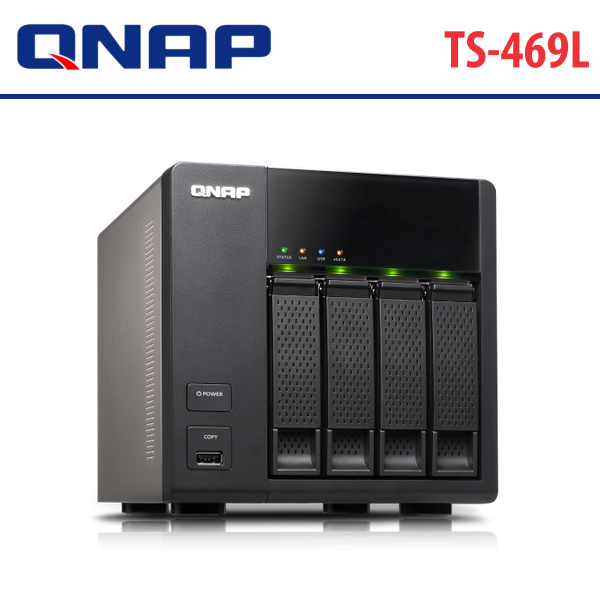

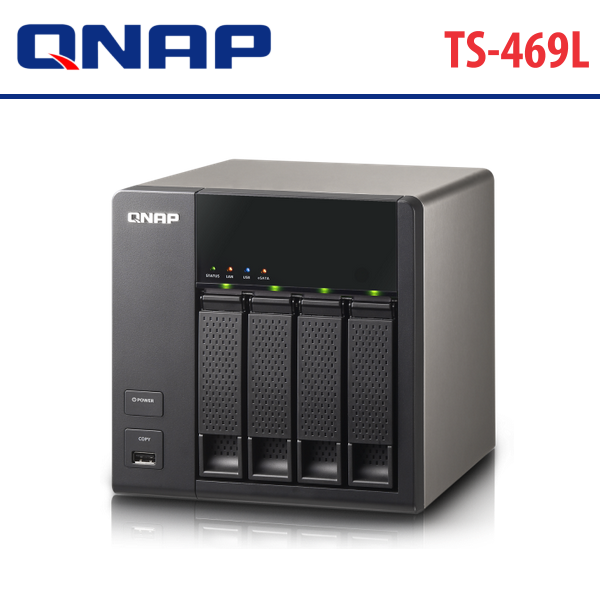

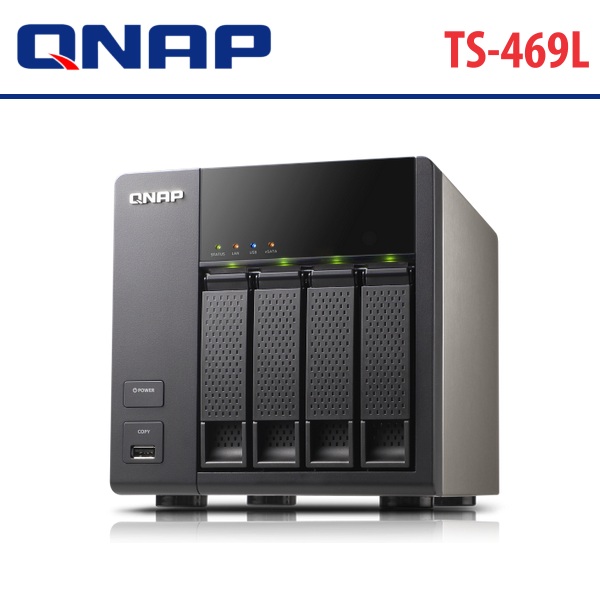

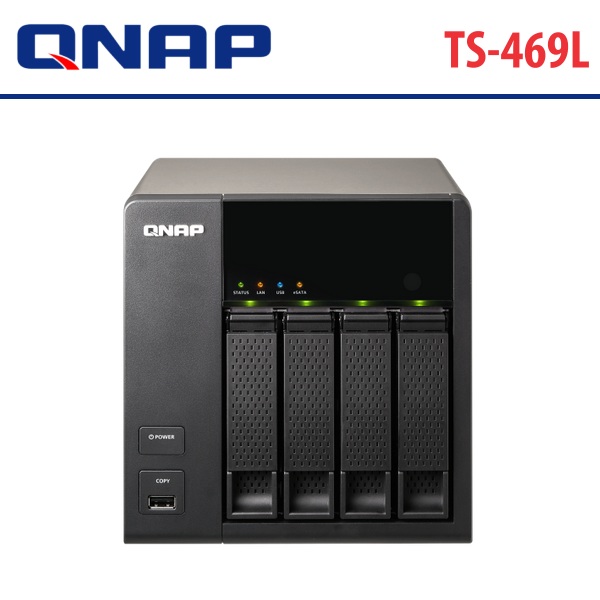

Qnap TS-469L Turbo NAS Server Nigeria

The Qnap TS-469L Nigeria Turbo NAS Server for SMBs is a 4-bay, all-in-one NAS server with exceptional performance that meets the storage requirements of modern SMB IT environments. It includes secure cross-platform file sharing for Windows, Mac and Linux/UNIX users, an iSCSI / IP-SAN storage combo solution and a number of value-added business applications. Critical business information can be safely protected against unexpected data loss with a set of integrated backup solutions. It is also an ideal shared storage solution for virtualized and clustered environments, with VMware Ready and Citrix Ready certification and has proven compatibility with Microsoft Hyper-V environments.

The intuitive MyCloudNAS service simplifies the process of publishing content present in the Turbo NAS over the Internet and helps you create a private cloud in just a few simple steps. The mobile apps Qfile, Qmanager and Qmobile provide iOS or Android users a convenient way to access and monitor the Turbo NAS live and on the go.

You can use the Surveillance Station Pro on the Turbo NAS to manage the connected IP cameras and set up a video surveillance system with comprehensive monitoring, recording and playback features through mobile access.

Features

Cross-platform Sharing with Antivirus
- The Turbo NAS supports SMB/CIFS, NFS and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. Your accounts and shared folders can be created via a user-friendly web based interface without IT expertise. The integrated antivirus solution for the Turbo NAS ensures business stability. It offers detection against the latest viruses, malware, worms and Trojan horses.
Windows Active Directory (AD) and LDAP Directory Service
- The Windows AD and Lightweight Directory Access Protocol (LDAP) is a directory service feature that enables you to retrieve user accounts from Windows AD or LDAP based directory server to the Turbo NAS. This reduces time and effort in setting up a new account. You can use the same login name and password to access the Turbo NAS.
Shared Folder Aggregation
- As an added convenience, you can connect to the shared folders of other servers on Microsoft Networking via the portal folder on the NAS. This minimizes the hassle of logging in to various servers one by one.
ISO File Archiving and Sharing
- The Qnap TS-469L Nigeria supports the mounting of ISO images of CD or DVD discs for network sharing folders for data archiving, storage and sharing. This feature conserves much more space than storing the physical discs. It lowers the risk of data loss due to long-term use of the discs and improves the performance of data sharing on a business network.
Windows ACL (Access Control List)
- This feature offers sophisticated shared folder permission settings and thus simplifies IT management for businesses with a large number of users. By enabling the Windows ACL, basic permissions and 13 advanced permissions can be set up from the Windows Explorer and synchronized with the permission settings of the Turbo NAS. In addition, the same permissions apply to AFP, FTP, Web File Manager and Samba when “Advanced Folder Permissions” are enabled at the same time.
Advanced Folder Permissions
- You can configure folder/subfolder access to the Qnap TS-469L Nigeria with advanced folder permissions. With this feature enabled, you can manage the folder permissions from Microsoft Windows or the web-based management interface of the Turbo NAS easily.
Policy-Based Unauthorized IP Blocking
- You can allow, deny or auto block specified IP addresses or network domains, which attempt to connect to the Turbo NAS, via SSH, Telnet, HTTP(S), FTP, Samba or AFP.
Remote Login
- The Qnap TS-469L Nigeria supports remote login via SSH (secure shell) or Telnet connection.
SSL Security (HTTPS)
- Qnap TS-469L Nigeria supports HTTPS connection. You can upload a secure certificate and RSA private key in X.509PEM format issued by a trusted provider to allow access to the NAS server via secure SSL login.

Specifications

Hardware
CPU	Intel Atom 2.13 GHz Dual-core processor
DRAM	1 GB RAM
Flash Memory	512 MB DOM
Hard Disk Drive	4 x 3.5″ (88.9 mm) or 2.5″ (63.5 mm) SATA 3 Gb/s hard drive or SSD hard drive
Hard Disk Tray	4x Hot-swappable
LAN Port	2x Gigabit RJ-45 Ethernet ports
LED Indicators	Status, LAN, USB, eSATA, Power, HDD 1, HDD 2, HDD 3, HDD 4
USB	2x USB 3.0 port (Back : 2) 5x USB 2.0 port (Front : 1; Back : 4) Support USB printer, pen drive, USB hub, and USB UPS and more
eSATA	2x eSATA ports (back)
Buttons	Power, USB One-Touch-Backup, Reset
Alarm Buzzer	System warning
Form Factor	Tower
Sound Level	Without HDD installed : 34.7 dB Stand by : 34.1 dB In operation : 36.8 dB (with 4x 500 GB HDD installed)
Power Consumption	Sleep mode : 25 W In Operation : 43 W Power-off (in WOL mode) : 1 W (with 4x 500 GB HDD installed)
Power Supply	Input : 100-240 VAC, 50/60 Hz, Output : 250 W
Secure Design	K-lock security slot for theft prevention
VGA	Reserved VGA interface for maintenance
Fan	1x quiet cooling fan 3.54″ (9 cm), 12 VDC
Software
Operating System	QNAP Turbo System (QTS) 3.7, Embedded Linux
Supported Operating System	Windows XP, Vista, Windows 7 (32/64-bit), Windows Server 2003/2008 R2 Apple Mac OS X Linux & UNIX
Supported Web Browsers	Microsoft Internet Explorer 8, 9 Mozilla Firefox 8+ Apple Safari 4+ Google Chrome
Language Support	Chinese (Traditional and Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
File System	Internal Hard Drive : EXT3, EXT4 External Hard Drive : EXT3, EXT4, NTFS, FAT32, HFS+
Networking	TCP/IP (IPv4 and IPv6 : Dual stack) Dual Gigabit NICs with jumbo frame Failover Multi-IP settings Port trunking/NIC teaming (Modes : Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb) Service binding based on network interfaces Virtual LAN (VLAN) DHCP client, DHCP server Protocols : CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP and SMSC UPnP and Bonjour discovery USB Wi-Fi adapter support
Backup Solution	Real-time Remote Replication (RTRR) Works as both RTRR Server & Client with bandwidth control Real-time & Scheduled backup Encryption, Compression, File filter, and Transfer rate limitation Block-level Remote Replication Works as both Rsync Server & Client with bandwidth control Encrypted replication between QNAP NAS servers USB one touch backup (Import/Export) Desktop backup by QNAP NetBak Replicator for Windows Apple Time Machine support with backup management Data backup to multiple external storage devices Data backup to cloud storage (Amazon S3, ElephantDrive, and Symform)
Security	IP Filter and Policy-based automatic IP blocking Network Access Protection with Auto-blocking : SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP Encrypted Access : HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), Encrypted remote replication between QNAP NAS servers (Rsync over SSH) CIFS Host Access Control for shared folders Antivirus protection FIPS 140-2 validated AES 256-bit volume-based data encryption AES 256-bit external drive encryption Importable SSL certificate Instant alert via E-mail, SMS, Instant messaging (Windows Live), and beep
Disk Management	Single Disk, JBOD, RAID 0, 1, 5, 6, 10, 5+hot spare Online RAID capacity expansion and online RAID level migration Bad block scan and hard drive S.M.A.R.T. RAID recovery Bitmap support
iSCSI (IP SAN)	iSCSI target Multi-LUNs per target Up to 256 targets/LUNs combined Supports LUN mapping & masking Online LUN capacity expansion Supports SPC-3 persistent reservation Supports MPIO & MC/S iSCSI LUN backup, one-time snapshot, and restore iSCSI connection and management by QNAP Finder (Windows) Virtual disk drive (via iSCSI Initiator) Stack chaining master Max no. of virtual disk drives : 8
Server Virtualization and Clustering	Supports VMware vSphere Supports Citrix XenServer Supports Windows server 2008 R2 Hyper-V & Failover clustering
Power Management	Wake on LAN Internal hard drive standby mode Scheduled Power on/off (Max 15 settings) Automatic power on after power recovery USB and network UPS support with SNMP management
Access Rights Management	Max no. of users : 4,096 Max no. of user groups : 512 Max no. of network shares : 512 Batch Users creation Import/Export users User Quota management Subfolder permissions support for CIFS/SMB, AFP, FTP and Web File manager
Domain Authentication Integration	Microsoft Active Directory (AD) LDAP Server LDAP Client Domain users login via CIFS/SMB, AFP, FTP, and Web File Manager
MyCloudNAS Service	Private Cloud Storage and Sharing Free Host Name registration (DDNS) Auto Router configuration (via UPnP) MyCloudNAS Connect for easy VPN connection (Windows utility)
Storage Plug & Play	Windows Software : QNAP Finder Create and map shared folders Create and connect to iSCSI target/LUN
Web Administration	AJAX-based UI Smart fan control Dynamic DNS (DDNS) SNMP (v2 & v3) Resource monitor Network recycle bin for file deletion via CIFS/SMB and AFP-Automatic cleanup File Type filter Comprehensive logs (events & connection) Syslog client Firmware Live update System settings backup and restore Restore to factory default Mobile App Qmanager for remote monitoring
Powerful All-in-one server
File Server	File sharing across Windows, Mac, and Linux/UNIX Windows ACL Advanced folder permission for SMB, AFP, FTP, Web File manager Shared Folder aggregation (CIFS/SMB) Web File manager Supports ISO mounting Direct file viewing via Google Doc Create and send download links for public file sharing with expiration time and password protection Mobile App : Qfile for file browsing and management
FTP Server	FTP over SSL/TLS (Explicit) Max no. of concurrent connections : 256 FXP supported Passive FTP port range control FTP bandwidth & connection control Unicode support
Backup Server	Remote Replication Server (over Rsync) Real-time Remote Replication to another QNAP NAS or FTP Server Apple Time Machine support Windows Client backup application : QNAP NetBak Replicator Third Party Backup Software Support : Acronis True Image, CA BrightStor, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper and more
Web Server	HTTP/HTTPS connections Supports WebDAV connection Support Virtual Host (Max : 32) Importable SSL certificate
Database Server	Built-in MySQL Server Web-based Management via phpMyAdmin (QPKG)
Print Server	Max no. of printers : 3 Supports Internet printing protocol Print job display and management IP and Domain Name-based privilege control Supports Apple Bonjour printing
Syslog Server	Centralized Log monitoring and archiving Immediate E-mail alerts Supports Log filtering
RADIUS Server	Centralized account management and authentication for network access Supports PAP, EAP-TLS/PAP, and EAPTTLS/PAP authentication
VPN Server	Secure Remote Access : PPTP & OpenVPN VPN services Remote access to other resources on local network Max no. of clients : 30
Surveillance Station Pro	Max. IP Cameras : 12 Mobile app : VMobile (iOS & Android)
iTunes Server	Audio and Video Sharing (AIF, M4A, M4B, M4V, MOV, MP1, MP2, MP3, MP4, MPEG, MPG, WAV)) Smart playlist for iTunes client (Windows & Mac OS)
DLNA/UPnP Media Server	Built-in Twonky Media Server Supports UPnP media player such as Playstation 3 and Xbox 360 Supported format (actual playback capabilities may vary depending on the DLNA client) Audio : MP3, MP4, M4A, M4A (ALAC), M4B, 3GP, APL, AC3, M1V, M4V, MOV, AAC, AMR, AWB, WAV, PCM, LPCM, MP1, MP2, AIF, AIFF, AIFC, SND, WMA, OGG, FLAC Photo : JPG, JPE, JPEG, TIFF, TIF, GIF, PNG, BMP Video : WMV, ASF, VDR, AVI, XVID, DIVX, FLV, MPG, MPE, MTS, M2TS, M2T, MPEG, SPTS, M2P, M2V, MP2T, MP2P, MPG2, DVR-MS, VOB Playlist : M3U, M3U8, WPL, PLS
Multimedia Station	Supports Photo, Audio and Video Image slideshow and rotation Automatic & Schedule thumbnail generation for easy browsing Display photo details from EXIF : Date, Exposure Time, Aperture Display audio details from ID3 Tag : Album Cover, Title, Artist, Album Access Authority management Multimedia (Video & Audio) streaming Supports Cooliris Supports Web Publishing (Facebook, MySpace, MSN Live, Twitter, Plurk, Blogger) Share photos by Email Supported formats : Photo – JPG/JPEG, GIF, PNG Audio – MP3 Video Playback : FLV, MPEG-4 Video (H.264 + AAC) Transcode : AVI, M4V, MPG/MPEG, RM/RMVB, WMV QNAP Exclusive iPhone & Android App – Qmobile
Photo Station	Supported File Formats : Photo : JPG/JPEG, GIF, PNG, BMP, RAW (RAW : .arw, .srf, .sr2, .dcr, .kdc, .cr2, .crw, .nef, mrw, .pef, .paf, .3fr, .erf, .mef, .mos, .orf, .rw2, .dng, .x3f, .tif, .nrw, .raf) Video : FLV, MPEG-4 Video (H.264 + AAC) Image slideshow with background music, thumbnails, and different playback modes Online photo editing by Pixlr editor Geotagging photos with Google Maps Slideshow sharing (from private albums) with password protection Photo publishing to social websites (Facebook, MySpace, Twitter, Plurk, and Blogger) Photo sharing by email
Music Station	Supported Audio Formats : MP3, MP4, OGG, WAV, AIFF, AU, FLAC, M4A, APE, AAC Local playback with USB speaker/sound card Browse other UPnP Media Servers on local network Internet Radio (MP3) Music alarm (up to 8 alarms) Playback control by QNAP Mobile App : QMobile music remote
Download Station	PC-less BT, FTP, HTTP download (up to 500 tasks) BT download Supports magnet links Supports TCP/UDP Tracker protocol Scheduled download Configurable port range Bandwidth control RSS subscription and download (Broadcatching) Selectable download files HTTP/ FTP download Configurable saving directory Bulk download with wildcard settings RapidShare download support QNAP Download Management Software : QGet For both Windows & Mac OS Manage the download tasks of multiple QNAP NAS remotely over LAN or WAN
Antivirus	Protection against the latest known viruses, trojans and other threats Free virus databases update on manual or scheduled basis Multiple scan tasks (max : 64, concurrent : 5) with custom folder selection and scheduled Scanning Email notification upon task completion or virus detection Quarantines or deletes infected files
QPKG Center	Expands application services by easy online installation A wide variety of official and community QPKG Add-ons Business eyeOS GLPI Squid Proxy Server Vtiger CRM CMS Gallery Joomla WordPress Xoops Communications Asterisk XMail Mail Server Xeams Mail Server Download-MLDonkey NZBGet pyLoad SABnzbdplus Transmission Entertainment QiTunesAir IceStation Plex Media Server PS3 Media Server Squeezebox Server Utilities iStat Optware IPKG phpMyAdmin Piwik Miscellaneous Java Runtime Environment Mono Python QUSBCam Tomcat
General
Temperature	32 – 104°F (0 – 40°C)
Humidity	0 to 95% R.H.
Dimensions	6.97 x 7.09 x 9.25″ (177 x 180 x 235 mm)
Weight	8.04 lb (3.65 kg)
