Hardware Specification |
Processor |
Intel Atom 1.86 GHz dual-core processor |
DRAM |
1 GB RAM (expandable up to 3 GB) |
Flash Memory |
512 MB DOM |
Hard Disk Drive |
2 x 3.5″ or 2.5″ SATA 3 Gb/s hard drive or SSD |
Hard Disk Tray |
2 x hot-swappable tray |

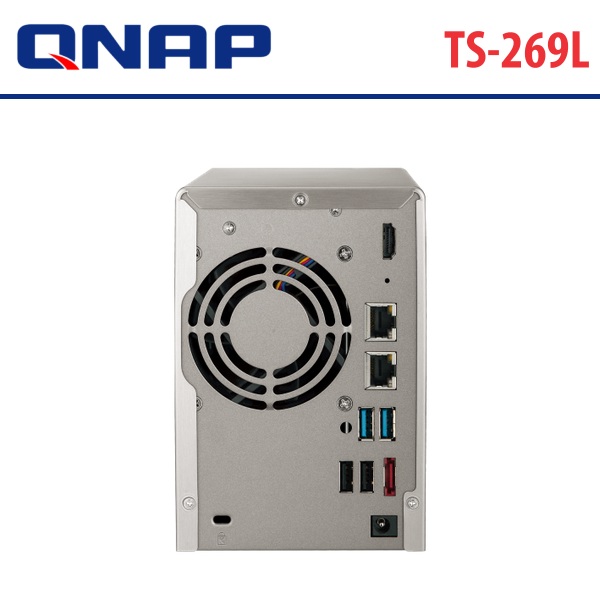

LAN Port |
2 x Gigabit RJ-45 Ethernet ports |
LED Indicators |
Status, LAN, USB, eSATA, Power, HDD 1, HDD 2 |
USB |
- 2 x USB 3.0 ports (back : 2)
- 3 x USB 2.0 ports (front : 1; back : 2)
- Support USB printer, pen drive, USB hub, and USB UPS etc
|
eSATA |
1 x eSATA port (back) |
Button |
System : Power button, USB one-touch-backup button, reset button |
Alarm Buzzer |
System warning |
Form Factor |
Tower |
Sound Level |
- HDD Sleep : 18.5 dB
- In Operation : 20.4 dB (with 2 x 500 GB HDDs installed)
|
Secure Design |
K-lock security slot for theft prevention |
Fan |
1 x 2.7″ (7 cm) quiet cooling fan, 12 VDC |
Software Specification |
Operating System |
QNAP Turbo System (QTS) 3.7, embedded Linux |
Supported Clients |
- Windows XP, Vista, Windows 7/8 (32/64-bit), Windows Server 2003/2008 R2/2012
- Apple Mac OS X
- Linux
- UNIX
|
Supported Browsers |
- Microsoft Internet Explorer 8, 9
- Mozilla Firefox 8+
- Apple Safari 4+
- Google Chrome
|
Multilingual Support |
Chinese (Traditional & Simplified), Czech, Danish, Dutch, English,
Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean,
Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish,
Swedish, Thai, Turkish |
File System |
- Internal Hard Drive : EXT3, EXT4
- External Hard Drive : EXT3, EXT4, NTFS, FAT32, HFS+
|
Networking |
- TCP/IP (IPv4 and IPv6 : Dual stack)
- Dual Gigabit NICs with Jumbo Frame :
- Failover
- Multi-IP settings
- Port trunking/NIC teaming (Modes : Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb)
- Service binding based on network interfaces
- Virtual LAN (VLAN)
- DHCP client, DHCP server
- Protocols :
- CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
- UPnP and Bonjour Discovery
- USB Wi-Fi adapter support
|
Backup Solution |
- Real-Time Remote Replication (RTRR) :
- Works as Both RTRR server and client with bandwidth control
- Real-time and Scheduled Backup
- Encryption, compression, file filter, and transfer rate limitation
- Block-Level Remote Replication :
- Works as Both Rsync server and client with bandwidth control
- Encrypted replication between QNAP NAS servers
- USB one-touch-backup (import/export)
- Desktop backup by QNAP NetBak replicator for Windows
- Apple Time Machine support with backup management
- Data backup to multiple external storage devices
- Data backup to cloud storage (Amazon S3, ElephantDrive, and Symform)
|
Security |
- IP Filter and Policy-based Automatic IP Blocking
- Network Access Protection with Auto-Blocking : SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
- Encrypted Access : HTTPS, FTP with SSL/TLS (explicit), SSH/SFTP (admin only), encrypted remote replication between QNAP NAS Servers (Rsync over SSH)
- CIFS host access control for shared folders
- Antivirus protection
- FIPS 140-2 validated AES 256-bit volume-based data encryption
- AES 256-bit external drive encryption
- Importable SSL certificate
- Instant Alert via email, SMS, instant messaging (Windows Live), beep, and LCD panel
|
Disk Management |
- Single disk, JBOD, RAID 0, 1
- Online RAID capacity expansion and online RAID level migration
- Bad block scan and hard drive S.M.A.R.T.
- RAID recovery
- Bitmap support
|
iSCSI (IP SAN) |
- iSCSI Taget :
- Multiple LUNs per target
- Up to 256 targets/LUNs combined
- Supports LUN mapping and masking
- Online LUN capacity expansion
- Supports SPCr-3 persistent reservation
- Supports MPIO and MC/S
- iSCSI LUN backup, one-time snapshot, and restore
- iSCSI connection and management by QNAP Finder (Windows)
- Virtual Disk Drive (via iSCSI initiator) :
- Stack chaining master
- Maximum 8 virtual disk drives
|
Server Virtualization and Clustering |
- Supports VMware vSphere
- Supports Citrix XenServer
- Supports Windows Server 2008 R2 Hyper-V and failover clustering
|
Power Management |
- Wake on LAN
- Internal hard drive Standby mode
- Scheduled power on/off (maximum 15 settings)
- Automatic power on after power recovery
- USB and network UPS support with SNMP management
|
Access Rights Management |
- Maximum 4,096 users
- Maximum 512 user groups
- Maximum 512 network shares
- Batch user creation
- Import/Export users
- User quota management
- Subfolder permissions support for CIFS/SMB, AFP, FTP and Web File Manager
|
Domain Authentication Integration |
- Microsoft Active Directory (AD)
- LDAP server
- LDAP client
- Domain users login via CIFS/SMB, AFP, FTP, and Web File Manager
|
MyCloudNAS Service |
- Private cloud storage and sharing
- Free host name registration (DDNS)
- Auto router configuration (via UPnP)
- MyCloudNAS connect for easy VPN connection (Windows utility)
|
Storage Plug and Play |
- Windows Software : QNAP Finder
- Create and map shared folders
- Create and connect to iSCSI target/LUN
|
Web Administration |
- AJAX-based user interface
- Smart fan control
- Dynamic DNS (DDNS)
- SNMP (v2 and v3)
- Resource monitor
- Network Recycle Bin for File Deletion via CIFS/SMB and AFP :
- Automatic cleanup
- File type filter
- Comprehensive logs (events and connection)
- Syslog client
- Firmware live update
- System settings backup and restore
- Restore to factory default
- Mobile App Qmanager for remote monitoring
|
All-in-One Server |
File Server |
- File sharing across Windows, Mac, and Linux/UNIX
- Windows ACL
- Advanced folder permission for SMB, AFP, FTP, Web File Manager
- Shared folder aggregation (CIFS/SMB)
- Web File Manager :
- Supports ISO mounting
- Direct file viewing via Google Doc
- Create and send download links for public file sharing with expiration time and password protection
- Mobile App : Qfile for file browsing and management
|
FTP Server |
- FTP over SSL/TLS (explicit)
- Maximum 256 concurrent connections
- FXP supported
- Passive FTP port range control
- FTP bandwidth and connection control
- Unicode support
|
Backup Server |
- Remote Replication Server (over Rsync)
- Real-time remote replication to another QNAP NAS or FTP server
- Apple Time Machine support
- Windows Client Backup Application : QNAP NetBak Replicator
- Third Party Backup Software Support : Acronis True Image, CA BrightStor, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper, etc
|
Web Server |
- HTTP/HTTPS connections
- Supports WebDAV connection
- Support virtual host (maximum 32)
- Importable SSL certificate
|
Database Server |
- Built-in MySQL server
- Web-based management via phpMyAdmin (QPKG)
|
Print Server |
- Maximum 3 printers
- Supports Internet Printing Protocol :
- Print job display and management
- IP and domain name-based privilege control
- Supports Apple Bonjour Printing
|
Syslog Server |
- Centralized log monitoring and archiving
- Immediate email alerts
- Supports log filtering
|
RADIUS Server |
- Centralized account management and authentication for network access
- Supports PAP, EAP-TLS/PAP, and EAPTTLS/PAP authentication
|
TFTP Server with PXE Booting VPN Server |
- Secure Remote Access : PPTP and OpenVPN VPN services
- Remote access to other resources on local network
- Maximum 30 clients
|
Surveillance Station Pro |
- Maximum 12 IP cameras
- Includes 1 free camera license
- Mobile App : VMobile (iOS and Android)
|
iTunes Server |
- Audio and video sharing (AIF, M4A, M4B, M4V, MOV, MP1, MP2, MP3, MP4, MPEG, MPG, WAV)
- Smart playlist for iTunes client (Windows and Mac OS)
|
DLNA Media Server |
- Built-in TwonkyMedia server
- Supports UPnP media player such as PlayStation 3 and Xbox 360
- Supported Format :
- Music : MP3, WMA, WAV, 3GP, M4A, MP4, LPCM, Ogg Vorbis, FLAC, MP2, AC3, MPA, MP1, AIF, MID, ISMA
- Photo : JPEG, PNG, TIF, BMP
- Video : MPEG1, MPEG2, MPEG2-TS, MPEG4, AVI, WMV, VOB, DivX, 3GP, VDR, ASF, MPE, DVR-MS, Xvid, M1V, M4V, WEBM, QT, F4V, ISMV, MKV, MOV
- Playlist : M3U, M3U8, WPL, PLS
|
Multimedia Station |
- Supports photo, audio, and video
- Image slideshow and rotation
- Automatic & scheduled thumbnail generation for easy browsing
- Display Photo Details from EXIF : Date, exposure time, aperture, etc
- Display Audio Details from ID3 Tag : Album cover, title, artist, album, etc
- Access authority management
- Multimedia (video and audio) streaming
- Supports Cooliris
- Supports web publishing (Facebook, MySpace, MSN Live, Twitter, Plurk, Blogger)
- Share photos by email
- Supported Formats :
- Photo : JPG/JPEG, GIF, PNG
- Audio : MP3
- Video : Playback : FLV, MPEG-4 video (H.264 + AAC)
- Transcode : AVI, M4V, MPG/MPEG, RM/RMVB, WMV
- QNAP exclusive iPhone and Android App : Qmobile
|
Photo Station |
- Supported File Formats :
- Photo : JPG/JPEG, GIF, PNG, BMP, RAW (.arw, .srf, .sr2, .dcr, .kdc, .cr2, .crw, .nef, mrw, .pef, .paf, .3fr, .erf, .mef, .mos, .orf, .rw2, .dng, .x3f, .tif, .nrw, .raf)
- Video : FLV, MPEG-4 video (H.264 + AAC)
- Image slideshow with background music, thumbnails, and different playback modes
- Online photo editing by Pixlr editor
- Geotagging photos with Google Maps
- Slideshow sharing (from private albums) with password protection Photo Publishing to Social Websites (Facebook, MySpace, Twitter, Plurk, and Blogger) Photo sharing by email
|
Music Station |
- Supported Audio Formats :
- MP3, MP4, OGG, WAV, AIFF, AU, FLAC, M4A, APE, AAC
- Browse other UPnP media servers on local network
- Internet radio (MP3)
|
Download Station |
- PC-less BT, FTP, HTTP download (up to 500 tasks)
- BT download
- Supports magnet links
- Supports TCP/UDP tracker protocol
- Scheduled download
- Configurable port range
- Bandwidth control
- RSS subscription and download (broadcatching) -Selectable download files
- HTTP/ FTP download
- Configurable saving directory
- Bulk download with wildcard settings
- RapidShare download support
- QNAP download management software : QGet
- For both Windows and Mac OS
- Manage the download tasks of multiple QNAP NAS remotely over LAN or WAN
|
Antivirus |
- Protection against Viruses, Trojans, and other Threats
- Free virus databases update on manual or scheduled basis
- Multiple scan tasks (maximum : 64, concurrent : 5) with custom folder selection and scheduled scanning
- Email notification upon task completion or virus detection
- Quarantines or deletes infected files
|
Software |
QGet
- For both Windows and Mac OS
- Manage the download tasks of multiple QNAP NAS remotely over LAN or WAN
|
QPKG Center |
- Expands application services by easy online installation
- A wide variety of official and community QPKG add-ons*
- Business :
- eyeOS
- GLPI
- Squid Proxy Server
- Vtiger CRM
- CMS :
- Gallery
- Joomla!
- WordPress
- Xoops
- Communications :
- Download :
- MLDonkey
- NZBGet
- pyLoad
- SABnzbdplus
- Transmission
- Entertainment :
- QiTunesAir
- IceStation
- Plex Media Server
- PS3 Media Server
- Squeezebox Server
- Utilities :
- iStat
- Optware IPKG
- phpMyAdmin
- Piwik
- Miscellaneous :
- Java Runtime Environment
- Mono
- Python
- QUSBCam
- Tomcat and more
|
Power |
Power Consumption |
- Sleep Mode : 16 W
- In Operation : 25 W
- Power-Off (In WOL Mode) : 1 W (with 2 x 1 TB HDD installed)
|
Power Supply |
- Input : 100 to 240 VAC, 50/60 Hz
- Output : 90W
|
Environmental |
Temperature |
32 to 104°F (0 to 40˚C) |
Relative Humidity |
- 5 to 95% (non-condensing)
- Wet Bulb : 80°F (27˚C)
|
Physical Specifications |
Dimensions |
4.0 x 5.9 x 8.5″ (10.2 x 15.0 x 21.6 cm) |
Weight |
3.84 lb (1.74 kg) |
