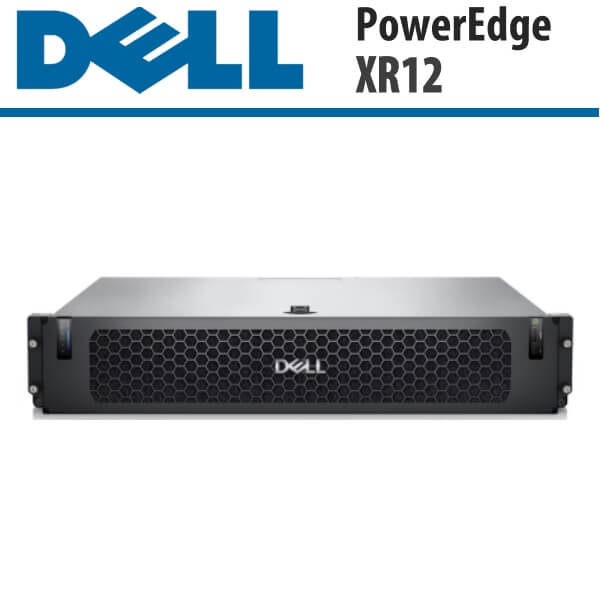

PowerEdge XR12 Rack Server Nigeria

The Dell EMC PowerEdge XR12 Nigeria is a high-performance, compact, and rugged 2U rack server designed to thrive in demanding edge environments. Engineered for durability and versatility, it is an ideal solution for industries such as telecommunications, retail, restaurants, government, and the military. Its marine-compliant build ensures seamless operation in extreme conditions where conventional servers often struggle. With a depth of just 16 inches (400 mm), the XR12 efficiently integrates powerful hardware, including 3rd generation Intel® Xeon® Scalable processors with up to 36 x86 cores, support for accelerators, DDR4 memory, PCIe 4.0, persistent memory, and up to six drives to enhance workload performance. Certified rugged, it withstands dust, extreme temperatures, shock, and vibration, making it a reliable choice for edge computing applications in telecommunications and defense sectors. Additionally, its adaptable design features dual front and rear port configurations with reverse airflow support, reducing the need for extensive HVAC upgrades or expensive retrofitting.

Built for longevity, the XR12 enables businesses to maintain operational continuity while minimizing downtime and service disruptions. Security is a top priority, with Dell EMC integrating robust cybersecurity features to protect the server throughout its lifecycle. Secure Component Verification and Silicon Root of Trust provide a strong foundation before deployment, while OpenManage Secure Enterprise Key Manager and Automatic Certificate Enrollment enhance cyber resilience. Advanced tools such as iDRAC9 Telemetry, BIOS live scanning, and Rapid OS recovery further strengthen threat detection and mitigation capabilities.

To simplify IT management, the Dell EMC PowerEdge XR12 comes with the intuitive OpenManage portfolio, streamlining operations through automation and intelligent monitoring. Built-in telemetry streaming, thermal management, and RESTful API with Redfish enable real-time visibility and control, while integrated change management ensures seamless, zero-touch configuration updates. The XR12 also supports full-stack management, offering compatibility with platforms like Microsoft, VMware, ServiceNow, and Ansible. Whether deployed in high-security military applications or space-constrained retail environments, the PowerEdge XR12 delivers unmatched efficiency, security, and reliability.

Embrace the future of edge computing with the Dell EMC PowerEdge XR12 Nigeria—an innovative, high-performance solution built to power operations in even the most challenging environments.

Features and Design

Power business insights at the edge

The new Dell EMC PowerEdge XR12 Nigeria is a ruggedized, MIL-STD and NEBS Level 3 compliant 2U server. At only 16 inches/400mm deep it offers accelerator-based performance outside the data center.

Support new services in challenging locations

The Dell EMC PowerEdge XR12 Nigeria is a compact, 2U ruggedized and certified server for conditions outside the data center. Designed for telco, defense, remote office, back office and retail applications, the PowerEdge XR12 is built to withstand dust, extreme temperatures, shock, vibration, and other environmental variants.

Boost performance at the edge with up to 36 x 86 cores, support for accelerators, the latest memory and drive technologies.
Add versatility with reduced depth and front and rear port access options.
Offer game-changing services without downtime and disruption.
Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools for on-premises, edge and cloud environments.

Technical Specifications

Processor

One 3rd Generation Intel® Xeon® Scalable processor with up to 36 cores

Operating System

Canonical® Ubuntu® Server LTS
Citrix® Hypervisor
Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux®
Red Hat® Enterprise Linux® for Real Time
SUSE® Linux Enterprise Server
VMware® ESXi

Chipset

Intel® C620 series chipset

Accelerators

Up to 2 double-width 300 W
Up to 2 single-width 70 W or 150 W

Memory

DIMM Speed: Up to 3200 MT/s
Memory Type: RDIMM, LRDIMM, Intel® Optane™ PMem 200 Series
Memory Module Slots: 8 DDR4 DIMM slots
Maximum RAM:
- RDIMM: 512 GB
- LRDIMM: 1 TB
- Intel® Optane™ PMem 200 Series: 512 GB

Storage

Drive Bays: Up to 6 x 2.5-inch SAS/SATA/NVMe SSDs (max 92 TB)
Rear Bays: N/A
Storage Controllers:
- Internal Controllers: PERC H755, PERC H345, HBA355i
- External Controllers: PERC H840, HBA355e
- Software RAID: S150
Internal Boot: Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, USB 3.0

Security

Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management

Embedded / At-the-Server:
- iDRAC9
- iDRAC Service Module
- iDRAC Direct
Consoles:
- OpenManage Enterprise
- OpenManage Power Manager plugin
- OpenManage SupportAssist plugin
- OpenManage Update Manager plugin
Mobility: OpenManage Mobile
Tools:
- iDRAC RESTful API with Redfish
- IPMI
- RACADM CLI
- System Update Utility
- Update Catalogs
OpenManage Integrations:
- BMC Truesight
- Microsoft® System Center
- RedHat® Ansible® Modules
- VMware® vCenter® and vRealize Operations Manager
OpenManage Connections:
- IBM Tivoli® Netcool/OMNIbus
- IBM Tivoli® Network Manager IP Edition
- Micro Focus® Operations Manager
- Nagios® Core
- Nagios® XI

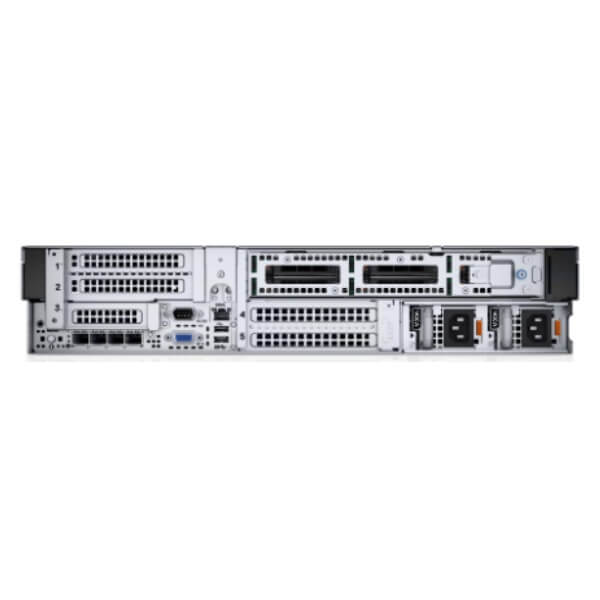

Ports

Network Ports: 4 x 25 GbE SFP+ LOM
Rear Accessed Configuration:
- Front Ports:
  - 1 x iDRAC Direct (Micro-AB USB) port
  - 1 x USB 2.0
- Rear Ports:
  - 1 x USB 2.0
  - 1 x USB 3.0
  - 1 x iDRAC dedicated port
  - 1 x Serial
  - 1 x VGA
- Internal Ports: 1 x USB 3.0
Front Accessed Configuration:
- Front Ports:
  - 2 x USB 2.0
  - 1 x iDRAC dedicated port
  - 1 x USB 3.0
  - 1 x Serial
  - 1 x VGA
  - 1 x iDRAC Direct (Micro-AB USB) port
- Rear Ports: N/A
