PowerEdge XE2420 Cloud-Ready Server Nigeria

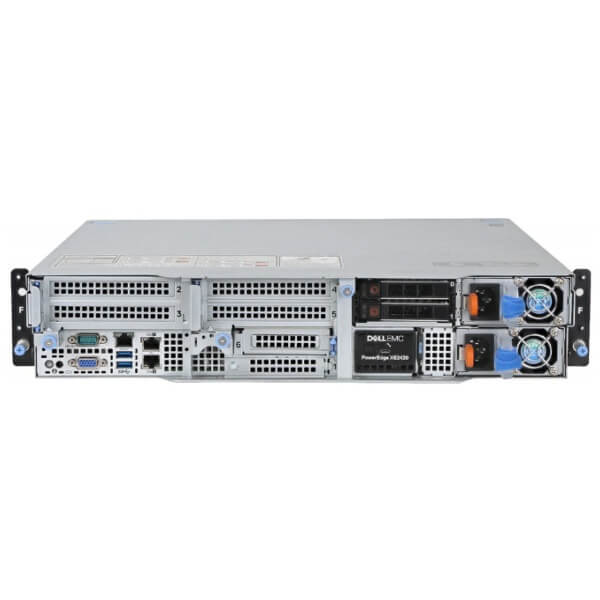

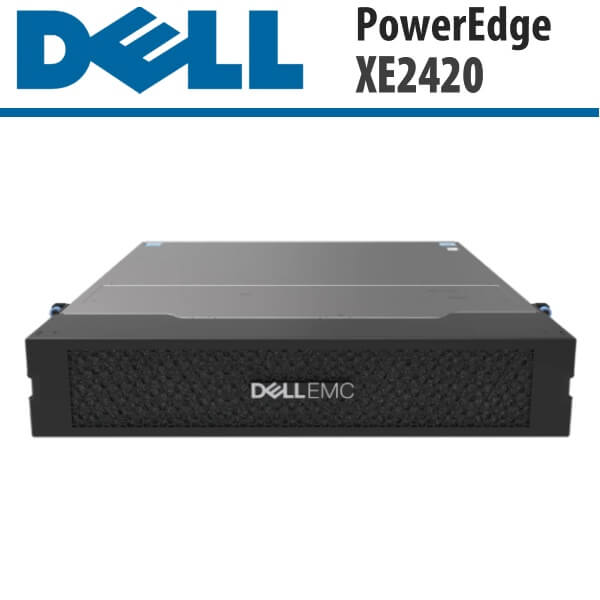

The Dell EMC PowerEdge XE2420 Nigeria is a high-performance, purpose-built edge server designed to excel in the most demanding and harsh computing environments. Offering an impressive combination of reliability, power, and scalability, the XE2420 is the ideal solution for industries such as telecommunications, retail, and manufacturing, where reliability and low-latency performance are critical. Its dual-socket, 2U short-depth form factor is perfect for space-constrained environments, while its rugged design ensures it thrives under extreme conditions with an extended operating temperature range from 5°C to 40°C (41°F to 104°F). The server is also equipped with an optional dust filter, making it suitable for environments where particulate matter is a concern.

Designed to tackle resource-intensive workloads, the XE2420 features industry-leading 2-socket performance, providing power to manage even the most complex edge applications. Its scalability is further enhanced by the ability to integrate up to four accelerators, such as those needed for 5G processing, streaming analytics, and other data-heavy applications. The server’s storage capacity also stands out, offering flexible options with SSD, NVMe, and up to 92TB of storage to meet the needs of large-scale data operations. This versatility makes the XE2420 Nigeria an ideal choice for applications that demand high computational power and extensive storage capabilities.

Beyond raw performance, the PowerEdge XE2420 Nigeria also excels in management and security. With iDRAC9 integration, administrators can easily monitor and manage the server remotely, while telemetry and automation ensure real-time performance optimization for emerging edge applications. Dell’s focus on cyber resilience provides an added layer of security throughout the server’s lifecycle, from design to retirement. The front-accessible I/O and power ports further enhance serviceability, which is essential in environments where quick maintenance is crucial. Additionally, the XE2420 is fully compatible with VMware vSAN (AF-4) and various operating systems, including ESXi, RHEL, Windows, Ubuntu, and SUSE, ensuring seamless integration into diverse IT infrastructures.

The Dell EMC PowerEdge XE2420 Nigeria is also designed for scalability and reliability in edge environments, working seamlessly with the Dell EMC Modular Data Center Micro 4-series for reliable, expandable edge infrastructure. Whether managing real-time analytics, supporting retail point-of-sale systems, driving manufacturing automation, or supporting 5G applications such as MEC (Mobile Edge Computing), CDN (Content Delivery Networks), and VRAN (Virtualized Radio Access Networks), the XE2420 ensures consistent and efficient performance.

By choosing the Dell EMC PowerEdge XE2420 Nigeria, enterprises can rest assured that their edge infrastructure is equipped to meet the challenges of today while positioning themselves for future growth. With its robust design, advanced performance features, and comprehensive security, the XE2420 is a powerful and reliable solution for modern edge computing environments.

Technical Specifications

• Processor:
  • Two 2nd Generation Intel® Xeon® Scalable processors (max 150W Gold)
• Storage:
  • Config 1A: Up to 2x 2.5” SATA/NVMe (no PERC/HBA), Max 15.36TB
  • Config 2C: Up to 4x 2.5” universal SAS/SATA/NVME with PERC/HBA, Max 61.44TB
  • Config 3A: Up to 6x EDSFF E1.L SSD, Max 92.16TB
• Chipset:
  • Intel® C620 Series chipset
• Memory:
  • 16x DDR4 RDIMM/LR-DIMM (12 DIMMs balanced), up to 2993 MT/s
• Boot OS Drive:
  • HW RAID BOSS with 2x M.2 drives, available in 240GB and 480GB
• Embedded/At-Server Management:
  • iDRAC9, iDRAC Direct, iDRAC REST API with Redfish
• GPU/Flash PCI Cards:
  • Up to 2x PCIe x16, Up to 300W passive FHFL cards (e.g., NVIDIA V100/s or NVIDIA RTX6000)
  • Up to 4x PCIe x8; 75W passive (e.g., NVIDIA T4)
  • Up to 2x FE1 storage expansion cards (supporting up to 20x M.2 drives each)
• Ports:
  • 2x 1GE LOM + OCP 2.0 Mezz (2x 1GE or 2x 10GE SFP+ or 2x 10GE BaseT)
  • Video, 2x USB 3.0, iDRAC Direct USB, serial, dedicated iDRAC network port
• Other IO Expansion:
  • 1x OCP2 Type 1 x8 mezzanine card slot
  • 1x LP PCIe x8
  • Up to 2x PCIe x16 FHFL or up to 4x PCIe x8 FHFL
• Security:
  • TPM 1.2/2.0, TCM 2.0 (optional)
  • Cryptographically signed firmware, Silicon Root of Trust
  • Secure Boot, System Erase
• Dimensions:
  • 483.95mm x 444mm x 86.92mm (DxWxH)
• Mounting:
  • Static rails
• Operating Temperature:
  • 5°C to 40°C
• Chassis:
  • Cold aisle service with all cables and connectors accessible from the cold aisle
  • Optional bezel with filtration and cable management
• Power:
  • N or N+1 2000W AC reverse flow power supply
  • N or N+1 1100W DC reverse flow power supply
• OS Support/Certified:
  • ESXi, RHEL, Windows, Ubuntu, and SUSE
• Telco Certification:
  • NEBS1
• Recommended Support and Services:
  • Dell ProSupport Plus or Dell ProSupport for premium hardware and software support
  • Consulting and deployment services available.
