Description

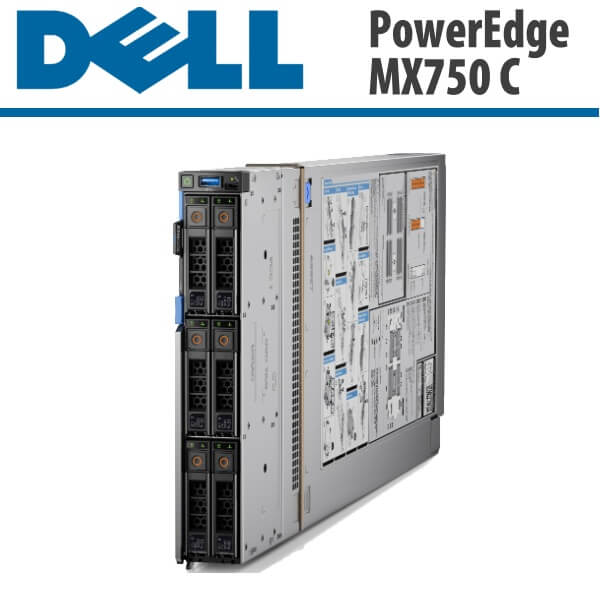

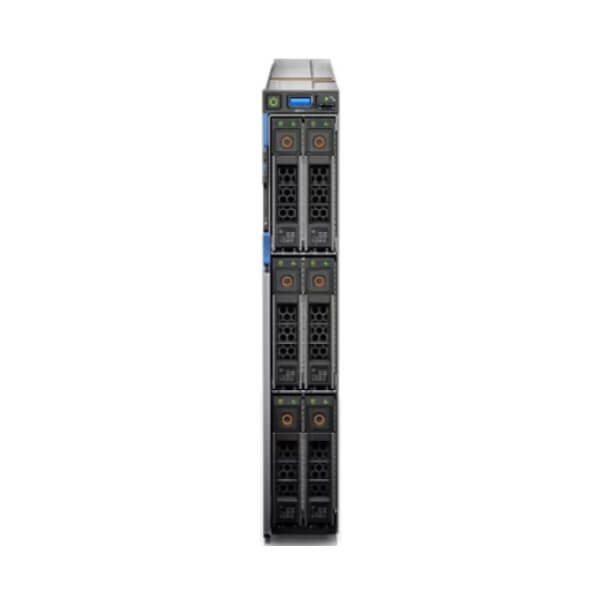

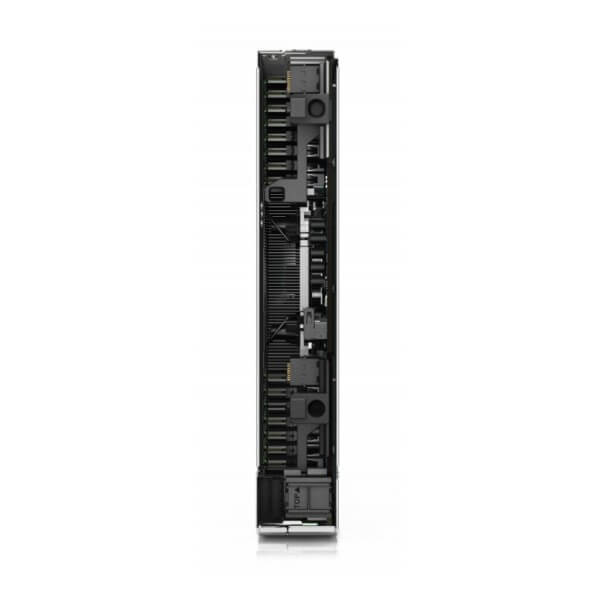

PowerEdge MX750c Blade Server Nigeria

The Dell EMC PowerEdge MX750c Nigeria is a cutting-edge modular compute sled designed to deliver exceptional scalability and flexibility within the PowerEdge MX kinetic infrastructure ecosystem. Engineered for high-performance computing, it is ideal for demanding IT environments that require superior scalability and performance across workloads such as virtualization, containerization, software-defined storage (SDS), software-defined networking (SDN), and database analytics. Powered by up to two 40-core 3rd Generation Intel® Xeon® Scalable processors, the MX750c Nigeria supports advanced and emerging workloads with transformative innovation. Key features include support for up to 32 DDR4 DIMM slots (max 4 TB memory), 16 slots for Intel® Optane™ DC persistent memory, and flexible storage options with up to six 2.5-inch SAS/SATA HDD/SSD or Express Flash NVMe PCIe SSD drives. Enhanced boot solutions, such as the optional M.2 Boot Optimized Storage Solution (BOSS) or Internal Dual microSD Module (IDSDM), further streamline operations. Each MX750c Nigeria seamlessly integrates into the PowerEdge MX7000 chassis, supporting up to eight servers per chassis for unparalleled compute density. Tailored for next-generation IT needs, it excels in virtualization, container-based applications, software-defined infrastructure, and data-driven workloads like database analytics. The Dell EMC OpenManage systems management portfolio, including OpenManage Enterprise – Modular, simplifies operations with features like telemetry streaming, intelligent automation, and streamlined change management. Security is a top priority, with a cyber-resilient architecture offering trusted booting, firmware protection, system lockdown, and data sanitization capabilities. Combining modular architecture, high-performance computing, and robust security, the PowerEdge MX750c Nigeria is a compelling choice for organizations seeking superior compute density, performance, and flexibility for modern workloads.

Features and Design

Your innovation engine

The Dell EMC PowerEdge MX750c Nigeria, powered by up to two 3rd Generation Intel^® Xeon^® Scalable processors, is a full-featured, high-performance modular server for exceptional scalability.

Modular compute sled ideal for emerging workloads

The Dell EMC PowerEdge MX750c Nigeria is designed for the PowerEdge MX7000 kinetic infrastructure ecosystem, and is the latest addition to the PowerEdge MX modular infrastructure portfolio. Up to eight of these dual socket compute sleds can fit within an existing PowerEdge MX7000 module chassis.

Maximizes density and performance in each sled by supporting up to two 3rd Generation Intel^® Xeon^® Scalable processors offering up to 40-cores each.
Supports eight memory channels per CPU with up to 32 DDR4 DIMMs at 3200 MT/s in each sled.
Address substantial throughput improvements with PCIe Gen 4 and up to 6 NVMe drives per sled.

Technical Specifications

Processor

- Up to two 3rd Generation Intel® Xeon® Scalable processors with up to 40 cores per processor.

Operating System

- Canonical® Ubuntu® Server LTS.
- Citrix® Hypervisor®.
- Microsoft® Windows Server® with Hyper-V.
- Red Hat® Enterprise Linux.
- SUSE® Linux Enterprise Server.
- VMware® ESXi®/vSAN.

Chipset

- Intel® C620 series chipset with optional Intel® QuickAssist Technology.

Memory

- DIMM Speed: Up to 3200 MT/s.
- Memory Type: RDIMM, LRDIMM, Intel® Persistent Memory 200 series (BPS).
- Memory Module Slots: 32 DDR4 DIMM slots.
- Maximum RAM:
  - RDIMM: Up to 2 TB.
  - LRDIMM: Up to 4 TB.
  - Intel® Persistent Memory 200 series (BPS): Up to 8 TB.

Storage

- Front Bays:
  - Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) with max 7.6 TB per drive.
  - Up to 6 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) with max 7.6 TB per drive.
- Storage Controllers:
  - Internal Controllers: PERC H755 MX, PERC H745P MX, HBA350i MX.
  - External Controllers: PERC H745P MX, HBA330 MMZ.
  - Software RAID: S150.
- Internal Boot:
  - Boot Optimized Storage Subsystem (BOSS-S1): HWRAID with 2 x M.2 SSDs (240 GB or 480 GB).
  - Internal Dual SD Module or USB.

Security

- TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ.
- Digitally Signed Firmware.
- Chassis Intrusion Alert.
- Secure Boot.
- Secure Erase.
- Silicon Root of Trust.
- System Lockdown (requires iDRAC Enterprise or Datacenter).

Management

- Embedded / At-the-Server:
  - iDRAC9, iDRAC Direct, iDRAC Service Module.
- Consoles:
  - OpenManage Enterprise.
  - OpenManage Power Manager plugin.
  - OpenManage SupportAssist plugin.
  - OpenManage Update Manager plugin.
  - OpenManage Enterprise Modular Edition.
- Mobility:
  - OpenManage Mobile.
- Tools:
  - RACADM CLI, iDRAC RESTful API with Redfish, IPMI, System Update Utility, Update Catalogs.
- OpenManage Integrations:
  - BMC® Truesight, Microsoft® System Center, RedHat® Ansible Modules, VMware® vCenter and vRealize Operations Manager.
- OpenManage Connections:
  - IBM Tivoli® Netcool/OMNIbus, IBM Tivoli® Network Manager IP Edition, Micro Focus® Operations Manager, Nagios® Core, Nagios® XI.

Ports

- Front Ports:
  - 1 x iDRAC Direct port (Micro-AB USB).
  - 1 x USB 3.0.
- Internal Ports:
  - 1 x USB 3.0.

Networking Options

- MX7000 chassis Fabric options:
  - Up to 2 pairs of redundant general-purpose switch or pass-through modular bays (Fabrics A and B).
  - Redundant pair of storage-specific switch bays (Fabric C).
- Supports up to 25 Gb CNA/NIC per port for Mezz A/B, 32 Gb Fibre Channel, 12 Gbps SAS for Mezz C.

Slots

- One x16 PCIe Gen4 slot for Mezz A – connected to processor 1.
- One x16 PCIe Gen4 slot for Mezz B – connected to processor 2.
- One x16 PCIe Gen4 slot for mini-Mezz card – connected to processor 2.
- One x16 PCIe Gen4 slot for PERC – connected to processor 1.
- Two x8 PCIe Gen4 connectors for NVMe drive – connected to processor 1.
- One x8 PCIe Gen4 connector for NVMe drive – connected to processor 2.
- Two x4 PCIe Gen3 slots for BOSS M.2 HW RAID card – connected to Platform Controller Hub (PCH).
