Description
Poly VVX EM50 Expansion Module Nigeria

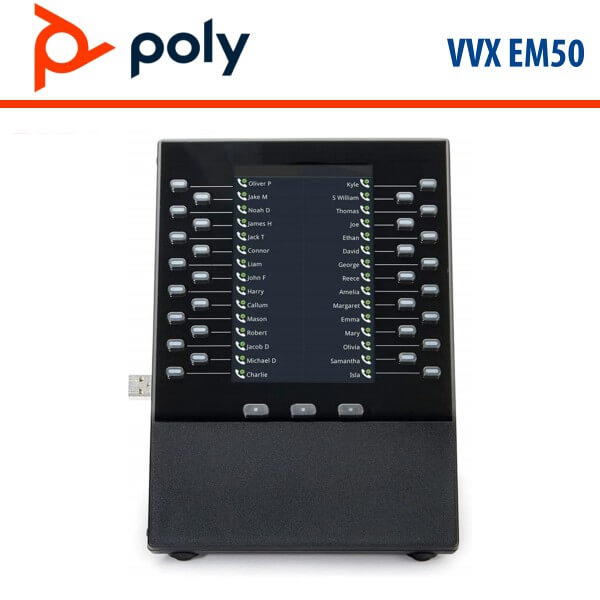

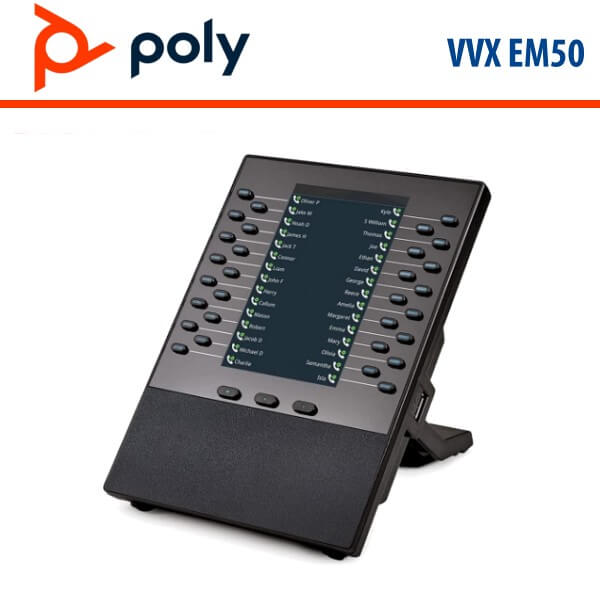

The Poly VVX EM50 Nigeria Expansion Module is easy to install and designed exclusively for the Poly VVX 450 business IP phone. It’s an optimal solution for telephone attendants, receptionists, administrative staff and other power users who manage multiple workflows or simultaneous calls on a daily basis.
The Poly VVX EM50 Nigeria Expansion Module extends the functionality of your Poly VVX 450 business IP phone with multifunctional line keys that can be set up as line registrations, call appearances, speed dials, direct stations and/or busy lamp field keys.
Key Features
- High Resolution 5.0” Screen
- Multifunctional Line Keys
- Ease of Installation
- Increase Productivity
- Leverage Previous IT Infrastructure Investment
- Plug-and-play Device
- Ultimate UC Communications Experience
- Intuitive User Interface
- The Poly VVX EM50 Nigeria is an easy plug-and-play device that requires no setup, as power and signaling are provided by the host VVX 450 business IP phone.
- High Performance Attendant Console
- When fully equipped, the Poly VVX EM50 Nigeria business IP phone functions as a high-performance attendant console that can support up to two VVX EM50s. Telephone attendants can reduce the number of lost customer calls, shorten transaction times and increase the accuracy of call routing by promptly accepting, accurately screening, efficiently dispatching and effortlessly monitoring calls.
- Wide Interoperability
- Like all Poly VoIP products, the Poly VVX EM50 Nigeria is standards-based and fully interoperable with Poly partners’ IP telephony server solutions.
Technical Specifications
Display
- 5.0in LCD WVGA (480×800 pixel) resolution
- Colour TFT graphical user interface
Feature Keys
- 30 multifunctional line keys configurable as line registration, call appearance, speed dial, DSS or BLF
- Dual-colour (red or green) illuminated LEDs for line status information
- 3-page keys for additional line appearances
Compatible VVX Phone Models
- VVX 450
- Communication with host phone and/or other modules via USB port
Expandability
- Up to two Expansion Modules can be attached to the VVX 450
Feature Support
- Additional line registrations
- Shared call appearance, bridged line appearance (key system emulation)
- Call transfer
- Busy lamp field
- Speed dial
- Fully programmable line appearances
- Multilingual user interface (driven from host phone)
- Skype for Business presence
Power
- Provided by Poly VVX host phone
- Host phone powering options: IEEE 802.3(af/at) PoE or using an approved compatible external AC adapter (5VDC/3A)
- Powering starts automatically upon USB port connection
- No additional power source is required
Approvals
- FCC Part 15 (CFR 47)
- ICES-003
- CE Mark
- VCCI
- RCM
- Russia CU
- ROHS-compliant
Safety
- UL 60950-1/62368-1
- CAN/CSA-C22.2 No. 60950-1/62368-1
- EN 60950-1/62368-1
- IEC 60950-1/62368-1
- AS/NZS 60950-1
Operating Conditions
- Temperature: 0 to 40 degrees C (+32 to 104 degrees F)
- Relative humidity: 5% to 95%, noncondensing
Storage Temperature
- -40 to +70 degrees C (-40 to +160 degrees F)
VVX EM50 comes with:
- VVX EM50 console

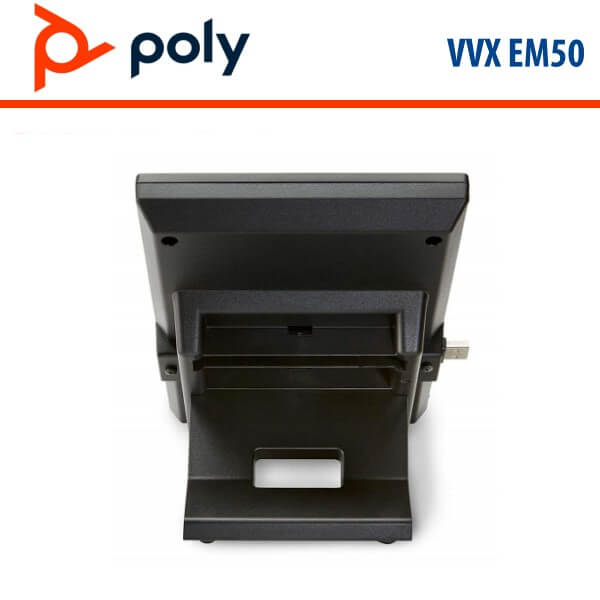

- VVX EM50 desk stand
- Interconnection bracket and screws
- Setup sheet
Dimensions
- 12.5 x 12.5 x 16 x 6 cm (5 x 5 x 6.5 x 2.5 in) (WxHxDxT)
Weight
- Shipping: 0.5kg (1lb)
Unit Box Dimensions/Weight
- 11 x 6 x 3.5 in/0.7 kg
Unit Box
- 213 x 161 x 72 mm (8.4 x 6.3 x 2.8 in)
Overpack Box
- 648 x 369 x 223 mm (25.5 x. 14.5 x 8.8 in)
Country of Origin
- Laos
Warranty
- One (1) year
