Description

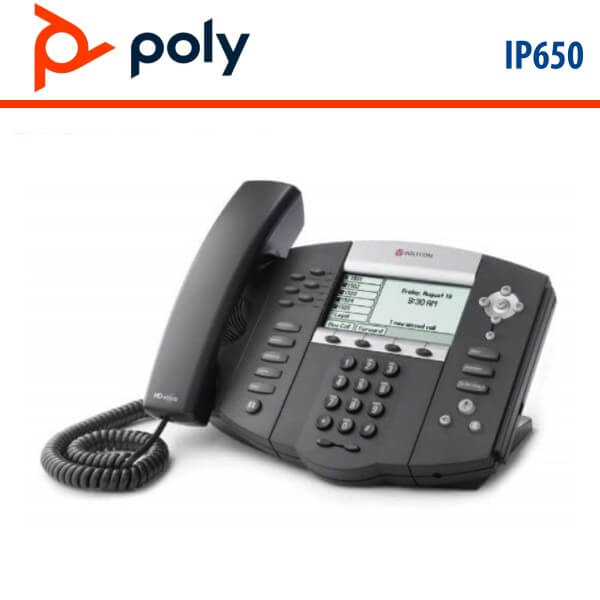

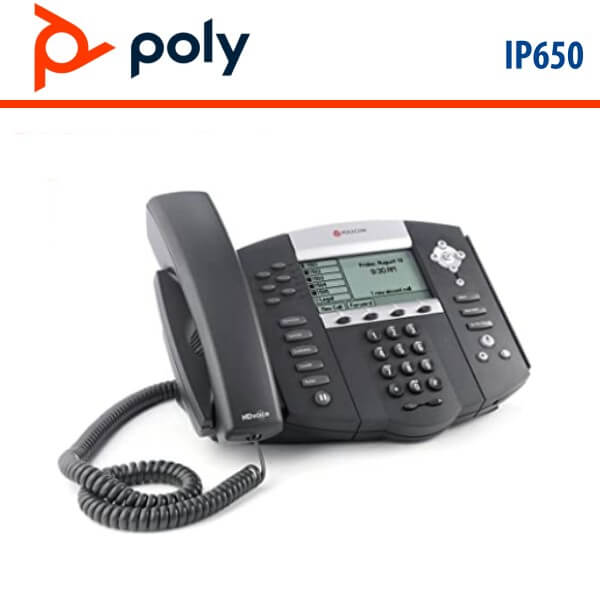

Poly IP650 VOIP IP Phone Nigeria

The poly ip650 nigeria is the first IP phone to use poly’s revolutionary HD Voice technology that delivers voice communications of life-like richness and clarity. The poly ip650 nigeria accommodates 6 lines in a standalone mode and up to 12 lines when equipped with SoundPoint IP Expansion Modules, as an attendant console. The phone supports shared call / bridged line appearances as well as busy lamp field BLF functionality that enables phone attendants to monitor and manage calls more efficiently. When equipped with up to three SoundPoint IP Expansion Modules, the poly ip650 nigeria delivers the advanced call handling capabilities and enhanced user interface of a high-performance attendant console.

The poly ip650 nigeria delivers all of its capabilities through an intuitive user interface, featuring a high-quality backlit 320×160 graphical grayscale LCD display, an easy-to-navigate menu, and a combination of dedicated keys and context-sensitive soft keys for one-button access to essential telephony features.

The phone’s SIP 2.0 software fully supports Microsoft Live Communications Server 2005 for telephony and presence, and integrates with Microsoft Office Communicator instant messenger client. The poly IP 650 features a USB port for future applications.

Features

• Six lines standalone / 12 lines with the Expansion Module
• poly HD Voice technology, including support of G.722 wideband codec, Acoustic Clarity Technology 2, and systems design optimized for HD Voice
• Advanced functionality, including shared lines, busy lamp field, presence, and XHTML applications
• Support of up to three SoundPoint IP Expansion Modules
• Backlit 320 x 160-pixel grayscale graphical LCD
• Integrated IEEE 802.3af Power over Ethernet PoE support
• USB port for future applications

Revolutionary Voice Quality

The IP 650 VoIP Phone from poly SoundPoint is the first IP phone to use poly’s revolutionary HD Voice technology to bring life-like richness and clarity to voice communications. poly HD Voice incorporates wideband audio for over twice the voice clarity, poly’s patented Acoustic Clarity Technology, as well as best-in-class system design to deliver unprecedented voice quality.

Advanced Features and Applications

The phone supports Microsoft Live Communications Server 2005 for telephony and presence, and interoperates with Microsoft Office Communicator. The poly poly ip650 nigeria SoundPoint IP VoIP Phone also features a USB port for future applications.

Enhanced Call Handling Capabilities

The poly SoundPoint IP 650 VoIP Phone accommodates 6 lines in standalone mode, and 12 lines as an attendant console, when equipped with SoundPoint IP Expansion Modules. The phone supports shared call/bridged line appearance, an essential feature for effective phone interaction between executives and their assistants.

Expandability

When equipped with up to three Expansion Modules, the poly SoundPoint IP 650 VoIP Phone delivers the advanced call handling capabilities and enhanced user interface of a high-performance attendant console. Designed to improve productivity of telephone attendants, the SoundPoint IP attendant console allows effective and efficient management and monitoring of up to 24 simultaneous calls on up to 12 lines.

Intuitive User Interface

The poly ip650 nigeria VoIP Phone delivers all of its capabilities through an intuitive user interface, featuring a backlit 320 x 160 graphical grayscale LCD display, easy-to-navigate menu, and a combination of 26 dedicated hard keys and 4 context-sensitive soft keys for easy access to essential telephony features.

Efficient Installation and Provisioning

Designed to make installation, configuration, and upgrade as simple and efficient as possible, the poly SoundPoint IP 650 VoIP Phone boasts a two-port Ethernet switch and integrated Power over Ethernet circuitry.

Specifications

Lines (Direct Numbers)

• Up to 6 lines (standalone mode)
• Up to 34 lines with Expansion Module(s)

SoundPoint IP Expansion Module Support

• Supports up to three Expansion Modules

Display

• 320 x 160 backlit grayscale graphical LCD
• White LED backlight with custom intensity control

Feature Keys

• 4 context-sensitive “soft” keys
• 26 dedicated “hard” keys
• 6 line keys with bi-color (red/green) LED
• 8 feature keys
• 6 display/menu navigation keys
• 2 volume control keys
• Illuminated mute key
• Illuminated headset key
• Illuminated hands-free speakerphone key
• Dedicated hold key

Headset and Hearing Aid Compatibility

• Dedicated RJ-9 headset port : Amplified headsets are recommended
• Compliant with ADA Section 508 Recommendations : Subpart B 1194.23 (all)
• Hearing Aid Compatible (HAC) handset for magnetic coupling to approved HAC hearing aids
• Compatible with commercially-available TTY adapter equipment

Audio Features

• poly HD Voice technology delivers life-like voice quality for each audio path – the handset, the hands-free speakerphone, and the headset
• Full-duplex hands-free speakerphone : Type 1 compliant with IEEE 1329 full duplex standards
• Frequency response – 150Hz – 7kHz for handset, headset and hands-free speakerphone modes
• Codecs : G.722 (wideband), G.711 µ/A, and G.729A (Annex B)
• Individual volume settings with visual feedback for each audio path
• Voice activity detection
• Comfort noise fill
• DTMF tone generation/DTMF event RTP payload
• Low-delay audio packet transmission
• Adaptive jitter buffers
• Packet loss concealment
• Acoustic echo cancellation
• Background noise suppression

Call Handling Features

• Shared call / bridged line appearance
• Flexible line appearance (one or more line keys can be assigned for each line extension)
• Busy Lamp Field (BLF)
• Distinctive incoming call treatment / call waiting
• Call timer
• Call transfer, hold, divert (forward), pickup
• Called, calling, connected party information
• Local three-way conferencing
• One-touch speed dial, redial
• Call waiting
• Remote missed call notification
• Intercom
• Automatic off-hook call placement
• Do not disturb function

Other Features

• Integration with Microsoft LCS 2005 for telephone and presence : Compatibility with Microsoft Office Communicator and Windows® Messenger 5.1
• Clients Universal Serial Bus (USB)
  • Full Host Controller
  • Compliant with OHCI 1.1 specification
  • Support for Full-speed and Low-speed peripherals
  • Type-A receptacle interface
• Local feature-rich GUI
• Time and date display
• User-configurable contact directory and call history (missed, placed, and received)
• Customizable call progress tones
• Wave file support for call progress tones
• Unicode UTF-8 character support. Multilingual user interface encompassing Danish, Dutch, English (Canada/US/UK), French, German, Italian, Norwegian, Russian, Spanish, Swedish

Protocol Support

• IETF SIP (RFC 3261 and companion RFCs)

Network and Provisioning

• Two-port 10/100 Mbps Ethernet switch
• Manual or dynamic host configuration protocol (DHCP) network setup
• Time and date synchronization using SNTP
• FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments.
• Provisioning server redundancy supported
• Web portal for individual unit configuration
• QoS Support – IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DSCP
• Network Address Translation (NAT) support – static
• RTCP support (RFC 1889)
• Event logging
• Local digit map
• Hardware diagnostics
• Status and sta
• tistics

Security

• Transport Layer Security (TLS)
• Encrypted configuration files
• Digest authentication
• Password login
• Support for URL syntax with password for boot server address
• HTTPS secure provisioning
• Support for signed software executables

Power

• Built-in, auto-sensing IEEE 802.3af Power over Ethernet
• External Source 48V DC, optional

Approvals

• FCC Part 15 (CFR 47) Class B
• ICES-003 Class B
• EN55022 Class B
• CISPR22 Class B
• AS/NZS CISPR 22 Class B
• VCCI Class B
• EN55024
• EN61000-3-2; EN61000-3-3
• ROHS compliant

Safety

• UL 60950
• CE Mark
• CAN/CSA-C22.2 No. 60950
• EN 60950-1
• IEC 60950-1
• AS/NZS 60950

Operating Conditions

• Temperature : 0 to 40°C (+32 to 104°F)
• Relative Humidity : 5% to 95%, non-condensing

Storage Temperature

• -40 to +70°C (-40 to +160°F)

poly SoundPoint IP 650 VoIP Phone Comes With :

• poly SoundPoint IP 650 VoIP Phone console
• Handset with handset cord
• Base stand
• Network (LAN) cable
• Quick Start Guide
• Product registration card

Size

• 5 in x 6 in x 7.5 in x 2.5 in
• (26.5 cm x 15 cm x 19 cm x 6.5 cm)

Weight

• 75lb (1.26kg)
