Description

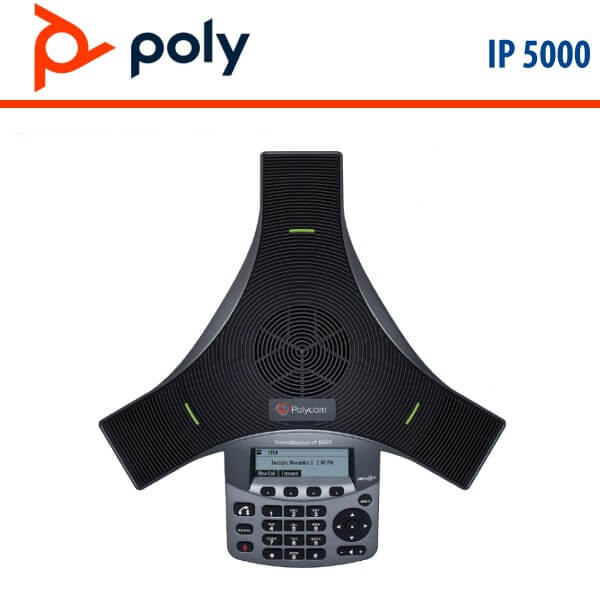

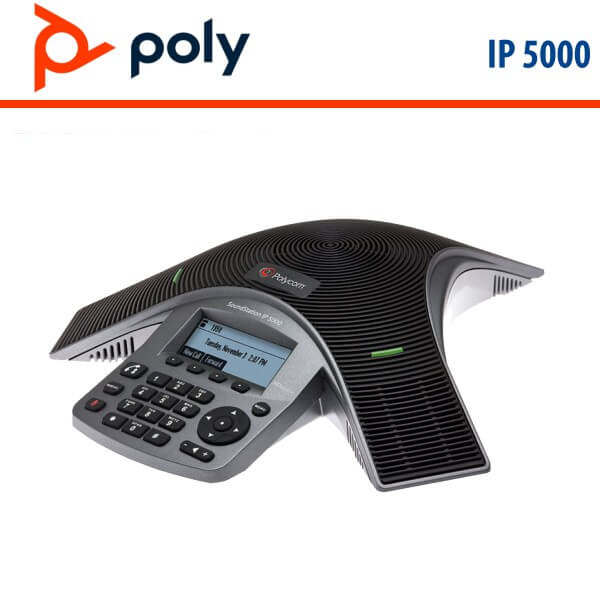

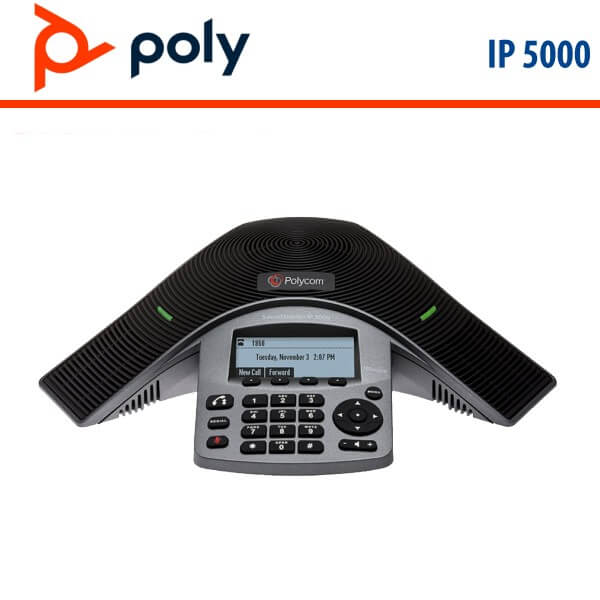

Poly SoundStation IP5000 PoE Conference Phone Nigeria

The poly ip5000 nigeria conference phone delivers remarkably clear conference calls for small conference rooms and executive offices. The poly Soundstation IP 5000 features poly HD Voice technology, SIP interoperability, and a modern design that is ideal for smaller rooms at an affordable price.

The poly Soundstation IP 5000 conference phone is a one-line SIP phone that features poly’s HD Voice technology. poly’s HD Voice technology uses the G.722 codec and enhanced hardware features making your conference calls sound amazingly clear and life-like. HD Voice along with poly Acoustic Clarity technology ensures your IP 5000 will deliver the best phone experience with no compromises.

The poly ip5000 nigeria has a 7foot microphone pickup range and small footprint making it ideal for executive offices and small conference rooms with up to 6 participants. The SoundStation IP 5000 offers full-duplex technology that eliminates drop-out conversations and has the latest in echo cancellation advancements. The IP 5000 has 3 sensitive microphones with 360 degrees of coverage ensuring all participants in the room will be heard from up to 7 feet away.

The poly IP 5000 offers robust SIP interoperability allowing it to work with a broad array of IP PBX and hosted platforms. The poly IP 5000 works seamlessly with Asterisk based PBX’s as well. poly ip5000 nigeria has integrated Power over Ethernet (PoE), which simplifies setup, and a high-resolution white backlit LCD for ease of use. Robust provisioning, management, and security features make poly conference phones the only choice for meeting rooms in a SIP environment.

Features

• poly HD Voice for high-fidelity calls at up to 7 kHz – conference calls that sound as natural as being there
• poly’s patented Acoustic Clarity Technology – delivering the best conference phone experience with no compromises
• 7-foot microphone pickup
• Integrated PoE with optional AC power adapter
• High-resolution 248 x 68-pixel white backlit LCD display with custom intensity control
• Shared call/Bridged Line appearance and Busy Lamp Field
• Corporate Directory access, user-configurable contact directory and call history
• Multi-language support
• Robust interoperability – compatible with a broad array of SIP call platforms to maximize voice quality and feature availability while simplifying management and administration

Specifications

Power

• IEEE 802.3af Power over Ethernet (built in)
• Optional external universal AC power supply kit : 100-240V, 0.4A, 48V/19W

Display

• Size (pixels) : 248 x 68 (W x H)
• White LED backlight with custom intensity control

Keypad

• Standard 12-key keypad
• Context-dependent soft keys : 4
• On-hook/Off-hook, redial, mute, volume up/down
• 5-way navigation Menu

Audio Features

• Loudspeaker
• Frequency : 250 – 7,000 HZ
• Volume : Adjustable to peak volume 84 dB at 1/2 meter distance
• Voice activity detection
• Comfort noise fill
• DTMF tone generation / DTMF event RTP payload
• Low-delay audio packet transmission
• Adaptive jitter buffers
• Packet loss concealment
• Acoustic echo cancellation
• Background noise suppression
• Supported Codecs
• 711 (A-law and µ-law)
• 729a (Annex A, B)
• 722
• iLBC

Call Handling Features

• Shared call / bridged line appearance
• Busy Lamp Field (BLF)
• Distinctive incoming call treatment / call waiting
• Call timer
• Call transfer, hold, divert (forward), pickup
• Called, calling, connected party information
• Advanced Local three-way conferencing
• (conference, join, split, hold, resume)
• One-touch speed dial, redial
• Call waiting
• Remote missed call notification
• Automatic off-hook call placement
• Do not disturb function

Other Features

• Local feature-rich GUI
• Time and date display
• Corporate Directory Access (search, dial,
• save to local directory)
• Convenient volume adjustment keys
• User-configurable contact directory and call
• history (missed, placed, and received)
• Customizable call progress tones
• Wav file support for call progress tones
• Unicode UTF-8 character support. Multilingual user interface encompassing Simplified Chinese, Danish, Dutch, English (Canada / US / UK), French, German, Italian,  Japanese, Korean,
• Norwegian, Polish, Portuguese, Russian,
• Slovenian, Spanish, Swedish

Network and Provisioning

• Ethernet 10/100 Base-T
• IP Address Configuration : DHCP and Static IP
• Time synchronization with SNTP server
• FTP / TFTP / HTTP / HTTPS server-based central provisioning for mass deployments.
• Provisioning server redundancy supported.
• Web portal for individual unit configuration
• QoS Support — IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and DSCP
• Network Address Translation (NAT)
• support –  static
• RTCP support (RFC 1889)
• Event logging
• Local dial plan
• Hardware diagnostics
• Status and statistics
• User selectable ringer tones
• Field upgradeable

Security

• Transport Layer Security (TLS)
• Encrypted configuration files
• Digest authentication
• Password login
• Support for URL syntax with password for boot server
• HTTPS secure provisioning
• Support for signed software executables

Safety

• CE Mark
• EN60950-1
• IEC60950-1
• UL60950-1
• CAN/CSA C22.2 No.60950-1-03
• AS/NZS60950-1
• RoHS Compliant

EMC

• FCC Part 15 (CFR 47) Class B
• ICES-003 Class B
• EN55022 Class B
• CISPR22 Class B
• AS/NZS CISPR22 Class B
• VCCI Class B
• EN22024

Protocol Support

• IETF SIP (RFC 3261 and companion RFCs)

Product Ships With

• Conference Phone Console
• 25 foot Ethernet cable
• Quick Start Guide

Optional AC Power Kit Ships With

• Universal Power Supply
• 7foot region-specific power cord
• Power Insertion Cable

Environmental Conditions

• Operating temperature : 41 – 104 degrees F
• (5 – 40 degrees C)
• Relative humidity : 20% – 85% (noncondensing)
• Storage temperature : -22 – 131 degrees F
• (-30 – 55 degrees C)
