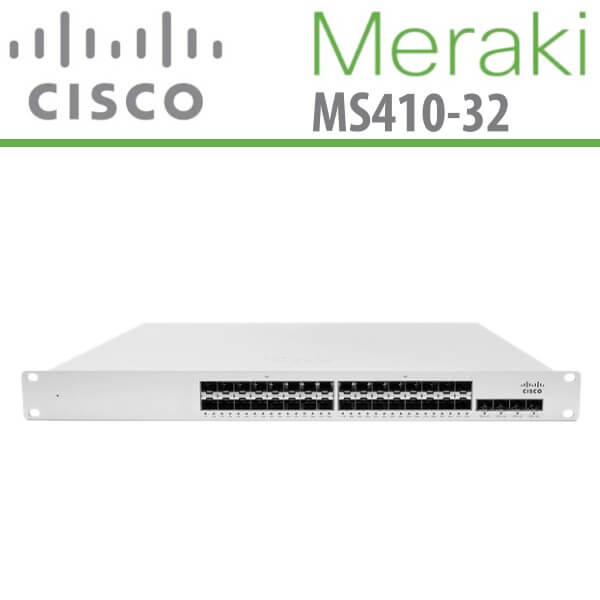

Meraki MS410-32 Nigeria

Rating

Meraki MS410-32 Nigeria

The Cisco Meraki MS410-32 Nigeria features cloud-managed access switch bringing the benefits of cloud computing, including management simplicity, reduced complexity, and lower cost, to branch and campus networks.

Category:

Description

Meraki MS410-32 Network Switch Nigeria

The Cisco Meraki MS410-32 Nigeria features cloud-managed access switch bringing the benefits of cloud computing, including management simplicity, reduced complexity, and lower cost, to branch and campus networks. The Cisco Meraki MS410-32 Nigeria provides a powerful cloud-managed switching to the aggregation layer adopting the benefits of the cloud simplifying management, reducing complexity, network wide visibility and control, and lower cost for campus deployments.

Cisco Meraki MS410-32 Nigeria features 10 Gigabit Ethernet aggregation switches built from the ground for easy management without compromising any of the power and flexibility traditionally found in enterprise-class switches. Cisco Meraki MS410-32 is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Cisco Meraki switch, just plug without need for complicated configuration of files or pre-staging.

Features

Simplified Management and Operations

Featuring Cisco Meraki’s cloud managed architecture Meraki MS410-32 Nigeria makes management simpler and reconfigure switch ports with security, QoS, and other parameters. The Cisco Meraki Cloud Controller provides unified policies, event logs, and monitoring, which make it easy to manage and grow large network deployments.

Converged Voice, Video and Data Environments

The Cisco Meraki switch family is designed to unify data, voice, and video onto a single IP backbone. All Cisco Meraki switches support rich quality-of-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization.

Centrally Managed from the Cloud

The Cisco Meraki Cloud Networking architecture enables plug and play branch deployments and provides centralized visibility and control across any number of distributed locations. With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.

Virtual Stacking

Virtual stacking is built-in to all Cisco Meraki MS410-32 Nigeria Switch, with no need for extension modules, proprietary cables, or extra configuration. Simply log in to the Cisco Meraki dashboard and manage the entire access switch infrastructure without concern for their interconnectivity.

Layer 7 Application and Client Visibility

Cisco Meraki MS410-32 Nigeria Switch featuring integrated Layer 7 application and client fingerprinting and analysis. Hundreds of applications are automatically identified and reported, from business apps to BitTorrent and YouTube, so administrators can see where resources are spent.

Layer 3 Scalability & Failover

Quickly scale growing networks while ensuring redundancy for critical switch infrastructure with Meraki layer 3 switches. Intuitive, dynamic routing configurable in the dashboard simplifies management by removing complex command line interfaces. Traffic flow is optimized at line rate without sacrificing deep visibility into client devices and application use. Deploy ACLs directly on MS switches to secure boundaries between VLANs, hosts, services, and the Internet. In addition to dynamic routing, layer 3 Meraki MS switches support VRRP for warm spare failover, ensuring immediate recovery of gateway responsibilities—avoiding downtime and client disruption.

QoS for Voice and Video

Deploy latency-sensitive applications such as voice and video by guaranteeing network performance. Voice and QoS features such as per-VLAN and protocol-based prioritization, as well as flexible QoS assignments, give intuitive, granular control. Intelligent use of LLDP on the network makes deploying devices such as VoIP phones painless. Simply select a VLAN for voice in the dashboard, and selected ports will accept tagged traffic on the voice VLAN. The port also uses LLDP advertisements to recommend devices use that VLAN for voice traffic.

Remote Live Tools and Alerts

From infrastructure uptime and performance testing to device troubleshooting, live tools simplify day-to-day network administration and dramatically shorten time to resolution. Built-in Ethernet cable testing no longer requires an excursion to one or more switch closets just to verify cable integrity. Simply select a switch port, run a cable test, and see results right in the dashboard, even if there is no device connected on the other end. Cisco Meraki MS410-32 Nigeria automatically monitored 24×7 via the cloud. Email and text message alerts are configurable to immediately notify administrators of configuration changes, switch downtime, and even per-port disconnection events.

Enterprise Security

Meraki MS410-32 Nigeria integrates seamlessly with enterprise-grade security systems using 802.1X. Define access policies, segregate guest devices, and quarantine entire environments right from the dashboard. Seamless firmware updates, two factor authentication, and other built-in protections make secure, PCI and HIPAA-compliant networks easy and cost effective.

Specifications

Interfaces
  • 16 × 1 GbE SFP
  • 2 × 10GbE SFP+
  • 1 × 10/100/1000 RJ45 management port
  • 32 × 1 GbE SFP
  • 4 × 10 GbE SFP+
  • 1 × 10/100/1000 RJ45 management port
Ethernet Switching Capabilities
  • 802.1p Quality of Service prioritization
  • 802.1Q VLAN tagging for up to 4095 VLANs
  • 802.1D Spanning Tree Protocol (RSTP, STP)
  • 802.1ab Link Layer Discovery Protocol (LLDP)
  • 802.3ad link aggregation with up to 8 ports per aggregate
  • Broadcast storm control
  • IGMP snooping for multicast filtering
  • 96K Forwarding Table Capacity
Layer 3 capabilities
  • Dynamic routing (OSPFv2)
  • Static routing
  • DHCP Relay
  • DHCP Server
  • Warm spare for L3 gateway redundancy
  • DHCP Failover
Management
  • Managed via the cloud using the Meraki dashboard
  • Integrated with Meraki wireless, security appliance, and device management
  • No-touch remote deployment (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • DHCP and hostname fingerprinting
  • SNMPD allows integration with 3rd-party network management solutions
  • Seamless over-the-web firmware upgrades
Remote Diagnostics
  • Email and SMS (text) alerts
  • Live remote packet capture
  • Aggregated event and configuration change logs with instant search
Flexible Stacking
  • Virtually Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
  • Physical stacking of up to 8 switches with 160Gbps stack bandwidth (MS410/425)
Power
  • Power input: 100 – 240 VAC, 47-63 Hz
  • Power consumption at idle: 45W (MS420), 50W (MS410), 98W (MS425)
  • Power consumption full load: 175W (MS420), 85W (MS410), 136W (MS425)
Environment Operating temp: 0C to 40C
Mounting
  • Rack-mountable with included rack mount hardware
  • Front-to-back airflow
Performance
  • Non-blocking fabric
  • 72/144 Gbps switching capacity on MS410-16/32
  • 1.2 microsecond latency
Physical dimensions
  • Weight: 18.1lb (8.18kg) MS420-48, 12.6lb (5.7kg) MS410-32, 14lb (6.35kg) MS425-32
  • Size (410): 19” (w) x 20.3” (d) x 1.8” (h) (48.5x 51.6x 4.5cm)
