Description

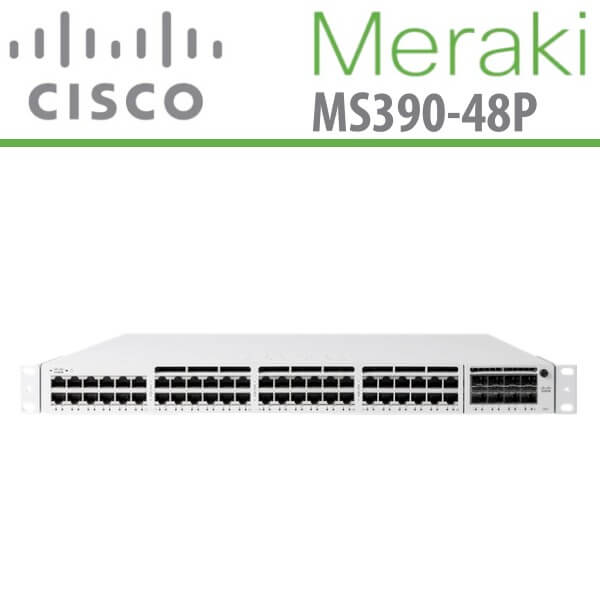

Meraki MS390-48P Network Switch Nigeria

The Meraki MS390-48P Nigeria combines the simplicity of cloud-managed IT with the power of innovative Cisco switching technology. It is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications. The Meraki MS390-48P addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To meet high-bandwidth applications demands and the deployment of high-speed 802.11ax/wifi-6 access points, the MS390 provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. The Meraki Network Switch Nigeria delivers resiliency with fast stack convergence and Stack Power. The MS390 provides Adaptive Policy using an over the-wire tag which segments traffic into security groups to deliver scalable security.

Meraki MS390-48P Nigeria provides the essentials for building high-performance networks that can help maintain seamless network service. Multigigabit Ethernet squeezes more speed out of existing cabling. Switches can be physically stacked via dedicated lightning-fast cabling and cross-stack link aggregation used to create a resilient connection to the network core using all available bandwidth. Further strengthen the network with IP gateway redundancy or powerful dynamic routing using OSPF.

Features

Powerful Simple Switch

Meraki access and aggregation layer switches power networks of every size. They combine secure, scalable, robust performance with an intuitive management experience that requires no additional training.

Easy Deployment & Operation

Meraki MS390-48P Nigeria offer zero-touch provisioning and can be configured entirely from a web browser. Pioneering network topology and remote packet capture features simplify troubleshooting, especially on remote locations.

Cisco technology

Meraki MS390-48P Nigeria use purpose built Cisco technology to deliver intent-based networking at scale.

Improved Physical Stacking

Improved physical stacking reduces latency to less than 1 second for faster stack convergence in case of a switch failure which is critical for enterprise deployments.

Adaptive Policy

Software feature exclusively on the MS390 to provide an additional layer of security based on the intent of the user, device, and application.

SecureConnect

SecureConnect enables to detect and verify that the MR connected to a port belongs to the same organization and then automatically configure it.

Multigigabit Ethernet

Meraki MS390-48P Nigeria provides the higher performance demanded by the latest access points over existing cabling.

Layer 7 Visibility

Meraki MS390-48P Nigeria make it easy to understand how valuable network resources are being used.

Layer 3 Scalability

Build large, resilient networks using dynamic routing protocols and warm spare technology.

Voice & Video QoS

Give latency sensitive applications the priority and bandwidth they deserve with configurable QoS.

Network Topology

View the network in real-time, showing devices and their connections and even monitor network-wide health.

Remote Live Tools

Powerful tools for identifying and correcting issues, even from thousands of miles away.

Enterprise Security

Meraki MS390-48P Nigeria protects the wired network from both external and internal threats.

Specifications

Interfaces	48 × 100/1/2.5/5/10G Ethernet (RJ45) 4/8 × 10G SFP+ uplink modules 2 × 40G QSFP uplink modules Auto-negotiation and crossover detection 2 × dedicated stacking ports
Management	Managed via the Web with the Meraki cloud management platform Integrated with Meraki wireless and complete portfolio of IT products and solutions Zero-touch remote provisioning (no staging needed) Detailed historical per-port and per-client usage statistics Operating system, device, and hostname fingerprinting SNMP and SYSLOG support for integration with other network management solutions Automatic firmware upgrades with scheduling control
Remote Diagnostics	Email, SMS, and Mobile push notification alerts Ping, traceroute, cable testing, and link failure detection with alerting
Remote Packet Capture	Dynamic and interactive network discovery and topology Combined event and configuration change logs with instant search
Scalable Stacking	Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet Switching Capabilities	802.1Q VLAN and trunking support for up to 4,094 VLANs (1000 active VLANs with STP enabled) Single instance of 802.1s Multiple Spanning Tree Protocol (interoperable with RSTP, STP, PVST, RPVST) STP Enhancements : BPDU guard, Root guard, Loop guard, UDLD Broadcast storm control 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches Port mirroring IGMP snooping for multicast filtering MAC forwarding entries : 32K
Security	Integrated multi-factor authentication for cloud management platform Role-based access control (RBAC) with granular device and configuration control Corporate-wide password policy enforcement IEEE 802.1X RADIUS and MAB, hybrid authentication, and RADIUS server testing Single-Host/Multi-Domain/Multi-Host/Multi Authentication Port security : Sticky MAC, MAC whitelisting DHCP snooping, detection and blocking, Dynamic ARP Inspection IPv4 and IPv6 ACLs
Adaptive Policy	Software feature exclusively on the MS390 to provide an additional layer of security based on the intent of the user, device, and application.
SecureConnect	SecureConnect enables MS210 and above to detect and verify that the MR connected to a port belongs to the same organization and then automatically configure it.
Performance	Switching capacity : 256 Mpps Forwarding rate : 190 Mpps Jumbo frame support (9600 byte Ethernet frame) Flow control Stacking bandwidth of 480 Gbps
Layer 3 Capabilities	Static routing, OSPFv2 (with support for up to 16 ECMP Routes) Multicast routing [PIM-ASM] Warm spare (VRRP) DHCP Relay, DHCP Server
Power	Power input : 100 – 240 VAC, 50-60Hz Power consumption : 92.6 / 555 W (idle/max)
Mounting	1U Rack-mountable with included rack mount hardware 2-post front mounting options available
Environment	Operating temperature : 0°C to 45°C Humidity : 5 to 95% RH Variable speed fans
Regulatory	FCC Part 15 (CFR 47) Class A ICES-003 Class A CISPR22 Class A CNS13438 EN 300 386 V1.6.1 EN 55022 Class A EN 61000-3-2 EN61000-3-3 KN 32 TCVN 7189 Class A EN 55032 CISPR 32 Class A V-2/2015.04 V-3/2015.04 VCCI-CISPR 32 Class A CISPR24 EN 300 386 V1.6.1 EN 55024 KN35 TCVN 7317
Safety Compliance	CAN/CSA-C22.2 No. 60950-1, UL 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Warranty	Full lifetime hardware warranty with next-day advanced replacement included
MTBF (at 25°C)	277,770
Physical Specifications (H × W × D)	1.73” × 17.5” × 17.7” (4.4 × 44.5 × 44.9cm) Weight : 16.73 lb (7.59 kg)
