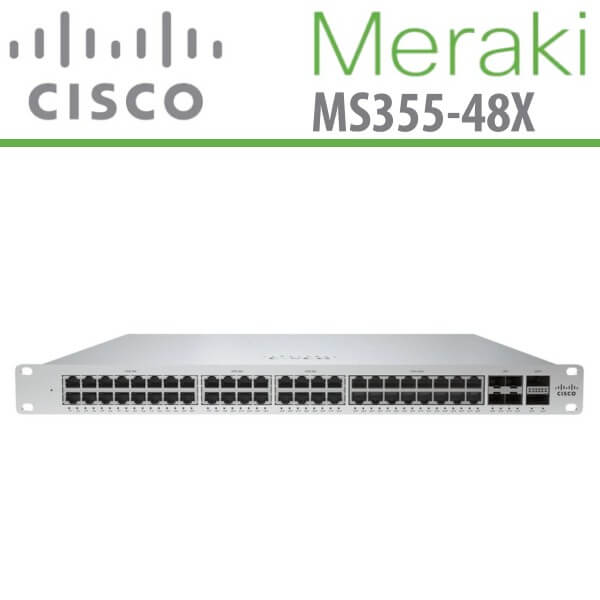

Meraki MS355-48X Nigeria

The Meraki MS355-48X Nigeria is Cloud-Managed Stackable Multi-Gigabit Switch, providing full 10G multi-gigabit (mGig) access switching for demanding enterprise and campus environments.

Category:

Description

Meraki MS355-48X Network Switch Nigeria

The Meraki MS355-48X Nigeria is Cloud-Managed Stackable Multi-Gigabit Switch, providing full 10G multi-gigabit (mGig) access switching for demanding enterprise and campus environments. The Meraki MS355-48X features a high mGig port density for 802.11ax wireless access points, servers, and workstations. This Meraki Network Switch Nigeria supports 40G or 10G uplinks, physical stacking, up to 60W of port power with UPoE, and field replaceable power supplies/fans. Meraki Network switches are managed through an elegant, intuitive cloud-based interface, rather than cryptic command line. To bring up a Meraki MS355-48X Nigeria, simply plug it in without need of CLI for switch configuration or port management. The Meraki’s centralized management platform gives administrators granular visibility into their network. It is equipped with dashboard that helps you keep track of every configuration change in your network.

Features

Cloud Management

Meraki MS355-48X Nigeria has many cloud management benefits that make it easier to build networks large and small:

  • Automatic email alerts from power loss, downtime, excessive Layer 1 errors, or configuration changes
  • Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues
  • Role-based administration
  • Firmware upgrades and enhancements from the Meraki cloud
  • Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
  • Incredible network transparency with application, operating system, client, and hostname visibility
  • Zero-touch provisioning for rapid deployment across sites

Powerful Access Switching

  • High-bandwidth physical stacking with support for up to 8 stack members for built-in redundancy and performance
  • Link Aggregation Control Protocol (LACP) for high-capacity trunking, with Multi-chassis (MLAG) support on stacked switches
  • Static and dynamic routing support with DHCP relay and server capabilities
  • Quality-of-Service (QoS) to prioritize mission-critical traffic such as voice and video
  • Voice VLAN support for simplified VoIP deployments
  • CDP, LLDP advertisement and snooping, with detailed neighbor visibility and discovery
  • Port Mirroring to monitor network traffic
  • IGMP Snooping to optimize network performance for multicast applications

Network Security

  • IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
  • ACL support (IPv4 & IPv6) and MAC whitelisting
  • Single-Host/Multi-Domain/Multi-Host/Multi Authentication
  • Change of Authorization (CoA) and RADIUS accounting support
  • DHCP snooping to protect against rogue DHCP servers on the network
  • Dynamic ARP Inspection to prevent man-in-the-middle attacks
  • Rapid Spanning Tree, BPDU guard, root guard, loop guard, and other safeguards to help prevent misconfigurations and reduce convergence time
  • Per port VLAN configuration
  • Multiple administrative roles with sophisticated security policy management

Network Troubleshooting & Automation

  • Virtual Stacking helps IT admins make configuration changes to hundreds of switch ports in seconds with our intuitive dashboard interface
  • Configuration templates for rapid, zero-touch provisioning and auditing of all sites
  • Network Topology for automatic and interactive network mapping
  • Remote cable testing, packet capture, and client discovery
  • Automatic and scheduled firmware upgrades for the complete network

Converged Voice, Video and Data Environments

The Meraki MS355-48X Nigeria is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich quality of-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization. PoE models provide power to VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices. Using CDP and LLDP, PoE power is intelligently budgeted to maximize the number of PoE clients supported.

Application Layer Visibility

The Meraki MS355-48X Nigeria includes integrated Layer 7 fingerprinting without the need to purchase additional modules or services. Identify hundreds of applications from business apps to BitTorrent and YouTube. User fingerprinting allows administrators to quickly identify individual users by device and tune network resources for optimum performance.

Network Software Architecture

Meraki switches run the same operating system used by all of our products, which allows us to deliver a consistent user experience for network management. When connected, Meraki MS355-48X Nigeria automatically reach out to the Meraki cloud and download the most current configuration. Future updates can be user-scheduled, ensuring the network is kept up-to-date with bug fixes, security updates, and new features.

Specifications

Interfaces
  • 16 × 100M/1/2.5/5/10G Ethernet RJ45
  • 32 × 1G Ethernet RJ45
  • 4 × 10G SFP+
  • 2 × 40G QSFP+ uplinks
  • 2 × 100G QSFP28 stacking ports
  • Auto negotiation and crossover detection
Management
  • Managed via the Web with the Meraki cloud management platform
  • Integrated with Meraki Wireless and complete portfolio of IT products and solutions
  • Zero-touch remote provisioning (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • Operating system, device, and hostname fingerprinting
  • SNMP and SYSLOG support for integration with other network management solutions
  • Automatic firmware upgrades with scheduling control
Remote Diagnostics
  • Email, SMS and Mobile push notification alerts
  • Ping, traceroute, cable testing, and link failure detection with alerting
  • Remote packet capture
  • Dynamic and interactive network discovery and topology
  • Combined event and configuration change logs with instant search
Scalable Stacking
  • Physical stacking of up to 8 switches with 400 Gbps stacking bandwidth on all models
  • Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet Switching Capabilities
  • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
  • 802.1Q VLAN and trunking support for up to 4,094 VLANs
  • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
  • STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
  • Broadcast storm control
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
  • Port mirroring
  • IGMP snooping for multicast filtering
  • MAC forwarding entries : 32K
Security
  • Integrated multi-factor authentication for Dashboard management
  • Role-based access control (RBAC) with granular device and configuration control
  • Corporate-wide password policy enforcement
  • IEEE 802.1X RADIUS and MAB, hybrid authentication, and RADIUS server testing
  • Single-Host/Multi-Domain/Multi-Host/Multi Authentication
  • Port security : Sticky MAC, MAC whitelisting
  • DHCP snooping, detection and blocking, Dynamic ARP Inspection
  • IPv4 and IPv6 ACLs
Performance
  • Switching capacity : 544 Gbps
  • Forwarding rate : 405 mpps
  • Jumbo frame support (9600 byte Ethernet frame)
  • Flow control support
Layer 3
  • Static routing, OSPFv2
  • Multicast routing
  • Warm spare (VRRP)
  • DHCP Relay, DHCP Server
Power
  • Power input : 100-240 VAC, 47-63 Hz
  • Power consumption : 110-1793 W max
  • 48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+/UPoE) available on all ports (maximum of 60W per port for UPoE) for powered switches
Mounting
  • 1U rack-mountable with included rack mount hardware
  • 4 post rack mount support
Environment
  • Operating temperature : 0°C to 45°C
  • Humidity : 5 to 95% non-condensing
  • Variable speed fans
Regulatory
  • CSA-US (US, Canada)
  • FCC (USA)
  • IC (Canada)
  • CE (Europe)
  • RCM (Australia/New Zealand)
  • RoHS
Physical Specifications (HxWxD)
  • 1.72” × 19.08” × 20.34” (4.37cm × 48.46cm × 51.66cm)
  • 13.00 lb (5.90 kg)
MTBF (at 25°C) 343,134
Warranty Full lifetime hardware warranty with next-day advanced replacement included
