Meraki Ms355 48 Nigeria

Meraki MS355-48 Nigeria

Rating

Meraki MS355-48 Nigeria

Meraki MS355-48 Nigeria offers a broad range of switches, built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in traditional enterprise-class switches.

Category:

Description

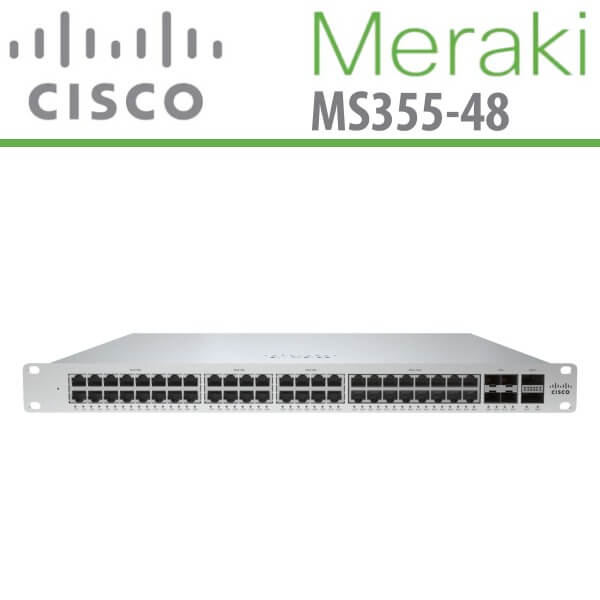

Meraki MS355-48 Network Switch Nigeria

Meraki MS355-48 Nigeria offers a broad range of switches, built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in traditional enterprise-class switches. This Meraki MS355-48 Nigeria aggregation switch is managed through an elegant, intuitive cloud interface, freeing administrators to spend less time on configuration and more time on meeting business needs.

To set up this Meraki Network Switch Nigeria, just plug it in; there is no need for repetitive, command-based configuration, and switches can be up and running within minutes of connecting them to the network. A powerful centralized management interface gives administrators deep visibility into the network and how it is used. See which switches are near capacity across hundreds of sites. Quickly provision and reconfigure switch ports with security, QoS, and more. The Meraki MS355-48 Nigeria Meraki dashboard provides unified policies, event logs, and monitoring.

Features

  • Range of enterprise switching options built on proven Cisco hardware technologies
  • Basic L2 to high-performance L3 switches with 10GbE uplinks, suitable for deployments of all sizes
  • True zero-touch configuration model that scales with organization needs and requirements
  • Integrated troubleshooting tools, logging and alerting reduce operational costs
  • Energy efficient design with low acoustics and fanless options
  • Flexible stacking for scaled configuration and high performance in one
  • Cloud management reduces cost, overhead and time to resolution
  • Industry-standard features allow for simple integration into existing and mixed infrastructures
  • Role-based administration and automatic, secure firmware updates delivered via the web

Centrally Managed

Meraki MS355-48 Nigeria is cloud managed with benefits that make it easier to build networks large and small:

  • Automatic email alerts from power loss, downtime, excessive Layer 1 errors, or configuration changes
  • Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues
  • Role-based administration
  • Firmware upgrades and enhancements from the Meraki cloud
  • Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
  • Incredible network transparency with application, operating system, client, and hostname visibility
  • Zero-touch provisioning for rapid deployment across sites

Powerful Access Switching

  • High-bandwidth physical stacking with support for up to 8 stack members for built-in redundancy and performance
  • Link Aggregation Control Protocol (LACP) for high-capacity trunking, with Multichassis (MLAG) support on stacked switches
  • Static and dynamic routing support with DHCP relay and server capabilities
  • Quality-of-Service (QoS) to prioritize mission-critical traffic such as voice and video
  • Voice VLAN support for simplified VoIP deployments
  • CDP, LLDP advertisement and snooping, with detailed neighbor visibility and discovery
  • Port Mirroring to monitor network traffic
  • IGMP Snooping to optimize network performance for multicast applications

Network Security

  • IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
  • ACL support (IPv4 & IPv6) and MAC whitelisting
  • Single-Host/Multi-Domain/Multi-Host/Multi Authentication
  • Change of Authorization (CoA) and RADIUS accounting support
  • DHCP snooping to protect against rogue DHCP servers on the network
  • Dynamic ARP Inspection to prevent man-in-the-middle attacks
  • Rapid Spanning Tree, BPDU guard, root guard, loop guard, and other safeguards to help prevent misconfigurations and reduce convergence time
  • Per port VLAN configuration
  • Multiple administrative roles with sophisticated security policy management

Network Troubleshooting & Automation

  • Virtual Stacking helps IT admins make configuration changes to hundreds of switch ports in seconds with our intuitive dashboard interface
  • Configuration templates for rapid, zero-touch provisioning and auditing of all sites
  • Network Topology for automatic and interactive network mapping
  • Remote cable testing, packet capture, and client discovery
  • Automatic and scheduled firmware upgrades for the complete network

Converged Voice, Video and Data Environments

The Meraki MS355-48 Nigeria is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich quality of-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization. PoE models provide power to VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices. Using CDP and LLDP, PoE power is intelligently budgeted to maximize the number of PoE clients supported. For the most power-hungry applications, support for UPoE support is also available.

Application Layer Visibility

Meraki MS355-48 Nigeria includes integrated Layer 7 fingerprinting without the need to purchase additional modules or services. Identify hundreds of applications from business apps to BitTorrent and YouTube. User fingerprinting allows administrators to quickly identify individual users by device and tune network resources for optimum performance.

Beyond the Network Software Architecture

Meraki switches run the same operating system used by all of our products, which allows us to deliver a consistent user experience for network management. When connected, new Meraki MS355-48 Nigeria automatically reach out to the Meraki cloud and download the most current configuration. Future updates can be user-scheduled, ensuring the network is kept up-to-date with bug fixes, security updates, and new features.

Specifications

  • Interfaces
    • 24 × 100M/1/2.5/5/10G Ethernet RJ45
    • 24 × 1G Ethernet RJ45
    • 4 × 10G SFP+
    • 2 × 40G QSFP+ uplinks
    • 2 × 100G QSFP28 stacking ports
    • Auto negotiation and crossover detection
  • Management
    • Managed via the web with the Meraki cloud management platform
    • Integrated with Meraki Wireless and complete portfolio of IT products and solutions
    • Zero-touch remote provisioning (no staging needed)
    • Detailed historical per-port and per-client usage statistics
    • Operating system, device and hostname fingerprinting
    • SNMP and SYSLOG support for integration with other network management solutions
    • Automatic firmware upgrades with scheduling control
  • Remote Diagnostics
    • Email, SMS and Mobile push notification alerts
    • Ping, traceroute, cable testing and link failure detection with alerting
    • Remote packet capture
    • Dynamic and interactive network discovery and topology
    • Combined event and configuration change logs with instant search
  • Stacking
    • Physical stacking of up to 8 switches with 400 Gbps stacking bandwidth on all models
    • Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring and configuration
  • Ethernet Switching Capabilities
    • 1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
    • 1Q VLAN and trunking support for up to 4,094 VLANs
    • 1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
    • STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
    • Broadcast storm control
    • 1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
    • 3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
    • Port mirroring
    • IGMP snooping for multicast filtering
  • Security
    • Integrated multi-factor authentication for Dashboard management
    • Role-based access control (RBAC) with granular device and configuration control
    • Corporate-wide password policy enforcement
    • IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing
    • Single-Host/Multi-Domain/Multi-Host/Multi Authentication
    • Port security: Sticky MAC, MAC whitelisting
    • DHCP snooping, detection and blocking, Dynamic ARP Inspection
    • IPv4 and IPv6 ACLs
  • Performance
    • Switching capacity: 688 Gbps
    • Forwarding rate: 512 mpps
    • Jumbo frame support (9,600 byte Ethernet frame)
    • Flow control support
  • Layer 3
    • Static routing, OSPFv2
    • Multicast routing
    • Warm spare (VRRP)
    • DHCP Relay, DHCP Server
  • Power
    • Power input: 100-240 VAC, 47-63 Hz
    • Power consumption: 110-1793 W max
    • 48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+/UPoE) available on all ports (maximum of 60W per port for UPoE) for powered switches
  • Mounting
    • 1U rack-mountable with included rack mount hardware
    • 4-post rack-mount support
  • Environment
    • Operating temperature: 0 °C to 45 °C
    • Humidity: 5 to 95% non-condensing
    • Variable speed fans
  • Regulatory
    • CSA-US (US, Canada)
    • FCC (USA)
    • IC (Canada)
    • CE (Europe)
    • RCM (Australia/New Zealand)
    • RoHS
  • Warranty
    • Full lifetime hardware warranty with next-day advanced replacement included
  • MTBF (at 25 °C)
    • MSMS355-48X2-HW: 330,228
  • Physical Specifications (H × W × D)
    • MSMS355-48X2-HW
      • 37cm × 48.46cm × 51.66 cm (1.72” × 19.08” × 20.34”)
      • 96 kg (13.14 lb)
