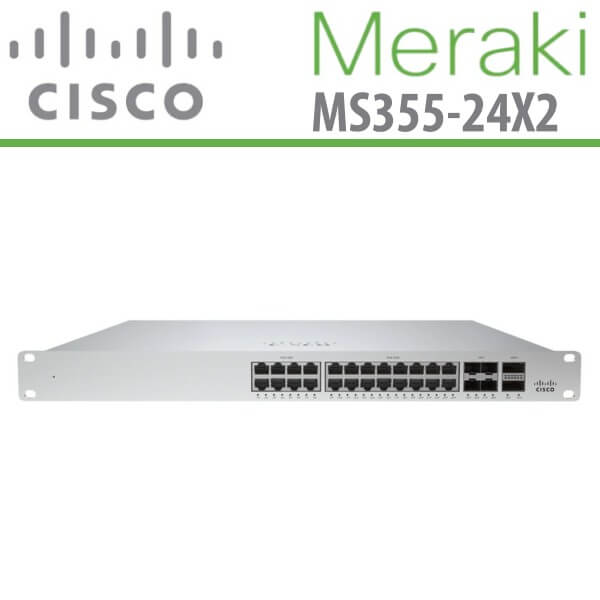

Meraki MS355-24X2 Nigeria

Rating

Meraki MS355-24X2 Nigeria

The Meraki MS355-24X2 Nigeria has 24 x mGig ports featuring a high mGig port density for 802.11ax wireless access points, servers, and workstations. The full 10G multi-gigabit (mGig) access switching is ideal for demanding enterprise and campus environments.

Category:

Description

Meraki MS355-24X2 Network Switch Nigeria

The Meraki MS355-24X2 Nigeria has 24 x mGig ports featuring a high mGig port density for 802.11ax wireless access points, servers, and workstations. The full 10G multi-gigabit (mGig) access switching is ideal for demanding enterprise and campus environments. The family supports 40G or 10G uplinks, physical stacking, up to 60W of port power with UPoE, and field replaceable power supplies/fans. Meraki’s centralized management platform gives administrators granular visibility into their network. The dashboard helps you keep track of every configuration change in your network with detailed event and change logs.

This Meraki Network switch Nigeria is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich quality of-service (QoS) functionality for prioritizing data, voice, and video traffic. The Meraki MS355-24X2 Nigeria switch supports eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization.  PoE models provide power to VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices. Using CDP and LLDP, PoE power is intelligently budgeted to maximize the number of PoE clients supported. For the most power-hungry applications, support for UPoE support is also available.

Features

Centralized Cloud Management

The Meraki Cloud Networking architecture enables Plug and Play branch deployments and provides centralized visibility and control across any number of distributed locations. The Meraki MS is the industry’s cloud managed switch, combining the benefits of cloud-based centralized management with a powerful, reliable access platform. With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.

Layer 7 application and client visibility

Meraki MS355-24X2 Nigeria features integrated Layer 7 application and client fingerprinting and analysis. Hundreds of applications are automatically identified and reported, from business apps to BitTorrent and YouTube, so administrators can see where resources are spent.

QoS for voice and video

Meraki MS355-24X2 Nigeria deploy latency-sensitive applications such as voice and video by guaranteeing network performance. Voice and QoS features such as per-VLAN and protocol-based prioritization, as well as flexible QoS assignments, give intuitive, granular control.

Enterprise security

Extending security down to the port level has never been easier. Meraki MS355-24X2 Nigeria integrate seamlessly with enterprise-grade security systems using 802.1x. Define access policies, segregate guest devices, and quarantine entire environments right from the dashboard.

Specification

General
Device Type Switch – 24 ports – L3 – managed – stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 8 x 1/2.5/5/10GBase-T + 16 x 10/100/1000 + 4 x 10 Gigabit SFP+ + 2
Performance
  • Switching capacity : 272 Gbps
  • Forwarding rate : 202.38 Mpps
Capacity Tagged VLANs : 4096
MAC Address Table Size 512K entries
Jumbo Frame Support 9600 bytes
Max Units In A Stack 8
Routing Protocol IGMP, VRRP, OSPFv2, static IP routing
Remote Management Protocol SNMP
Authentication Method RADIUS
Features
  • Flow control
  • Auto-negotiation
  • ARP support
  • VLAN support
  • Syslog support
  • Port mirroring
  • E-mail alert
  • Broadcast Storm Control
  • Spanning Tree Protocol (STP) support
  • Rapid Spanning Tree Protocol (RSTP) support
  • DHCP server
  • SMS alert
  • Dynamic ARP Inspection (DAI)
  • Uni-Directional Link Detection (UDLD)
  • LLDP support
  • DHCP relay
  • Static routing
  • Crossover detection
  • Bridge protocol data unit (BPDU)
  • Role-Based Access Control (RBAC)
  • Push notification,
  • Root Guard
  • Loop Guard
Expansion / Connectivity
Interfaces
  • 8 x 100/1000/2.5G/5G/10GBase-T RJ-45
  • 16 x 1000Base-T RJ-45
  • 4 x 10Gbit LAN SFP+ uplink
  • 2 x stacking
Power
Power Device Internal power supply – hot-plug
Power Provided 370 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 867 Watt
Miscellaneous
Rack Mounting Kit Included
MTBF 321,515 hours
Compliant Standards CSA, C-Tick, IC, RoHS
Dimensions & Weight
Width 19.1 in
Depth 23.4 in
Height 1.7 in
Weight 14.55 lbs
Manufacturer Warranty
Service & Support Limited warranty – replacement – lifetime – response time: next day
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 – 95% (non-condensing)
