Description

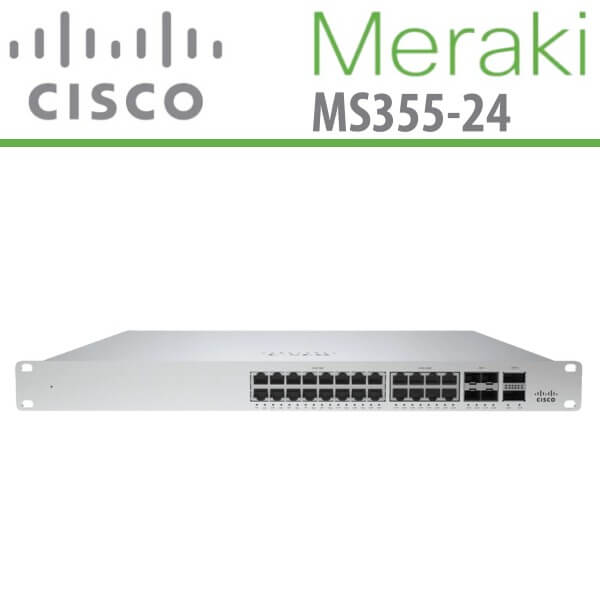

Meraki MS355-24 Network Switch Nigeria

The Meraki MS355-24 Nigeria is cloud managed multi-gigabit switch line designed to help prepare organizations for the increased bandwidth requirements of the upcoming 802.11ax wireless standard. This Network Switch is equipped with high-count mGig switch ports and increased switching capacity to meet the demands of next generation access points. Networks with sizeable wireless deployments such as universities, hospitals, and large public complexes like transportation centers can all benefit from the increased bandwidth capabilities of the MS355-24.

Meraki MS355-24 Nigeria provides a complete, robust set of management functions over the web. Meraki’s cloud-based management eliminates the need for proprietary command line configuration interfaces which require expensive and time-consuming certifications. Meraki MS355-24 Nigeria can be fully deployed and provisioned in minutes without local configuration or staging. New switches can be sent to remote offices and installed by non-technical staff, saving thousands of dollars in time and travel expenses.

Features

Simple Cloud Management

Meraki MS355-24 Nigeria is cloud management with many benefits that make it easier to build networks large and small:

Automatic email alerts from power loss, downtime, excessive Layer 1 errors, or configuration changes Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues
Role-based administration
Firmware upgrades and enhancements from the Meraki cloud
Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
Incredible network transparency with application, operating system, client, and hostname visibility
Zero-touch provisioning for rapid deployment across sites

Powerful Access Switching

High-bandwidth physical stacking with support for up to 8 stack members for built-in redundancy and performance
Link Aggregation Control Protocol (LACP) for high-capacity trunking, with Multichassis (MLAG) support on stacked switches
Static and dynamic routing support with DHCP relay and server capabilities
Quality-of-Service (QoS) to prioritize mission-critical traffic such as voice and video
Voice VLAN support for simplified VoIP deployments
CDP, LLDP advertisement and snooping, with detailed neighbor visibility and discovery
Port Mirroring to monitor network traffic
IGMP Snooping to optimize network performance for multicast applications

Network Security

IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
ACL support (IPv4 & IPv6) and MAC whitelisting
Single-Host/Multi-Domain/Multi-Host/Multi Authentication
Change of Authorization (CoA) and RADIUS accounting support
DHCP snooping to protect against rogue DHCP servers on the network
Dynamic ARP Inspection to prevent man-in-the-middle attacks
Rapid Spanning Tree, BPDU guard, root guard, loop guard, and other safeguards to help prevent misconfigurations and reduce convergence time
Per port VLAN configuration
Multiple administrative roles with sophisticated security policy management

Network Troubleshooting & Automation

Virtual Stacking helps IT admins make configuration changes to hundreds of switch ports in seconds with our intuitive dashboard interface
Configuration templates for rapid, zero-touch provisioning and auditing of all sites
Network Topology for automatic and interactive network mapping
Remote cable testing, packet capture, and client discovery
Automatic and scheduled firmware upgrades for the complete network

Converged Voice, Video and Data Environments

The Meraki MS355-24 Nigeria is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich quality of-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization. PoE models provide power to VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices. Using CDP and LLDP, PoE power is intelligently budgeted to maximize the number of PoE clients supported. For the most power-hungry applications, support for UPoE support is also available.

Application Layer Visibility

Meraki MS355-24 Nigeria includes integrated Layer 7 fingerprinting without the need to purchase additional modules or services. Identify hundreds of applications from business apps to BitTorrent and YouTube. User fingerprinting allows administrators to quickly identify individual users by device and tune network resources for optimum performance.

Beyond the Network Software Architecture

Meraki switches run the same operating system used by all of our products, which allows us to deliver a consistent user experience for network management. When connected, new Meraki MS355-24 Nigeria automatically reach out to the Meraki cloud and download the most current configuration. Future updates can be user-scheduled, ensuring the network is kept up-to-date with bug fixes, security updates, and new features.

Specifications

Interfaces	8 × 100M/1/2.5/5/10G Ethernet RJ45 16 × 1G Ethernet RJ45 4 × 10G SFP+ 2 × 40G QSFP+ uplinks 2 × 100G QSFP28 stacking ports Auto negotiation and crossover detection
Management	Managed via the Web with the Meraki cloud management platform Integrated with Meraki Wireless and complete portfolio of IT products and solutions Zero-touch remote provisioning (no staging needed) Detailed historical per-port and per-client usage statistics Operating system, device, and hostname fingerprinting SNMP and SYSLOG support for integration with other network management solutions Automatic firmware upgrades with scheduling control
Remote Diagnostics	Email, SMS and Mobile push notification alerts Ping, traceroute, cable testing, and link failure detection with alerting Remote packet capture Dynamic and interactive network discovery and topology Combined event and configuration change logs with instant search
Scalable Stacking	Physical stacking of up to 8 switches with 400 Gbps stacking bandwidth on all models Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet Switching Capabilities	802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping) 802.1Q VLAN and trunking support for up to 4,094 VLANs 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD Broadcast storm control 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches Port mirroring IGMP snooping for multicast filtering MAC forwarding entries : 32K
Security	Integrated multi-factor authentication for Dashboard management Role-based access control (RBAC) with granular device and configuration control Corporate-wide password policy enforcement IEEE 802.1X RADIUS and MAB, hybrid authentication, and RADIUS server testing Single-Host/Multi-Domain/Multi-Host/Multi Authentication Port security : Sticky MAC, MAC whitelisting DHCP snooping, detection and blocking, Dynamic ARP Inspection IPv4 and IPv6 ACLs
Performance	Switching capacity : 352 Gbps Forwarding rate : 262 mpps Jumbo frame support (9600 byte Ethernet frame) Flow control support
Layer 3	Static routing, OSPFv2 Multicast routing Warm spare (VRRP) DHCP Relay, DHCP Server
Power	Power input : 100-240 VAC, 47-63 Hz Power consumption : 110-1793 W max 48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+/UPoE) available on all ports (maximum of 60W per port for UPoE) for powered switches
Mounting	1U rack-mountable with included rack mount hardware 4 post rack mount support
Environment	Operating temperature : 0°C to 45°C Humidity : 5 to 95% non-condensing Variable speed fans
Physical Specifications (HxWxD)	1.72” × 19.08” × 20.34” (4.37cm × 48.46cm × 51.66cm) 12.30 lb (5.58 kg)
