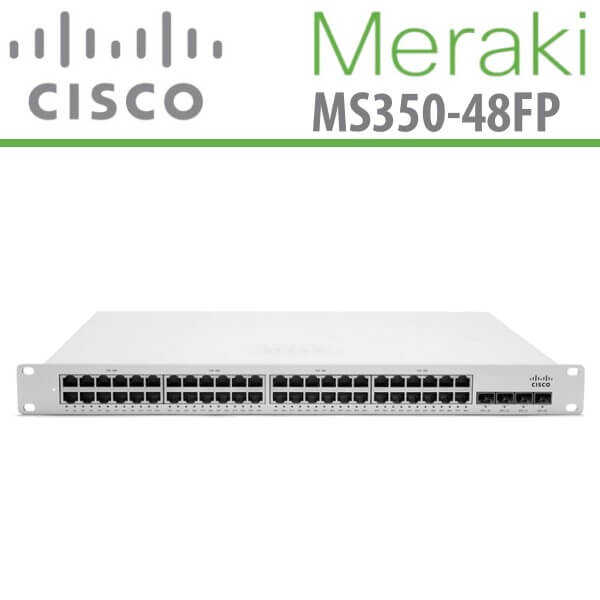

Meraki MS350-48FP Nigeria

The Meraki MS350-48FP Nigeria is Cloud-Managed Switch with 48 ports that help expand network capacity. The switch uses the OSPFv2, static IP routing, to enhance connectivity.

Category:

Description

Meraki MS350-48FP Network Switch Nigeria

The Meraki MS350-48FP Nigeria is Cloud-Managed Switch with 48 ports that help expand network capacity. The switch uses the OSPFv2, static IP routing, to enhance connectivity. With support for PoE technology, it eliminates unsightly cord clutter. The Meraki MS350-48FP cloud-managed switch is compatible with a broad range of standards, such as IEEE 802.1ab (LLDP) and IEEE 802.3ad (LACP). With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.

The Meraki MS350-48FP Nigeria switch provides reliable and high bandwidth access switching ideal for deploying large enterprise and campus networks. With high speed stacking capabilities and 10G SFP+ uplinks; redundancy and performance are guaranteed. Meraki MS350-48FP Nigeria also supports options for multi-gigabit, UPoE, redundant, field-replaceable power supplies for mission critical networks. The switch includes optional PoE/PoE+ support, highly scalable Layer 3 routing and modular power/fans for mission-critical networks. The MS350-48FP Meraki, a 48-port switch also comes with dual built-in fans, which expel hot air for optimal performance. It comes with mounting gear for quick setup.

Features

  • 48 x gigabit Ethernet PoE/PoE+ interfaces
  • 4 x 10G SFP+ uplink interfaces
  • Layer 3 access switching
  • High bandwidth dual stacking interfaces with up to 160G bandwidth
  • Support for field replaceable, redundant power supplies
  • Non-blocking switch backplane with 176 Gbps of switching capacity
  • 740 watt PoE budget with PoE+ support, dynamic power allocation for powering APs, phones, cameras, and other PoE enabled devices
  • 6 dedicated QoS queues for converged voice, video, and data applications
  • Low power consumption, quiet acoustic design, and shallow rack depth, enabling flexible deployment in wiring closets as well as offices and classrooms
  • Integrated mounting brackets for rack and desk mounting

Central Cloud Management

The Cisco Meraki Cloud Networking architecture enables Plug and Play branch deployments and provides centralized visibility and control across any number of distributed locations. The Meraki MS350-48FP Nigeria is cloud managed switch, combining the benefits of cloud-based centralized management with a powerful, reliable access platform.

Layer 7 application and client visibility

Meraki MS350-48FP Nigeria features an integrated Layer 7 application and client fingerprinting and analysis. Hundreds of applications are automatically identified and reported, from business apps to BitTorrent and YouTube, so administrators can see where resources are spent.

QoS for voice and video

With this Meraki Network Switch Nigeria, users can deploy latency-sensitive applications such as voice and video by guaranteeing network performance. Voice and QoS features such as per-VLAN and protocol-based prioritization, as well as flexible QoS assignments, give intuitive, granular control.

Enterprise security

Meraki MS350-48FP Nigeria integrate seamlessly with enterprise-grade security systems using 802.1x. Define access policies, segregate guest devices, and quarantine entire environments right from the dashboard.

Specifications

General
Device Type Switch – 48 ports – L3 – managed – stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 740 W
Performance Non-blocking switching capacity: 176 Gbps
Capacity Forwarding table entries: 96000 | Tagged VLANs: 4096
Jumbo Frame Support 9600 bytes
Routing Protocol OSPFv2, static IP routing
Remote Management Protocol SNMP 2c
Authentication Method RADIUS
Features
  • Auto-negotiation
  • Auto-uplink (auto MDI/MDI-X)
  • IGMP snooping
  • Port mirroring
  • E-mail alert
  • Broadcast Storm Control
  • Firmware upgradable
  • Spanning Tree Protocol (STP) support
  • Rapid Spanning Tree Protocol (RSTP) support
  • Access Control List (ACL) support
  • Quality of Service (QoS)
  • SMS alert
  • LLDP support
  • DHCP client
  • tagged VLAN
  • Crossover detection
Compliant Standards
  • IEEE 802.1D
  • IEEE 802.1Q
  • IEEE 802.1p
  • IEEE 802.3af
  • IEEE 802.3ad (LACP)
  • IEEE 802.1x
  • IEEE 802.1ab (LLDP)
  • IEEE 802.3at
Expansion / Connectivity
Interfaces
  • 48 x 1000Base-T RJ-45 PoE+ – 25.5 W
  • 4 x 10Gbit LAN SFP+ uplink
Power
Power Device Internal power supply – hot-plug
Installed Qty 1
Max Supported Qty 2
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 1025 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 885 Watt
Miscellaneous
Rack Mounting Kit Included
MTBF 516,000 hours
Compliant Standards CSA, C-Tick, IC, RoHS
Miscellaneous
Rack Mounting Kit Included
MTBF 516,000 hours
Compliant Standards CSA, C-Tick, IC, RoHS
Dimensions & Weight
Width 19.1 in
Depth 21.8 in
Height 1.7 in
Weight 14.99 lbs
Manufacturer Warranty
Service & Support Limited warranty – replacement – lifetime – response time: next day
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 – 95% (non-condensing)
