Meraki MS350-24P Nigeria

Rating

Meraki MS350-24P Nigeria

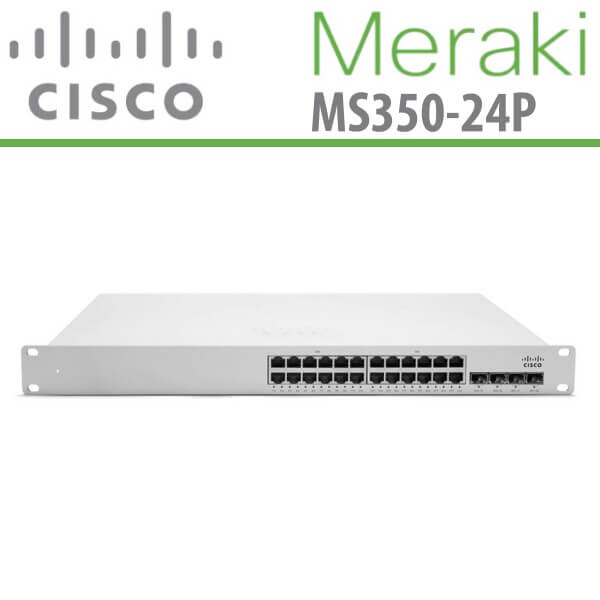

The Meraki MS350-24P Nigeria is a 24-port GbE 370W PoE/PoE+ cloud-managed stackable L3 enterprise-class access switch with four SFP+ uplinks and support for redundant power supplies for mission critical environments.

Category:

Description

Meraki MS350-24P Network Switch Nigeria

The Cisco Meraki MS350-24P Nigeria is a 24-port GbE 370W PoE/PoE+ cloud-managed stackable L3 enterprise-class access switch with four SFP+ uplinks and support for redundant power supplies for mission critical environments. The Meraki MS350-24P Nigeria includes integrated client and layer 7 application visibility, remote troubleshooting tools like live packet capture and cable test. This Meraki Network Switch is fully cloud-managed via the intuitive, browser-based Meraki dashboard, and includes a rich, out-of-the-box feature set without additional cost and complexity.

The Meraki MS350-24P Nigeria is a switch that can provide reliable and high bandwidth access switching ideal for deploying in campus networks. With high-speed stacking capabilities and 10G SFP+ uplinks built in on every model, redundancy and performance are guaranteed. Meraki MS350-24P Nigeria also supports options for multi-gigabit, UPoE, redundant, field-replaceable power supplies for mission-critical networks. Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.

Features

  • Gigabit access switching with 24- and 48- port models and optional PoE+ support
  • Multi-gigabit access switch model with 24-ports and UPoE for 802.11ac Wave 2 access points and other high bandwidth applications
  • 4 x 10G SFP+ uplink interfaces on all models
  • Dual stacking interfaces with up to 160G of bandwidth
  • Support for field replaceable, redundant power supplies
  • Non-blocking switch backplane with up t0 272 Gbps of switching capacity
  • 6 configurable QoS queues for converged voice, video, and data applications
  • Low power consumption, quiet acoustic design, and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms
  • Integrated mounting brackets for rack mounting
  • Lifetime hardware warranty and advanced replacement at no additional cost

Centrally managed from the cloud

The Meraki Cloud Networking architecture easy deployment and provisioning of Meraki MS350-24P Nigeria. Plug and Play branch deployments and provides centralized visibility and control across any number of distributed locations. The Meraki MS350-24p is the industry’s cloud managed switch, combining the benefits of cloud-based centralized management with a powerful, reliable access platform. With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.

Layer 7 application and client visibility

Meraki MS350-24P Nigeria features integrated Layer 7 application and client fingerprinting and analysis. Hundreds of applications are automatically identified and reported, from business apps to BitTorrent and YouTube, so administrators can see where resources are spent.

QoS for voice and video

Deploy latency-sensitive applications such as voice and video by guaranteeing network performance. Voice and QoS features such as per-VLAN and protocol-based prioritization, as well as flexible QoS assignments, give intuitive, granular control.

Enterprise security

Extending security down to the port level has never been easier. Meraki MS350-24P Nigeria integrate seamlessly with enterprise-grade security systems using 802.1x. Define access policies, segregate guest devices, and quarantine entire environments right from the dashboard.

Specifications

Device Type Switch – 24 ports – L3 – managed – stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 370 W
Performance Non-blocking switching capacity : 128 Gbps
Capacity
  • Forwarding table entries : 96000
  • Tagged VLANs : 4096
Jumbo Frame Support 9600 bytes
Routing Protocol OSPFv2, static IP routing
Remote Management Protocol SNMP 2c
Authentication Method RADIUS
Features
  • Auto-negotiation
  • Auto-uplink (auto MDI/MDI-X)
  • IGMP snooping
  • Port mirroring
  • E-mail alert
  • Broadcast Storm Control
  • Firmware upgradable
  • Spanning Tree Protocol (STP) support
  • Rapid Spanning Tree Protocol (RSTP) support
  • Access Control List (ACL) support
  • Quality of Service (QoS)
  • SMS alert
  • LLDP support
  • DHCP client
  • tagged VLAN
  • Crossover detection
Compliant Standards
  • IEEE 802.1D
  • IEEE 802.1Q
  • IEEE 802.1p
  • IEEE 802.3af
  • IEEE 802.3ad (LACP)
  • IEEE 802.1x
  • IEEE 802.1ab (LLDP)
  • IEEE 802.3at
Expansion / Connectivity
Interfaces
  • 24 x 1000Base-T RJ-45 PoE+ – 25.5 W
  • 4 x 10Gbit LAN SFP+ uplink
Power
Power Device Internal power supply – hot-plug
Installed Qty 1
Max Supported Qty 2
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 640 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 466 Watt
Miscellaneous
Rack Mounting Kit Included
MTBF 568,000 hours
Compliant Standards CSA, C-Tick, IC, RoHS
Dimensions & Weight
Width 19.1 in
Depth 20.3 in
Height 1.7 in
Weight 13.23 lbs
Manufacturer Warranty
Service & Support Limited warranty – replacement – lifetime – response time: next day
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 – 95% (non-condensing)
Country of Origin
Country of Origin TW
