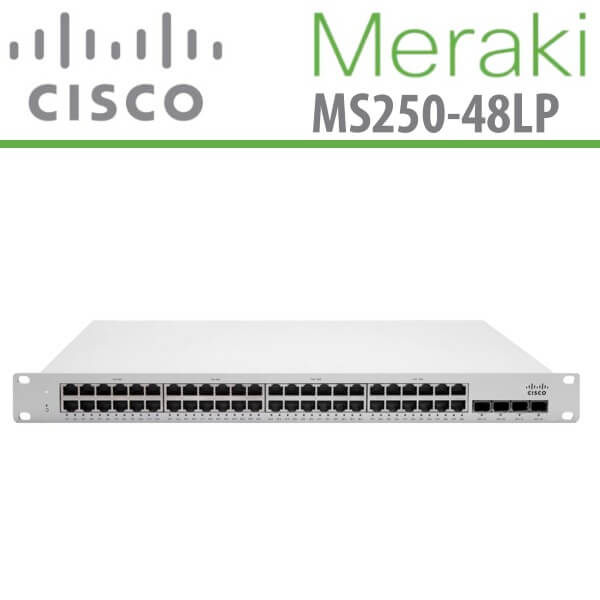

Meraki MS250-48LP Nigeria

Rating

Meraki MS250-48LP Nigeria

The Meraki MS250-48LP Nigeria is Cloud Managed Stackable Access Switch with stacking capabilities and 10G SFP+ uplinks, redundancy and performance is guaranteed. It provides reliable access switching ideal for deploying in branches and small campuses.

Category:

Description

Meraki MS250-48LP Network Switch Nigeria

The Meraki MS250-48LP Nigeria is Cloud Managed Stackable Access Switch with stacking capabilities and 10G SFP+ uplinks, redundancy and performance is guaranteed. It provides reliable access switching ideal for deploying in branches and small campuses. This Meraki Network Switch Nigeria also supports redundant, field-replaceable power supplies for mission critical networks. Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.

The Meraki MS250-48LP Nigeria is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. Setting up Meraki Switch does require complicated configuration files, or even direct physical access to the switch. Moreover, Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites and also all configuration changes made by a certain person with instant search.

Features

Cloud Management Benefits

  • True zero-touch device provisioning
  • Virtual stacking: manage up to thousands of ports from a single pane of glass.
  • Application layer visibility with automatic operating system, client, and hostname fingerprinting.
  • Powerful Live Tools such as packet capture and cable test to isolate and troubleshoot network issues.
  • Alerts upon power loss, downtime, or configuration changes.
  • Role-based administration and automatic, scheduled firmware upgrades over the web.
  • Regular feature updates and enhancements delivered on demand from the Meraki cloud.

Campus Access

  • Physical stacking with support for up to 8 stack members for built-in redundancy and performance
  • Static and dynamic routing support with DHCP relay and server capabilities
  • Quality-of-Service (QoS) to prioritize mission critical traffic such as voice and video
  • Voice VLAN support for simplified VoIP deployments
  • CDP, LLDP advertisement and snooping, with detailed neighbor visibility
  • Port Mirroring to monitor network traffic
  • IGMP Snooping to optimize network performance for multicast applications
  • Link Aggregation Control Protocol (LACP) for high-capacity trunking, with Multi-chassis (MLAG) support on stacked switches

Network Security

  • IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
  • Port security and MAC whitelisting
  • Change of Authorization (CoA) and RADIUS accounting support
  • DHCP snooping to prevent users from adding unauthorized DHCP servers on the network
  • Rapid spanning tree, BPDU guard, root guard, and other safeguards to help prevent misconfigurations and reduce convergence time
  • Per port VLAN configuration
  • Multiple administrative roles with sophisticated security policy management

Network Troubleshooting & Automation

  • Virtual Stacking lets administrators manage up to thousands of ports in a single interface without having to physically connect stack members
  • Configuration templates for rapid, zero-touch provisioning and auditing of all sites
  • Network Topology for automatic and interactive network mapping
  • Remote cable testing, packet capture and client discovery
  • Automatic and scheduled firmware upgrades for the complete network

Converged Voice, Video and Data Environments

The Meraki MS250-48LP Nigeria is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich quality of-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization. PoE models provide power VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices. In addition, using CDP and LLDP, PoE power is intelligently budgeted to maximize the number of PoE clients supported. For the most power-hungry applications, support for Cisco UPoE is also available. The Meraki MC products work flawlessly with Meraki switches, and create a unique and powerful experience to installing, supporting and troubleshooting VoIP technology

Application Layer Visibility

Cisco Meraki MS250-48LP Nigeria include integrated Layer 7 fingerprinting. Identify hundreds of applications from business apps to BitTorrent and YouTube. User fingerprinting with Google-like search allows administrators to easily identify and control individual users, PCs, iMacs, iPads, Androids, and other devices. This unprecedented visibility allows optimizing of network resources and maintaining optimal network performance.

Unified Software Architecture

The use of a common operating system by Meraki Switches allows Meraki MS250-48LP Nigeria to deliver a consistent experience across all product lines. When connected, Meraki MS250-48LP Nigeria automatically connect to the Meraki cloud, download configuration, and join the appropriate network. If new firmware is required, this is retrieved by the switch and updated automatically. This ensures the network is kept up-to date with bug fixes, security updates, and new features.

Specifications

Interface
  • 48 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
  • 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on MS250-24P, available on all ports (maximum of 30W per port for PoE+)
  • 4 × SFP+ 10 Gigabit Ethernet interfaces for uplink
  • 2 × Stacking interfaces
  • Auto negotiation and crossover detection
Management
  • Managed via the cloud using the Meraki dashboard
  • Integrated with Meraki Wireless and complete portfolio of IT products and solutions
  • No-touch remote deployment (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • DHCP, client, and hostname fingerprinting
  • SNMP and SYSLOG support for integration with other network management solutions
  • Seamless over-the-web firmware upgrades with scheduling & control
Remote diagnostics
  • Email, SMS and Mobile push notification alerts
  • Cable testing and link failure detection with alerting
  • Live remote packet capture
  • Dynamic and interactive network discovery and topology
  • Aggregated event logs with instant search
Flexible stacking
  • Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models
  • Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet switching capabilities
  • 802.1p Quality of Service prioritization
  • 802.1Q VLAN tagging with 4,095 addressable tags
  • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
  • Broadcast storm control
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
  • IGMP snooping for multicast filtering
  • MAC forwarding entries : 16K on 24-port models, 32K on 48-port models
Security
  • Integrated two-factor authentication for Dashboard management
  • Role-based access control (RBAC) with granular device and configuration control
  • Corporate wide password policy enforcement
  • IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing
  • MAC-based RADIUS authentication (MAB)
  • Port security : Sticky MAC, MAC whitelisting
  • DHCP snooping, detection and blocking
  • STP Enhancements : BPDU guard, Root guard
  • IPv4 ACLs
Power over Ethernet
  • 802.3af (PoE) 15.4 W per port and 802/.3at (PoE+) 25.5 W per port
  • Maximum PoE output (48LP/48FP): 370 / 740 W
  • PoE available on all ports simultaneously
Performance
  • Non-blocking switching fabric
  • Switching capacity: 128Gbps (24-port models), 176Gbps (48-port models)
  • Forwarding rate (mpps): 95.24 (24-port models), 127.98 (48-port models)
  • Jumbo frame support (9600 byte Ethernet frame)
  • Flow control support
Layer 3
  • Static Routing
  • DHCP Relay
Power
  • Power input : 100 – 240 VAC, 47-63 Hz
  • Power consumption : 24 – 874 W
  • RPS interface : Requires RPS-2300 chassis
Mounting
  • 1U Rack-mountable with included rack mount hardware
  • 2-post front mounting options available
Environment
  • Operating temperature : 32°F to 104°F (0°C to 40°C)
  • Humidity : 5 to 95% non-condensing
  • MS225-24, MS250-48LP feature fanless operation
Regulatory
  • CSA-US (US, Canada)
  • FCC (USA)
  • IC (Canada)
  • CE (Europe)
  • RCM (Australia/New Zealand)
  • RoHS
